   Proliant BL20p G3 QuickSpecs  US QuickSpecs
  BL20p G3 Hard Drives   BL20p G3 Processors   BL20p G3 Memory
  BL20p G3 Controllers   BL20p G3 Networking   BL20p G3 Power Supplies
  BL20p G3 Quickspecs   BL20p G3 Quickspecs-Options   BL20p G3 Options
contents
 Overview      Standard Features      Models      Configuration Information Factory Integrated Models (North America only)      BL20p G3 Options      BL20p G3 Memory      BL20p G3 QuickSpecs images/line.gif (50 bytes)

Proliant BL20p G3 Overview

HP ProLiant BL20p Generation 3 (G3) Server Blade

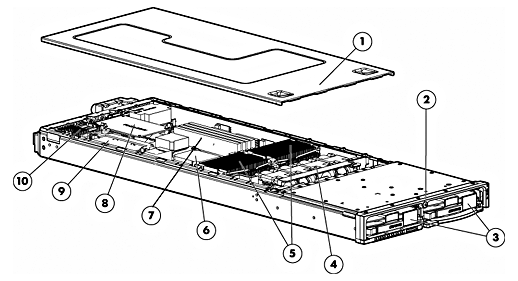

HP ProLiant BL20p G3 Server Blade
1.
Access panel
6.
Smart Array 6i Controller
2.
Power On/Standby button
7.
Four (4) PC2-3200 DDR2 Memory slots
3.
Support for up to two U320 SCSI hard drives
8.
Fibre-channel mezzanine card (Optional)
4.
Fan Assembly for chassis cooling
9.
Battery-backed write cache (Optional)
5.
Up to two single-core or dual-core Intel Xeon processors with
800 MHz FSB
10.
Power converter modules

What's New
  • Up to 2 Intel® Xeon™ dual-core 2.80 GHz processor with 4MB cache, EM64T, 800 MHz FSB
  • Support for Intel Xeon X2.8-2MB/800 MHz DC Processor Option Kit

At A Glance

This document covers the HP ProLiant BL20p G3 server blade only. For more information on HP BladeSystems p-Class Infrastructure and HP BladeSystem p-Class Interconnect Components, please see the following QuickSpecs:
HP BladeSystem p-Class Infrastructure QuickSpecs:
http://h18000.www1.hp.com/products/quickspecs/12330_div/12330_div.HTML

and HP BladeSystem p-Class Interconnect Components QuickSpecs: http://h18000.www1.hp.com/products/quickspecs/12331_div/12331_div.HTML

  • Performance dual processor server blade designed with enterprise availability
  • HP ProLiant BL20p Generation 3 server blade includes:
    • Up to two 64-bit Intel® Xeon™ dual-core processors: 2.8GHz, or
    • Up to two 64-bit Intel Xeon single-core processors: 2.8GHz, 3.0GHz, 3.2 GHz, 3.4 GHz, 3.6 GHz or 3.8 GHz with 1MB or 2MB cache depending on processor
    • Intel E7520 Chipset
    • 1024 MB or 2048 MB PC2-3200 Registered ECC 400 MHz DDR2 memory standard, (2 x 1 Interleaved Memory), expandable to 8 GB maximum
    • Four NC7781 PCI-X Gigabit NICs (embedded)
    • One additional 10/100 NIC dedicated to iLO Management
    • Smart Array 6i (integrated on system board Controller with optional battery-backed write cache)
    • Ultra320 SCSI Drive Cage standard; supports up to two 1" Ultra320 SCSI hot plug hard drives
  • New Power Regulator for ProLiant delivering server level, policy based power management with industry leading energy efficiency and savings on system power and cooling costs.
  • Integrated Lights-Out featuring new firmware v 1.70 with support for Power Regulator for ProLiant and introducing support for the draft DMTF System Management Architecture for Server Hardware Command Line Protocol standard
  • Dual-Port Fibre Channel Adapter (2-Gb) option for SAN connectivity
  • Emulex-based Fibre Channel Mezzanine card for HP p-Class BladeSystem
  • HP ProLiant BL20p server blade plugs vertically into 6U enclosure
  • I/O cable with two USB ports, one video port, one iLO port and kernel debug port. The cable was specifically designed to aid in initial server image deployment.
  • Integrated Access Tool for blade management and enhanced server blade documentation including Best Practices and Common Procedures guides
  • Protected by HP Services and a worldwide network of resellers and service providers. Three-year parts, 3 Year Labor and 3 Year on-site limited global warranty. Certain restrictions and exclusions apply. Pre-Failure Notification on processors, memory, and SCSI hard drives
contents
 Overview      Standard Features      Models      Configuration Information Factory Integrated Models (North America only)      BL20p G3 Options      BL20p G3 Memory      BL20p G3 QuickSpecs images/line.gif (50 bytes)

Standard Features

Processor Dual-Core Intel Xeon processor 2.8 GHZ/800MHz - 4MB
Single-Core Intel Xeon processor 3.8 GHz/800MHz - 2MB
Single-Core Intel Xeon processor 3.4 GHz/800MHz - 2MB
Single-Core Intel Xeon processor 3.2 GHz/800MHz - 2MB
Single-Core Intel Xeon processor 3.0 GHz/800MHz - 2MB (Low Voltage)
Single-Core Intel Xeon processor 3.6 GHz/800MHz - 1MB
Single-Core Intel Xeon processor 3.4 GHz/800MHz - 1MB
Single-Core Intel Xeon processor 3.2 GHz/800MHz - 1MB
Single-Core Intel Xeon processor 2.8 GHz - 1MB (Low-Voltage)

Upgradeability Upgradeable to dual processing (2 Processors)
NOTE: Single-Core Models are not upgradeable to Dual-Core Models.

Cache Memory
1MB Level 2 Cache, Single-Core (Depending on model)
2MB Level 2 Cache, Single- Core (Depending on model)
4MB Level 2 Cache, Dual-Core, (Depending on model)

Chipset Intel E7520 chipset

Memory Type 2-way interleaved PC3200 DDR2 SDRAM running at 400 MHz
Standard 1024 MB
(On 1P models)
2048 MB
(On 2P models)
Maximum 8 GB
NOTE: Memory must be installed in pairs.

Network Adapter Five network adapters total:
Four NC7781 PCI-X Gigabit NICs (embedded) with WOL and PXE
One 10/100 iLO NIC dedicated to management
NOTE: Must use HP BladeSystem p-class server blade enclosure with enhanced backplane to utilize all four NIC's (281404-B22).

Expansion Slots No PCI slots all features are integrated
I/O cable connectors:
(2)USB ports, (1) video port, (1) iLO port and (1) kernel debug port
(2) I/O cable ships with every server blade enclosure
Tested USB devices (keyboard, mouse, floppy) are listed in the "Options" section of this QuickSpecs

Integrated Manageability Integrated Lights-Out (iLO) Management Advanced (ASIC on the System Board)

Internal Storage Hard Drives None ship standard

Maximum Internal Storage SCSI 600 GB (internal drive cage) (2 x 300 GB Ultra320, 1" drive)

Graphics Integrated ATI Rage XL Video Controller with 8-MB SDRAM Video Memory

Graphics Resolution Supported Resolution Color Depths Depths 1280 x 1024, 64k, 256,16
1024 x 768, 16.7M, 64k, 256, 16
800 x 600, 16.7M, 64k, 256, 16
640 x 480, 16.7M, 64k, 256, 16

Fiber Channel on the
HP ProLiant BL20p G3 server blade
Two optional fiber channel adapters are supported by the HP ProLiant BL20p G3. Both adapters are mezzanine circuit boards which connect directly to the server blade system board. These optional fiber channel adapters are available via option kits and must be ordered separately
  • QLogic based
  • Utilizes a QLogic ISP2312 chipset
    • The Qlogic BL20pG3 dual-port Fibre Channel Adapter (P/N 361426-B21 361426-B21) is compatible with the HP ProLiant BL20p G3 server blade. Cannot be used for HP ProLiant BL20p G2 or HP ProLiant BL25p/30p/35p/40p/45p server blades)
    • Includes two small form factor pluggable transceivers with LC connectors for installation into the Patch Panel 2, CGESM or GbE2 Interconnect Switch (with the Storage Connectivity Kit)
  • Emulex-based
    • Utilizes an Emulex Thor chipset
    • The Emulex based HP ProLiant 20p G3 Dual Port Fibre Channel HBA (P/N 394757-B21 394757-B21) is compatible with the HP ProLiant BL20p, server blade. It cannot be used with HP ProLiant BL25p/30p/35p/40p/45p server blades.
    • There are no SFP's included in the Emulex mezzanine kit for use with ProLiant BL p-Class Fibre Channel pass-through interconnects. If you require SFPs for use with an Emulex mezzanine and a FC pass through interconnect please order an SFP option kit (P/N 397577-B21 397577-B21) which will provide 2 FC SFPs per option kit.
  • Two ports on each Dual-port Fibre Channel Mezzanine Card provide a redundant Fibre Channel connection to each server blade
  • Supports up to 2 Gb/s Fibre Channel equipment
  • The HP ProLiant BL20p G3 server blade can be ordered with the Dual-port Fibre Channel Adapter installed or the Dual-port Fibre Channel Adapter Option Kit can be ordered separately.
Compatible SAN

HP ProLiant BL20p G3 server blades are optimized for StorageWorks arrays

  • HSG80 (MA8000, EMA12000, EMA16000); EVA5000; EVA3000; XP48, XP128, XP512, XP1024; HP StorageWorks Modular Smart Array 1000

HP ProLiant 20p G3 server blades are compatible with select 3rd party SANs (please see blade storage page for more details: http://h18000.www1.hp.com/products/servers/proliant-bl/p-class/storage.html)


ProLiant Essentials Foundation Pack Software for the ProLiant BL Server

HP Systems Insight Manager HP Systems Insight Manager (HP SIM) provides a unified, secure and extensible environment to centrally manage servers, storage and other infrastructure devices across multiple operating system platforms.

Through a single management view, HP SIM provides core management services that include device discovery and identification, event views, health monitoring, inventory data collection, software version control and reporting. HP SIM is built on industry standards and is extensible with value-added ProLiant Essentials, Integrity Essentials and Storage Essentials software to meet individual management needs. For more details on HP SIM visit http://www.hp.com/go/hpsim.

HP SIM provides organizations with the following benefits:

  • Simplifies and consolidates infrastructure lifecycle management using task and query based functionality
  • Provides the foundation for infrastructure automation and virtualization
  • Enables IT management based on business processes not hardware platforms
  • Lowers infrastructure maintenance cost and frees resources for innovation
  • Maximizes resource utilization with virtualization technologies
  • Provides a central point of integration between infrastructure and Enterprise management tools such as HP OpenView
ProLiant Essentials Rapid Deployment Pack

Rapid Deployment Pack (RDP) is an automated deployment and provisioning solution for all ProLiant servers. RDP includes the Altiris Deployment Solution and ProLiant Integration Module featuring ProLiant server pre-configured events for OS installation, and optimized software drivers, firmware and management agents. Every RDP CD includes 10-node trial licenses for evaluation purposes. RDP requires a license for each server deployed and is available for purchase with blade servers. For more information, visit http://www.hp.com/servers/rdp.

Insight Management Agents Insight Management Agents should be installed on all HP servers to present system instrumentation, health and configuration information into HP Systems Insight Manager and the HP System Management Homepage. The HP System Management Homepage aggregates systems data from Insight Management Agents and other HP management tools, providing a consolidated browser-based interface for managing individual servers.

Insight Management Agents and The HP System Management Homepage are included on ProLiant Support Packs, and can also be installed using the server profiles provided with the ProLiant Essentials Rapid Deployment Pack. For additional information about the Management Agents and the HP System Management Homepage please visit the management Web site at http://www.hp.com/servers/manage.

Subscriber's Choice Subscriber's Choice Driver and Support Alerts/Notifications is a web-based email subscription service that provides software and driver change notifications for ProLiant products. Sign up at http://www.hp.com/go/subscriberschoice
and customize your profile to receive various new alerts as they become available, on a weekly or monthly basis.
ROMPaq, support software, and
configuration utilities
The latest software, drivers, and firmware fully optimized and tested for your ProLiant server and options, available in the RDP CD, SmartStart or downloadable from Software and Drivers download pages, linked from the SmartStart website at http://www.hp.com/go/support.
Insight Diagnostics The most advanced configuration analysis, reporting and troubleshooting utilities used by HP and at your fingertips, available in SmartStart.
NOTE: For more information regarding ProLiant Essentials Software, please see the following URL: http://www.hp.com/servers/proliantessentials

Optional ProLiant Essentials Value Packs

Optional software offerings that selectively extend the functionality of an Adaptive Infrastructure to address specific business problems and needs:

  • Intelligent Networking Pack - detects and analyzes network bottlenecks or broken network linkages and steers traffic to the optimum route based on network conditions, plus it provides an extra layer of protection. The virus throttle feature of the solution slows the propagation of fast spreading virus.
  • Performance Management Pack - a performance management solution that identifies and explains hardware performance bottlenecks on ProLiant servers and attached options enabling users to better utilize their valuable resources.
  • Rapid Deployment Pack (RDP) is an automated deployment and provisioning solution for all ProLiant servers. RDP includes the ProLiant Integration Module featuring ProLiant server pre-configured events for OS installation, and optimized software drivers, firmware and management agents. Every RDP disc includes 10-node trial licenses for evaluation purposes. RDP requires a license for each server deployed and is available for purchase with HP servers. For more information, visit: http://www.hp.com/servers/rdp.
  • Server Migration Pack - P2P Edition: Upgrading or replacing your existing server? Effortlessly transition to new servers with automated, accurate and affordable migration of OS, application and data.
  • Virtualization Management Software - Get the most out of server virtualization by unifying the management of physical and virtual servers in HP Systems Insight Manager. The Virtual Machine Management Pack plug-in provides central management and control of VMware and Microsoft virtual machines and provides physical host to virtual machine association. The Server Migration Pack plug-in automates the manual task of migrating servers between physical or virtual platforms.
  • Vulnerability and Patch Management Pack - identifies and remediates software security vulnerabilities due to missing patches as well as operating system configurations that can be exploited by viruses, worms and other blended threats
  • Workload Management Pack - provides easier management of complex environments, improving overall server utilization and enabling Windows® 2000 customers for the first time to confidently deploy multiple applications on a single multiprocessor ProLiant Server.

NOTE: Flexible and volume quantity license kits are available for ProLiant Essentials Value Packs. Refer to http://www.hp.com/servers/proliantessentials or the various ProLiant Essentials Value Pack product QuickSpecs for more information.


SmartStart SmartStart is a tool that simplifies single server setup, providing a rapid way to deploy reliable and consistent server configurations. SmartStart 7.00 and later can now deploy the HP ProLiant BL20P G3 and HP ProLiant BL40P server blades, using the I/O port with an attached USB CD-ROM device. To obtain a copy of SmartStart for your blade server, redeem the coupon that is included with your Blade server or order your copy from the SmartStart web site. For more information, please visit the SmartStart Web site at http://www.hp.com/servers/smartstart.
SmartStart version supported (minimum): SmartStart 6.20

OS Support Microsoft Windows 2000 Server
Microsoft Windows 2000 Advanced Server
Windows Server 2003, Standard Edition
Windows Server 2003, Enterprise Edition
Red Hat Enterprise
SUSE Linux Enterprise Server
Solaris 10 32/64-bit

NOTE: For a more complete and up-to-date listing of supported Ross and versions, please visit our OS Support Matrix at: http://www.hp.com/go/supportos.
NOTE: For an up-to-date listing of the latest drivers available for the ProLiant BL p-Class, please see: http://www.compaq.com/support/files/server/us/index.html.
NOTE: For a more complete and up-to-date information on Linux support, please visit HP Linux website at: http://h18000.www1.hp.com/products/servers/linux/hpLinuxcert.html.
NOTE: For more Linux OS support & certification information, please visit our the ProLiant & Bladesystem Server Linux matrix http://h18004.www1.hp.com/products/servers/linux/hpLinuxcert.html


Supported Software Options

VMware Virtualization Software
Red Hat Enterprise Linux and management bundle for HP BladeSystems

NOTE: For more information on HP's Certified and Supported HP ProLiant Servers, please visit the VMware Server Support Matrix at: http://h18004.www1.hp.com/products/servers/software/vmware/hpvmwarecert.html
NOTE: For a more complete and up-to-date information on Linux for HP BladeSystems support, please visit HP Linux website at: http://h18000.www1.hp.com/products/quickspecs/12321_div/12321_div.HTML


Intelligent Manageability

Integrated Lights-Out Advanced (iLO)

Virtual Text and Graphical Remote Console
Virtual CD-ROM*
Virtual Floppy*
Virtual Power Button Control
Dedicated LAN Connectivity
Automatic IP Configuration via DHCP/DNS/WINS
Industry Standard 128-bit Secure Sockets Layer (SSL) Security
IML and iLO Event Logging
Support for 12 user accounts with customizable access privileges

Automatic Server Recovery-2 (ASR-2)
Insight Manager 7
HP Systems Insight Manager
Redundant ROM
Remote Flash ROM
ROM Based Setup Utility (RBSU)
Advanced Configuration and Power Interface Specification Ready (ACPI)
Server and Interconnect Switch Health Logs
Redundant Power Supply Utility
Pre-Failure Warranty (covers processors, as well as hard drives and memory)
Interconnect Switch Management System and Utilities (Interconnect Switch option)
Integrated Management Log (IML)
Dynamic sector repairing and drive parameter tracking (with Smart Array controllers)
Network adapter teaming set-up utility

*NOTE: Advanced features such as Graphical Remote Console and Virtual Floppy are included with the BL p-Class server.

Availability

Dual-Port Fibre Channel Mezzanine Card for redundant SAN connection
Two hot-plug SCSI hard drive bays and integrated RAID (Smart Array 6i Plus) on every server blade (Battery-backed write cache is optional.)
Redundant ROM on each server blade ECC Memory
Network adapter teaming (network fault tolerance, transmit load balancing, switch-assisted load balancing)


Security Power-on password
Administrator's password
Integrated Lights-Out has 12 customizable user accounts and SSL encryption
Integrated Lights-Out can be disabled via a Global Setting

Factory Express Portfolio for Servers and Storage

HP Factory Express offers configuration, customization, integration and deployment services for HP servers and storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped and deployed.

Factory Express offers service packages for simple configuration, racking, installation, complex configuration and design services as well as individual factory services, such as image loading, asset tagging, and custom packaging. HP products supported through Factory Express include a wide array of servers and storage: HP Integrity, HP ProLiant, HP ProLiant Server Blades, HP BladeSystem, HP 9000 servers as well as the MSA1000, VA7xxx, EVA, XP, rackable tape libraries and configurable network switches.

For more information on Factory Express services on your specific server model please contact your sales representative or go to http://www.hp.com/go/factory-express.


Service and Support

This product is covered by a global limited warranty and supported by HP Services and a worldwide network of resellers and service providers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Additional support may be covered under the warranty or available for an additional fee. Enhancements to warranty services are available through HP Care Pack services or customized service agreements.

NOTE: Server Blade Limited Warranty includes 3 year Parts, 3 year Labor, 3-year on-site support. This warranty supports the HP ProLiant BL20p, HP ProLiant BL25p, HP ProLiant BL40p and HP ProLiant BL45p Server Blades.
NOTE: Server Blade Limited Warranty includes 3 year Parts, 1 year Labor, 1-year on-site support. This warranty supports the HP ProLiant BL30p and HP ProLiant BL35p Server Blades.
NOTE: Server Blade Enclosure Limited Warranty includes 3 year Parts, 3 year Labor, 3-year on-site support.
NOTE: Server Blade Interconnect Limited Warranty includes 3 year Parts, 3 year Labor, 3-year on-site support
. Additional information regarding worldwide limited warranty and technical support is available at: http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html.

The HP Care Pack service part numbers below for ProLiant BL p-Class server blades, cover the server blade and all HP branded hardware options qualified for the server, purchased at the same time or afterwards, internal to the server.

HP Care Pack services for HP BladeSystem p-Class server blade enclosure covers the enclosure including patch panels, HP supported Ethernet interconnects, power enclosure with power supplies and power distribution.

HP services provide continuous care and support expertise with committed response designed to meet your IT and business needs.

To fully capitalizing on your HP BladeSystem servers' capabilities requires a service partner who thoroughly understands your server technology and systems environment. HP Services, an industry leader in provision of multi vender support solutions provides a range of support services designed to meet the varying needs of business. Whether an SMB or large global corporation HP has a HP BadeSystem server support offer to help you speedily deploy and maximize system uptime.

Enhanced Care - Minimum recommended service support offer designed to ensure customers have access to expert assistance, whenever they need it.

  • 4-Hour On-site Service, 5-Day x 13-Hour Coverage, 3 Years.

Continuance Care - Recommended service delivering cost-effective support options designed to extend HP Services committed response and guaranteed fix times, designed to speed problem identification and resolution.

  • 4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years.

Total Care - Highest HP Support service level recommend to help increase IT performance and availability with comprehensive, integrated hardware and software services

  • Support Plus 24 - Onsite HW support 24x7, 4hr response and Microsoft O/S SW Tech support offsite, onsite at HP's discretion, 24x7 2hr response time incl. HP holidays.

Deployment Services - HP Installation and Start Up services designed to take time, risk, and worry out of the deployment of HP BladeSystem servers - and free customers IT support staff to focus on what they do best, their business.

  • Installation & Start-Up service for HP BladeSystem Infrastructure plus HP BladeSystem Enhanced Network Installation and Start-UP as per the Customer Description and/or Data Sheet. To be delivered on a scheduled basis 8am-5pm, M-F, excl. HP holidays

For a complete listing of service offerings and information visit:
http://www.hp.com/services/bladesystemservices
http://www.hp.com/go/proliant/carepack

contents
 Overview      Standard Features      Models      Configuration Information Factory Integrated Models (North America only)      BL20p G3 Options      BL20p G3 Memory      BL20p G3 QuickSpecs images/line.gif (50 bytes)

Models

Single-Core Models
HP ProLiant BL20p G3 3.8 GHz-2MB, SC, 2GB (2P)
397435-B21
Processor(s) (2) Intel Xeon 3.8 GHz standard (up to 2 supported)
Cache Memory 2MB Level 2 writeback per processor
Memory 2048 MB (Standard) to 8 GB (Maximum) of 2-way interleaved capable PC3200 DDR2 SDRAM running at 400 MHz
Network Adapter Four NC7781 PCI-X Gigabit NICs (embedded) with WOL and PXE
One additional 10/100 NIC dedicated to iLO Management
Storage Controller Smart Array 6i Controller (integrated on system board)
Hard Drives None ship standard
Internal Storage Up to 600-GB maximum (with optional hard drives)
Optical Drive None
Form Factor Plugs vertically into ProLiant BL p-Class Server Blade Enclosure

HP ProLiant BL20p G3 3.6 GHz-2MB, SC, 2GB (2P)
380636-B21
Processor(s) (2) Intel Xeon 3.6 GHz standard (up to 2 supported)
Cache Memory 2MB Level 2 writeback per processor
Memory 2048 MB (Standard) to 8 GB (Maximum) of 2-way interleaved capable PC3200 DDR2 SDRAM running at 400 MHz
Network Adapter Four NC7781 PCI-X Gigabit NICs (embedded) with WOL and PXE
One additional 10/100 NIC dedicated to iLO Management
Storage Controller Smart Array 6i Controller (integrated on system board)
Hard Drives None ship standard
Internal Storage Up to 600-GB maximum (with optional hard drives)
Optical Drive None
Form Factor Plugs vertically into ProLiant BL p-Class Server Blade Enclosure

HP ProLiant BL20p G3 3.4 GHz-2MB, SC, 2GB (2P)
380634-B21

Processor(s) (2) Intel Xeon 3.4 GHz standard (up to 2 supported)
Cache Memory 2MB Level 2 writeback per processor
Memory 2048 MB (Standard) to 8 GB (Maximum) of 2-way interleaved capable PC3200 DDR2 SDRAM running at 400 MHz
Network Adapter Four NC7781 PCI-X Gigabit NICs (embedded) with WOL and PXE
One additional 10/100 NIC dedicated to iLO Management
Storage Controller Smart Array 6i Controller (integrated on system board)
Hard Drives None ship standard
Internal Storage Up to 600-GB maximum (with optional hard drives)
Optical Drive None
Form Factor Plugs vertically into ProLiant BL p-Class Server Blade Enclosure

HP ProLiant BL20p G3 3.4 GHz-2MB, SC, 1GB (1P)
380633-B21
Processor(s) (1) Intel Xeon 3.4 GHz standard (up to 2 supported)
Cache Memory 2MB Level 2 writeback per processor
Memory 1024 MB (Standard) to 8 GB (Maximum) of 2-way interleaved capable PC3200 DDR2 SDRAM running at 400 MHz
Network Adapter Four NC7781 PCI-X Gigabit NICs (embedded) with WOL and PXE
One additional 10/100 NIC dedicated to iLO Management
Storage Controller Smart Array 6i Controller (integrated on system board)
Hard Drives None ship standard
Internal Storage Up to 600-GB maximum (with optional hard drives)
Optical Drive None
Form Factor Plugs vertically into ProLiant BL p-Class Server Blade Enclosure

HP ProLiant BL20p G3 3.2 GHz-2MB, SC, 1GB (1P)
380631-B21
Processor(s) (1) Intel Xeon 3.2 GHz standard (up to 2 supported)
Cache Memory 2MB Level 2 writeback per processor
Memory 1024 MB (Standard) to 8 GB (Maximum) of 2-way interleaved capable PC3200 DDR2 SDRAM running at 400 MHz
Network Adapter Four NC7781 PCI-X Gigabit NICs (embedded) with WOL and PXE
One additional 10/100 NIC dedicated to iLO Management
Storage Controller Smart Array 6i Controller (integrated on system board)
Hard Drives None ship standard
Internal Storage Up to 600-GB maximum (with optional hard drives)
Optical Drive None
Form Factor Plugs vertically into ProLiant BL p-Class Server Blade Enclosure

HP ProLiant BL20p G3 3.0 GHz-2MB, SC, 1GB (1P)
380632-B21
Processor(s) (1) Intel Xeon 3.0 GHz standard (up to 2 supported)
Cache Memory 2MB Level 2 writeback per processor
Memory 1024 MB (Standard) to 8 GB (Maximum) of 2-way interleaved capable PC3200 DDR2 SDRAM running at 400 MHz
Network Adapter Four NC7781 PCI-X Gigabit NICs (embedded) with WOL and PXE
One additional 10/100 NIC dedicated to iLO Management
Storage Controller Smart Array 6i Controller (integrated on system board)
Hard Drives None ship standard
Internal Storage Up to 600-GB maximum (with optional hard drives)
Optical Drive None
Form Factor Plugs vertically into ProLiant BL p-Class Server Blade Enclosure

HP ProLiant BL20p G3 2.8 GHz-1MB, SC, 1GB (1P)
391791-B21
Processor(s)(1) Intel Xeon 2.8 GHz /1M (Low Voltage) (up to 2 supported)
Cache Memory1MB Level 2 cache
Memory 1024 MB (Standard) to 8 GB (Maximum) of 2-way interleaved capable PC3200 DDR2 SDRAM running at 400 MHz
Network Adapter Four NC7781 PCI-X Gigabit NICs (embedded) with WOL and PXE
One additional 10/100T NIC dedicated to iLO Management
Storage ControllerSmart Array 6i Controller (integrated on system board)
Hard DrivesNone ship standard
Internal StorageUp to 600-GB maximum (with optional hard drives)
Optical DriveNone
Form FactorPlugs vertically into ProLiant BL p-Class Server Blade Enclosure
NOTE: For additional information on HP ProLiant BL20p server blades starter bundles, please see the following URL: http://h18004.www1.hp.com/products/quickspecs/11567_div/11567_div.HTML (Worldwide)
contents
 Overview      Standard Features      Models      Configuration Information Factory Integrated Models (North America only)      BL20p G3 Options      BL20p G3 Memory      BL20p G3 QuickSpecs images/line.gif (50 bytes)

Configuration Information Factory Integrated Models (North America only)

NOTE: For Configure to Order requirements within EMEA region, please consult local Sales Contact.
NOTE:
HP does not allow factory integration of options into standard models listed above.
Configure-to-order servers must start with a CTO Chassis.
NOTE: This product offering does not support HP Factory Express Server Configuration Level 1.
NOTE: FIO indicates that this option only available as a Factory Installable Option.

Step 1: Base Server Blade Configuration
Models HP ProLiant BL20p G3 CTO Blade (North America) 396226-405
Configurable Model ships with:
Two NC7781 PCI-X Gigabit NICs (embedded) with WOL and PXE
One additional 10/100 NIC dedicated to iLO Management
Smart Array 6i Plus Controller (integrated on system board)

Step 2: Choose Required Options (one of the following from each list unless otherwise noted):
  For single processor configuration choose:
Processors Intel Xeon 2.8 GHz - 4M Dual-Core Processor Option Kit FIO BASE
NOTE: If 2 processors are desired, select one 407223-B21 407223-B21 and one 407223-B21 407223-B21
407223-B21 407223-B21
Intel Xeon 3.8 GHz -2M Processor Option Kit FIO BASE
NOTE: If 2 processors are desired, select one 397436-B21and one 397436-B21
397436-B21
Intel Xeon 3.4 GHz-2M Processor Option Kit FIO BASE
NOTE: If 2 processors are desired, select one 381020-B21 381020-B21and one 381020-B21 381020-B21
381020-B21 381020-B21
Intel Xeon 3.2 GHz-2M Processor Option Kit FIO BASE
NOTE: If 2 processors are desired, select one 381019-B21 381019-B21and one 381019-B21 381019-B21
381019-B21 381019-B21
Intel Xeon 3.0 GHz-2M Processor Option Kit FIO BASE
NOTE: If 2 processors are desired, select one 381018-B21 381018-B21and one 381018-B21 381018-B21
381018-B21 381018-B21
Intel Xeon 2.8 GHz -1M BL20pG3 Processor Option Kit (Low-Voltage) FIO BASE
NOTE: If 2 processors are desired, select one 391793-B21 391793-B21and one 391793-B21 391793-B21
391793-B21 391793-B21
BL20p G3 Memory NOTE: Two-way memory interleaving is enabled when an identical pair of DIMMs is installed.
1 GB Advanced PC2 PC3200 DDR2 SDRAM DIMM Memory Kit (2 x 512 MB)
NOTE: Must order in pairs
2 GB Advanced PC2 PC3200 DDR2 SDRAM DIMM Memory Kit (2 x 1024 MB)
NOTE: Must order in pairs
4 GB Advanced ECC PC2-3200 DDR2 SDRAM DIMM Dual Rank Memory Kit (2 x 2 GB)
NOTE: Must order in pairs

Step 3: Choose Additional Factory Integratable Options
Fibre Channel OptionsQLogic-based HP ProLiant BL20p G3 Fibre Channel Adapter Card 361426-B21 361426-B21
CommunicationsEmulex-based Fibre Channel Mezzanine card for HP p-Class BladeSystem
NOTE: SFPs for use with pass through SAN switches not included with the Emulex based Fibre Channel Mezzanine card. If SFPs required please order the SFP option kit (P/N 397577-B21 397577-B21) which includes 2 2Gb SFPs per option kit.
394757-B21 394757-B21
HP 2-2Gb SFP for Fibre Channel pass through kit
NOTE: Must select if SFP for use with pass through SAN switches is required when ordering Emulex based Fibre Channel Mezzanine card for HP p-Class BladeSystem (P/N 394757-B21 394757-B21).
397577-B21 397577-B21
HP ProLiant BL20p Dual NC370i Multifunction Network Adapter
NOTE: The HP BladeSystem Multifunction iSCSI and RDMA features are not currently supported in a Linux environment. Future support is planned.
374963-B21
NOTE: A minimum of 1 GB of memory per port is required for NC370x adapters, with a maximum of two NC370x ports permitted in a server.
HP ProLiant BL20p G3 NIC MEZZ FIO 396754-B21

Step 4: Choose Additional Options for Factory Integration
NOTE: For additional options, including server blade enclosure with enhanced backplanes, interconnect options and power subsystem options, please refer to the "Options" section below.
contents
 Overview      Standard Features      Models      Configuration Information Factory Integrated Models (North America only)      BL20p G3 Options      BL20p G3 Memory      BL20p G3 QuickSpecs images/line.gif (50 bytes)

Options

ProLiant Essentials
Value Pack Software
ProLiant Essentials Intelligent Networking Pack Windows Edition and Linux Edition
ProLiant Essentials Intelligent Networking Pack Windows Edition, Single Server License
NOTE: For use with a single server. Contains one license with a unique license activation key and documentation.

372906-B21

ProLiant Essentials Intelligent Networking Pack Linux Edition, Single Server License
NOTE: For use with a single server. Contains one license with a unique license activation key and documentation.
397004-B21
NOTE: For additional ProLiant Intelligent Networking Pack License Kits please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/12062_div/12062_div.HTML
http://h18000.www1.hp.com/products/quickspecs/12327_div/12327_div.HTML
ProLiant Essentials Performance Management Pack
ProLiant Essentials Performance Management Pack, Single-Server License
NOTE: For use with a single server. Contains one license with a unique license activation key, HP Management CD and documentation.
NOTE: The most recent version of the software can always be downloaded at http://www.hp.com/products/pmp.

306696-B21

NOTE: For additional ProLiant Performance Management Pack License Kits please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/11925_div/11925_div.HTML
ProLiant Essentials Rapid Deployment Pack
ProLiant Essentials Rapid Deployment Pack, Flatpack - single server license
434560-B21
Rapid Deployment Pack, Single-Server License
NOTE: This license allows 1 server to be deployed and managed via RDP.

267196-B21

Rapid Deployment Pack, Single-Server License (Japan)
NOTE: This license allows 1 server to be deployed and managed via RDP.

267196-291

NOTE: For additional ProLiant Essentials Rapid Deployment Pack License Kits please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/11053_div/11053_div.HTML
ProLiant Essentials Server Migration Pack - Physical to ProLiant Edition
HP ProLiant Essentials Server Migration Pack - Physical to ProLiant Edition. 1 Year Unlimited Migration License
412982-B21
ProLiant Essentials Server Migration Pack - Physical to ProLiant Edition, Single-Migration License
412978-B21
NOTE: For additional ProLiant Server Migration Pack License Kits please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/12467_div/12467_div.HTML
ProLiant Essentials Server Migration Pack
ProLiant Essentials Server Migration Pack, Single-Migration License
NOTE: Contains one license, enabling 1 server migration, with a unique license activation key and documentation.
NOTE: This license allows 1 server to be migrated from a physical server to a virtual machine. Or this license can be used to migrate a virtual machine from one virtualization layer i.e. VMware GSX to a different virtualization layer such as VMware ESX or Microsoft Virtual Server 2005.

375345-B21

NOTE: For additional ProLiant Server Migration Pack License Kits please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/12328_div/12238_div.HTML
ProLiant Essentials Workload Management Pack
ProLiant Essentials Workload Management Pack, Single Server License
NOTE: For additional ProLiant Workload Management Pack License Kits please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/11452_div/11452_div.HTML
ProLiant Essentials Virtual Machine Management Pack
ProLiant Essentials Virtual Machine Management Pack, Single-Server License
NOTE: For use with a single server. Contains one license with a unique license activation key and documentation.

372214-B21

NOTE: For additional ProLiant Virtual Machine Management Pack License Kits please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/12328_div/12238_div.HTML
ProLiant Essentials Vulnerability and Patch Management Pack
ProLiant Essentials Vulnerability and Patch Management Pack, Single-Server License
NOTE: For use with a single server. Contains one license with a unique license activation key and documentation.
371645-B21
NOTE: For additional ProLiant Vulnerability and Patch Management Pack License Kits, please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/12111_div/12111_div.HTML
NOTE: Flexible and volume quantity license kits are available for ProLiant Essentials Value Packs. Refer to http://www.hp.com/servers/proliantessentials or the various ProLiant Essentials Value Pack product QuickSpecs for more information.
NOTE: For more information regarding ProLiant Essentials Software, please see the following URL: http://www.hp.com/servers/proliantessentials.

HP Control Tower BladeSystem p-class Management Software HP Control Tower for HP p-Class BladeSystem, Media pack (CD) - No licenses included
NOTE: This optional Media pack CD contains the ISO image for the HP Control Tower management appliance that must be installed in a HP ProLiant BL20p G3 server. Servers must be acquired separately.
NOTE: This Media pack is optional because the latest ISO image may be downloaded at no cost from: http://www.hp.com/go/controltower

412956-B21
HP Control Tower for HP BladeSystem, Single Server License. No media included.
NOTE: For use with a single blade server. Contains one license with a single unique license activation key.
412957-B21
HP Control Tower for HP BladeSystem, Eight-pack (8-pack) Server License. No media included.
NOTE: For use with eight (8) blade servers. Contains eight (8) licenses with a single unique license activation key.
412958-B21
HP Control Tower for HP BladeSystem, Flexible License. No media included.
NOTE: For use with multiple servers (minimum of 5). This part number can be used to purchase multiple licenses with a single activation key. The quantity ordered for this part number will be the quantity of licenses included in the kit in the form of a corresponding activation key. Use the same key to activate all licenses in the actual quantity ordered. For a given order, one kit will be delivered with the activation key.
412959-B21

Processor Intel Xeon Dual-Core Processor 2.8 GHz-4M Processor Option Kit
Intel Xeon Single-Core 3.8 GHz-2M Processor Option Kit
397436-B21
Intel Xeon Single-Core 3.4 GHz-2M Processor Option Kit
Intel Xeon Single-Core 3.2 GHz-2M Processor Option Kit
Intel Xeon Single-Core 3.0 GHz-2M Processor Option Kit
Intel Xeon Single-Core 3.6 GHz-1M Processor Option Kit
Intel Xeon Single-Core 3.4 GHz-1M Processor Option Kit

361412-B21 361412-B21

Intel Xeon Single-Core 3.2 GHz-1M Processor Option Kit
Intel Xeon Single-Core 2.8 GHz-1M Processor Option Kit(Low-Voltage)

BL20p G3 Memory
(SDRAM DIMMs)

1 GB Advanced PC2 PC3200 DDR2 SDRAM DIMM Memory Kit (2 x 512 MB)
2 GB Advanced PC2 PC3200 DDR2 SDRAM DIMM Memory Kit (2 x 1024 MB)
4 GB Advanced ECC PC2-3200 DDR2 SDRAM DIMM Dual Rank Memory Kit (2 x 2 GB)

Storage Controllers 128MB Battery-Backed Write Cache with Battery Housing

346914-B21 346914-B21

NOTE: Please see the following Controller QuickSpecs for Technical Specifications such as PCI Bus, PCI Peak Data Transfer Rate, SCSI Protocols supported, SCSI Peak Data Transfer Rate, Channels, SCSI Ports, Drives supported, Cache, RAID support, and additional information:
http://h18000.www1.hp.com/products/quickspecs/12030_div/12030_div.HTML (Smart Array 6i)

Communications HP ProLiant BL20p Dual NC370I Multifunction Network Adapter
NOTE: The HP BladeSystem Multifunction iSCSI and RDMA features are not currently supported in a Linux environment. Future support is planned.

374963-B21

NOTE: A minimum of 1 GB of memory per port is required for NC370x adapters, with a maximum of two NC370x ports permitted in a server.

HP ProLiant BL20p G3 - Fibre Channel Adapter Emulex based BL20p Dual Port Fibre Channel HBA
Dual port Fibre Channel Adapter (2-Gb) for ProLiant BL20p G3*

361426-B21 361426-B21

HP 2-2Gb SFP for Fibre Channel pass through kit
NOTE: Must select if SFP for use with pass through SAN switches is required when ordering Emulex based Fibre Channel Mezzanine card for HP p-Class BladeSystem (p/N 394757-B21 394757-B21.
*
NOTE:
When using this card, the Patch Panel 2 , CGESM or GbE2 Interconnect Switch (with Storage Connectivity Kit) must be used to provide the Fibre Channel pass through.
*NOTE: The HP ProLiant BL20p G2 dual-port Fibre Channel adapter is not compatible with the HP ProLiant BL20p G3.

HP BladeSystem Entry Bundle HP BladeSystem Entry Bundle
390738-B21
Bundle Contents:
Server Blade Enclosure

Server Blade Enclosure with enhanced backplane components

Power Subsystem 1U Power Enclosure with 2 power supplies
NOTE: This bundle includes the 1U Power Enclosure with 2 power supplies and a server blade enclosure with enhanced backplane components.

HP BladeSystem p-Class Other Options HP BladeSystem p-Class Diagnostic Station
NOTE: The Diagnostic Station allows access to the HP ProLiant p-Class server blades and the BL p-Class interconnect switch outside of the server blade enclosure. The option provides power and a data interface so that "offline" upgrade and diagnostic functions may be performed.

Tape Libraries

HP StorageWorks MSL6000 Tape Library
Ultrium 960 technology
HP StorageWorks MSL6030 1 Ultrium 960 Dr LVDS Library
AD606B
HP StorageWorks MSL6030 1 Ultrium 960 Dr FC Library
AD608B
HP StorageWorks MSL6030 2 Ultrium 960 Dr LVDS Library
AD607B
HP StorageWorks MSL6030 2 Ultrium 960 Dr FC Library
AD609B
SDLT 600 technology
HP StorageWorks MSL6052 2 SDLT 600 Dr LVDS Library
AD587A
HP StorageWorks MSL6052 2 SDLT 600 Dr FC Library
AD588A
Ultrium 460 technology
HP StorageWorks MSL6030 1 Ultrium 460 Dr LVDS Library
AD598B
HP StorageWorks MSL6030 1 Ultrium 460 Dr FC Library
AD600B
HP StorageWorks MSL6030 2 Ultrium 460 Dr FC Library
AD601B
NOTE: Please reference the MSL6000 Tape Library QuickSpecs at http://www.hp.com/go/automation for additional information needed to create a complete solution; reference current compatibility information at http://www.hp.com/go/ebs
HP StorageWorks Virtual Library Systems
HP StorageWorks 6105 Virtual Library System AF728A
HP StorageWorks 6510 Virtual Library System AF729A
HP StorageWorks 6840 Virtual Library System AG051A
NOTE: Please reference the Virtual Library Systems QuickSpecs at http://www.hp.com/go/automation for additional information needed to create a complete solution. Reference current compatibility information at http://www.hp.com/go/ebs

HP StorageWorks Modular Smart Array 1000HP StorageWorks Modular Smart Array 1000201723-B22 201723-B22
NOTE: Please see the StorageWorks Modular Smart Array 1000 QuickSpecs for additional options and configuration information at:
http://h18000.www1.hp.com/products/quickspecs/11033_div/11033_div.HTML (Worldwide)


Cluster Options ProLiant Cluster Starter Kit
364023-B21
NOTE: For additional information regarding the ProLiant Cluster Starter Kit please see the following QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/11935_div/11935_div.html (Worldwide)
HP HA/F200 for Entry SAN Cluster
364026-B22
NOTE: For additional information regarding the ProLiant Cluster for Entry Level SAN please see the following QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/11932_div/11932_div.html (Worldwide)
ProLiant Cluster HA/F500 for the Enterprise SAN
364024-B21
NOTE: For additional information regarding the ProLiant Cluster HA/F500 for Enterprise SAN please see the following QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/11933_div/11933_div.html (Worldwide)
NOTE: For configuration/certification options for the HP Parallel Database Cluster for Oracle RAC please go to: http://www.hp.com/solutions/highavailability/oracle
HP Serviceguard for Linux, A.11.16 for SUSE SLES 9 & 10 and Red Hat EL 3 & 4 (single license version)
307754-B26
HP Serviceguard for Linux ProLiant Cluster, A.11.16 for SUSE SLES 9 & 10 and Red Hat EL 3 & 4 (2 node license cluster kit)
305199-B26
HP Serviceguard for Linux and Red Hat Global File System - 1 year subscription
T2798AA#001
HP Serviceguard for Linux and Red Hat Global File System - 3 years subscription
T2798AA#003
NOTE: For additional information regarding the HP Serviceguard for Linux License, please see the following QuickSpecs at:
http://h18000.www1.hp.com/products/quickspecs/11518_div/11518_div.html (Worldwide)

NOTE: For configuration/certification options for HP Serviceguard for Linux please go to: http://www.hp.com/info/sglx

USB Options HP USB 2-Button Optical Scroll Mouse (Carbonite/Silver) DC172B DC172B
USB 1.44-MB External Diskette Drive (Carbonite)
DC141B
HP USB 04 Standard Keyboard DT528A#xxx
USB 2.0 4-port HUB DG954A
HP 1GB Drive Key II- USB 2.0 Flash Drive AG382AA
HP 512MB DriveKey II- USB Flash Drive ED516AA
USB Optical Scroll Mouse (Carbonite) DD441B
256MB HP Drive Key II (USB 2.0) PH657A

HP Rack 5000 Series
(Graphite Metallic)
HP 5642 Rack - Unassembled
NOTE: Please see the HP Rack 5642 QuickSpecs for additional part numbers and Technical Specifications such as height, width, depth, weight, and color:
http://h18000.www1.hp.com/products/quickspecs/12074_div/12074_div.HTML (Worldwide)
NOTE: For additional information regarding Rack Cabinets, please see the following URL: http://www.hp.com/go/rackandpower.

HP Rack 10000 G2 Series (Graphite Metallic) 10642 G2 (42U) Rack Cabinet - Pallet
10642 G2 (42U) Rack Cabinet - Shock Pallet
10642 G2 (42U) Rack Cabinet - Crated
AF003A
10642 G2 (42U) Rack Cabinet, with Extension - Shock Pallet
10642 G2 (42U) Rack Shock Pallet- for field racking (NA only)
AF007A
10636 G2 (36U) Rack Cabinet - Shock Pallet
10636 G2 (36U) Rack Cabinet - Crated
10636 G2 (36U) Rack Cabinet , with Extension - Shock Pallet
10636 G2 (36U) Rack Cabinet, without door - Shock Pallet
10636 G2 (36U) Rack Shock Pallet- for field racking (NA only)
AF019A
10622 G2 (22U) Rack Cabinet - Shock Pallet
AF022A
10842 G2 (42U) 800mm Wide Rack Cabinet - Pallet
AF041A
10842 G2 (42U) 800mm Wide Rack Cabinet - Shock Pallet
AF042A
10647 G2 (47U) Rack Cabinet - Pallet
AF031A
HP 10642 G2 (42U) Side Panels (set of two) (Graphite Metallic)
AF054A
HP 10636 G2 (36U) Side Panels (set of two) (Graphite Metallic)
AF056A
HP 10636 G2 Rear Extension Kit
AF060A
600mm G2 Stabilizer Option Kit (Graphite)
AF062A
600mm G2, Heavy Duty Stabilizer Option Kit (Graphite)
AF064A
NOTE: Please see the Rack 10000 G2 QuickSpecs for additional part numbers and Technical Specifications such as height, width, depth, weight, and color:
http://h18000.www1.hp.com/products/quickspecs/12402_div/12402_div.HTML (Worldwide)
NOTE: For additional information regarding Rack Cabinets, please see the following URL: http://www.hp.com/go/rackandpower.

Rack 10000 Series
(Graphite Metallic)

Rack, HP Infrastructure 42U (LV)
379006-001
Rack, HP Infrastructure 42U (HV)
HP S10614 (14U) Rack Cabinet - Shock Pallet

HP Rack 10647 (47U) Cabinet - Crated

245160-B23

HP Rack 10622 (22U) Cabinet - Crated

245163-B23

NOTE: xxxxxx-B22 (shock pallet) used to ship racks with equipment installed (by custom systems, VARs and Channels). xxxxxx-B23 (crated) used for air shipments of empty racks.
NOTE: It is mandatory to use a shock pallet in order to ship racks with equipment installed.

NOTE: Please see the Rack 10000 QuickSpecs for additional part number and Technical Specifications such as height, width, depth, weight, and color:
http://h18000.www1.hp.com/products/quickspecs/10995_div/10995_div.HTML (Worldwide)
NOTE: For additional information regarding Rack Cabinets, please see the following URL: http://www.hp.com/go/rackandpower.


Monitors and Keyboards

TFT7210R Rack Mounted 17" Monitor
TFT7600 Rackmount Keyboard Monitor US
TFT7600 Rackmount Keyboard Monitor UK
AG053A
TFT7600 Rackmount Keyboard Monitor FR
AG055A
TFT7600 Rackmount Keyboard Monitor SP
AG057A
TFT7600 Rackmount Keyboard Monitor DEN
AG058A
TFT7600 Rackmount Keyboard Monitor NOR
AG059A
TFT7600 Rackmount Keyboard Monitor SWI
AG061A
TFT7600 Rackmount Keyboard Monitor BEL
AG063A
TFT7600 Rackmount Keyboard Monitor RUS
AG065A
TFT7600 Rackmount Keyboard Monitor INTL
AG066A
1U Rackmount Keyboard with USB, US
1U Rackmount Keyboard with USB, UK
AG073A
1U Rackmount Keyboard with USB, GR
AG074A
1U Rackmount Keyboard with USB, FR
AG075A
1U Rackmount Keyboard with USB, ITL
AG076A
1U Rackmount Keyboard with USB, SP
AG077A
1U Rackmount Keyboard with USB, DEN
AG078A
1U Rackmount Keyboard with USB, NOR
AG079A
1U Rackmount Keyboard with USB, SE/FI
AG080A
1U Rackmount Keyboard with USB, SWI
AG081A
1U Rackmount Keyboard with USB, PORT
AG082A
1U Rackmount Keyboard with USB, BEL
AG083A
1U Rackmount Keyboard with USB, JPN2
AG084A
1U Rackmount Keyboard with USB, RUS
AG085A
1U Rackmount Keyboard with USB, INTL
AG086A
NOTE: For additional information regarding Rack Options, please see the following URL: http://www.hp.com/go/rackandpower

HP KVM Switch Options

HP BladeSystem Cat 5 KVM Interface Adapter
AF100A
HP 0x1x8 Server Console Switch
HP 0x2x16 Server Console Switch
PS/2 Interface Adapter, 1-pack
PS/2 Interface Adapter, 8-pack
USB Interface Adapter, 1-pack
Serial Interface Adapter, 1-pack with power supply
373045-B21
HP 1x4 Server Console Switch
HP PS2 Server Console Cable, 6 foot, 2-Pack
HP USB Server Console Cable, 6 foot, 2-Pack
NOTE: required for supporting USB peripherals.
NOTE For additional information regarding KVM switches, Serial Console servers, rack mount monitors, keyboards and all related options please see the following URL: http://www.hp.com/go/kvm

HP Serial Console Server Options

HP 16 Port Serial Console Server (worldwide)
HP 48 Port Serial Console Server (worldwide)
Serial Adapter, RJ45-DB9 DCE Female, 1 Pack
Serial Adapter, RJ45-DB9 DCE Female, 8 Pack
NOTE: Cat5e cables are required to connect Serial Adapters to Serial Console Servers. Additional Serial Adapters and Cat5e cables can be found at the following URL: http://www.hp.com/go/kvm.
2x1x16 IP Console Switch with Virtual Media
4x1x16 IP Console Switch with Virtual Media
2x16 Server Console Switch with Virtual Media
PS/2 Virtual Media Interface Adapter, 1 pack
NOTE: Requires PS/2 and one USB port on server.
NOTE: For additional information regarding KVM switches, Serial Console servers, rack mount monitors, keyboards and all related options please see the following URL: http://www.hp.com/go/kvm.

Service and Support Offerings (HP Care Pack Services)

NOTE: The HP Care Pack service part numbers below for ProLiant BL p-Class server blades, cover the server blade and all HP branded hardware options qualified for the server, purchased at the same time or afterwards, internal to the server.

Hardware Services On-site Service



4-Hour On-site Service, 5-Day x 13-Hour Coverage, 3 Years, Electronic
UD187E
4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic
UD188E
6-Hour Call to Repair, On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic
UD189E
NOTE: The HP Care Pack service part numbers below for HP BladeSystem p-Class server blade enclosure covers the enclosure including patch panels, HP supported Ethernet interconnects, power enclosure with power supplies and power distribution.
Hardware Services On-site Service
4-Hour On-site Service, 5-Day x 13-Hour Coverage, 3 Years, Electronic
HC031E
4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic
HC032E
6-Hour Call to Repair, On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic
HC033E
NOTE: The HP Care Pack service part numbers below covers the HP BladeSystem Brocade and McData SAN Switches.
Hardware Services On-site Service
Next Business Day On-site Service, 5-Day x 9-Hour Coverage,
3 Years, Electronic
UC007E
4-Hour On-site Service, 5-Day x 13-Hour Coverage, 3 Years, Electronic
UC008E
4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic
UC009E
6-Hour Call to Repair, On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic
UC023E

Installation & Start-up Services

HP Installation & Startup Service for HP BladeSystem Infrastructure, Electronic
NOTE: Provides for an integrated hardware and software implementation that includes remote service planning, onsite deployment of hardware and software, installation verification testing and customer orientation. Hardware deployment covers the installation of a single BladeSystem enclosure that include server blades (up to 16), Ethernet network interconnect, and power options. Software deployment covers the installation and configuration of HP Systems Insight Manager (SIM), HP Rapid Deployment Pack (RDP), and deploy up to two operating system editions of either Windows or Linux, using scripted operating system installation software.

UC905E

ProLiant BL p-Class Blade Server Hardware Installation, Electronic

UA219E

ProLiant BL p-Class Enclosure and Server Blade Hardware Installation, Electronic

U4971E

Provides for the Installation and Start-up of ProLiant Essentials Rapid Deployment Pack, Electronic
NOTE: Provides installation on a Customer supplied server designated as a Deployment Server. Includes the deployment of a single server. This new server will be deployed using either one of the pre-configured scripts or an image. In addition, the service will provide for the capture and storage of the configuration of the newly deployed server and orientation on product usage. To be delivered during standard office ours, standard office days.
U5683E
Provides for the Installation and Start-up of Rapid Deployment Pack Implementation of Rapid Deployment Pack (Basic) (Electronic)
UA042E
HP ProLiant Essentials Vulnerability and Patch Management Pack Installation and Startup Service, Electronic
NOTE: Service coverage: onsite installation of the Vulnerability and Patch Management (VPM) software on a customer designated server, configuration of the VPM software to acquire security patches, enabling the VPM software to scan up to five (5) systems, applying the security patches to the designated servers, generating a report from VPM that shows the vulnerability assessment results, and providing customer with an orientation to the software.
UC929E
Provides for the Installation and Start-up of System Insight Manager (Electronic)
UA041E
Provides for the Installation and Start-up of System Insight Manager (Electronic)
UA040E
NOTE: For more information, customer/resellers can contact http://www.hp.com/hps/carepack/services/
Software Operating Environment Care Packs
Microsoft Software Operating Environment Software Telephone 9x5 - 3 incident (Electronic)
U8169E
Red Hat Software Operating Environment Software Telephone 9x5 - 10 incident (Electronic)
U3402E
SUSE Software Operating Environment Software Telephone 9x5 - 3 incident (Electronic)
U9615E
ProLiant Essentials Operating Environment, - 5 Day, 8x5,1 year, 3 incident (Electronic)
U8222E
NOTE: For more information, customer/resellers can contact http://www.hp.com/hps/carepack/services/



contents
 Overview      Standard Features      Models      Configuration Information Factory Integrated Models (North America only)      BL20p G3 Options      BL20p G3 Memory      BL20p G3 QuickSpecs images/line.gif (50 bytes)

Memory

DIMM installation guidelines:

  1. All DIMMs must be PC2-3200 DDR2 400 MHz SDRAM ECC DIMMs.
  2. Both DIMM slots in a memory bank must be populated.
  3. Both DIMMs in a memory bank must be identical. Install identical DIMMs as pairs only, starting with DIMM socket 1, bank A.
  4. Populate both slots in a bank at the same time: DIMMs 1 and 2 reside in bank A, and DIMMs 3 and 4 reside in bank B.

HP ProLiant BL20p G3 Server Blade (2P Model)

Standard Memory
2048 MB PC2-3200 Registered DDR2 SDRAM DIMM installed (2 x 1 GB SDRAM DIMM)

Standard Memory Plus Optional Memory

Up to 6144 MB of DDR2 SDRAM DIMM memory is available with the installation of optional DDR2 SDRAM DIMM memory expansion kits.

Standard Memory Replaced with Optional Memory

Up to 8192-MB of DDR2 SDRAM DIMM memory is available with the removal of standard memory and the installation of optional SDRAM DDR DIMM memory expansion kits.

BL20p G3 Memory

Slot



1

2

3

4

Standard

2048 MB

1024 MB

1024 MB

Empty

Empty

Optional

6144 MB

1024 MB

1024 MB

2048 MB

2048 MB

Maximum 8192 MB

2048 MB

2048 MB

2048 MB

2048 MB


Following are memory options available from HP:
  • 1 GB Advanced PC2 PC3200 DDR2 SDRAM DIMM Memory Kit (2 x 512 MB)
343055-B21 343055-B21
  • 2 GB Advanced PC2 PC3200 DDR2 SDRAM DIMM Memory Kit (2 x 1024 MB)
  • 4 GB Advanced ECC PC2-3200 DDR2 SDRAM DIMM Dual Rank Memory Kit (2 x 2 GB)

HP ProLiant BL20p G3 Server Blade (1P Model)
Standard Memory
1024 MB PC2-3200 400 MHz Registered DDR2 SDRAM DIMM installed

Standard Memory Plus Optional Memory

Up to 5120 MB of DDR2 SDRAM DIMM memory is available with the installation of optional DDR2 SDRAM DIMM memory expansion kits.

Standard Memory Replaced with Optional Memory

Up to 8192 MB of DDR2 SDRAM DIMM memory is available with the removal of standard memory and the installation of optional DDR2 SDRAM DIMM memory expansion kits.

BL20p G3 Memory

Slot



1

2

3

4

Standard

1024 MB

512 MB

512 MB

Empty

Empty

Optional

5120 MB

512 MB

512 MB

2048 MB

2048 MB

Maximum 8192 MB

2048 MB

2048 MB

2048 MB

2048 MB


Following are memory options available from HP:
  • 1 GB Advanced PC2 PC3200 DDR2 SDRAM DIMM Memory Kit (2 x 512 MB)
343055-B21 343055-B21
  • 2 GB Advanced PC2 PC3200 DDR2 SDRAM DIMM Memory Kit (2 x 1024 MB)
343056-B21 343056-B21
  • 4 GB Advanced ECC PC2-3200 DDR2 SDRAM DIMM Dual Rank Memory Kit (2 x 2 GB)
375004-B21 375004-B21
contents
 Overview      Standard Features      Models      Configuration Information Factory Integrated Models (North America only)      BL20p G3 Options      BL20p G3 Memory      BL20p G3 QuickSpecs images/line.gif (50 bytes)

Quickspecs

HP ProLiant BL20p G3 Server Blade

Dimensions

Height

10.29 in (26.14 cm)

Depth

1.69 in (4.29 cm)

Width

28 in (71.10 cm)

Weight

Maximum

20.8 lbs (9.43 kg)

Temperature Range*



Operating
10° to 35° C (50° to 95° F)

Non-Operating

-40° to 60° C (-40° to 140° F)

Storage
-20° to 60° C (-4° to 140° F)
Maximum Wet Bulb Temperature -30° C (86° F)
Operating
10% to 90%

Relative Humidity**

Shipping
10% to 90%
Storage10% to 95%
*NOTE: All temperature ratings shown are for sea level. An altitude derating of 1°C per 304.8 m (1.8°F per 1,000 ft) to 3048 m (10,000 ft) is applicable. No direct sunlight allowed. Upper operating limit is 3,048m (10,000 ft) or 70 Kpa/10.1 psia. Upper non-operating limit is 9,144 m (30,000 ft) or 30.3 KPa/4.4 psia.
**NOTE: Storage maximum humidity of 95% is based on a maximum temperature of 45°C (113°F). Altitude maximum for storage corresponds to a pressure minimum of 70 KPa.

Toll Free: 866.252.9743            Ph: 613.599.1287            Fax: 613.599.8120
Servers | Blades | All Hard Drives | U320 Drives | SAS/SATA Drives | Memory | Controllers | Processors | Tape Drives | Power Supplies | Misc
Home | Shopping Cart | Delivery | Forgot Password | Order By Phone | Create an Account | Add to favorites

 Controllers                        LegalPrivacy | | Backup SiteContact us | Site Problem?  |  Controllers           Controllers           Controllers
Controllers Hard Drives SAS Hard Drives u320 Hard Drives u320 Hard Drives2 processors processors2 memory tape drives Misc ipphones servers blades power supplies
