   Proliant BL35p G1 QuickSpecs  US QuickSpecs
  BL35p G1 Hard Drives   BL35p G1 Processors   BL35p G1 Memory
  BL35p G1 Controllers   BL35p G1 Networking   BL35p G1 Power Supplies
  BL35p G1 Quickspecs   BL35p G1 Quickspecs-Options   BL35p G1 Options
contents
 Overview      Standard Features      Models      Configuration Information - Factory Integrated Models (North America only)      BL35p G1 Options      BL35p G1 Memory      BL35p G1 QuickSpecs images/line.gif (50 bytes)

Proliant BL35p G1 Overview

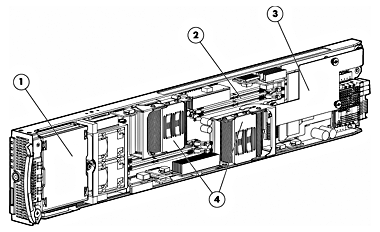

HP ProLiant BL35p Server Blade



1.
Up to two optional small form factor non-hot pluggable ATA or SAS hard disk drives
2.
Up to 16 GB of memory (using optional PC2700 DDR SDRAM)
3.
Mezzanine Card: Internal 4 Port SAS HBA (SAS models only) or optional Dual-Port Fibre Channel Adapter
4.
Up to two Dual-Core AMD® Opteron™ 200 Series processors

What's New
  • One year of 24 x 7 HP Software Technical Support and Update Service included with Insight Control management suites and select ProLiant Essentials Licenses.
  • Support for two (2) 146GB (SAS) SFF hard disk drives

At A Glance

This document covers the HP ProLiant BL35p server blade only. For more information on HP BladeSystems p-Class Infrastructure and HP BladeSystem p-Class Interconnect Components, please see the following QuickSpecs:
HP BladeSystem p-Class Infrastructure: http://h18000.www1.hp.com/products/quickspecs/12330_div/12330_div.HTML
HP BladeSystem p-Class Interconnect Components: http://h18000.www1.hp.com/products/quickspecs/12331_div/12331_div.HTML

  • Processor:
    • Up to two Dual-Core AMD® Opteron™ 200 Series processors running at 2.4 GHz, 2.2 GHz, 2.0 GHz, and 1.8 GHz with 1MB L2 cache per core and 1GHz HyperTransport (lower CPU power rating per processor: 68 watt)
    • AMD® Opteron™ 8000 series chipset
  • Memory:
    • 1024 MB (2 x 512 MB) or 2048 MB (4 x 512 MB) PC3200 DDR 400 MHz memory, expandable to 8 GB (using optional PC3200 DDR SDRAM) or 16 GB max (using optional PC2700 DDR SDRAM)
  • Storage Controller:
    • Internal 4 Port SAS HBA (on a mezzanine card) supports RAID 0 or 1
    • Dual-Port Fibre Channel Adapter (2Gb) option for SAN connectivity
  • Internal Drive Support:
    • Supports up to two optional small form factor serial attached SCSI (SAS) 146GB non-hot plug hard drives or two optional small form factor ATA 60GB non-hot plug hard drives
    • BIOS-Enhanced RAID for Linux enables both primary and secondary hard drives to be bootable
  • Network Controller:
    • Two (2) NC7781 PCI-X Gigabit NICs (on a mezzanine card)
    • One 10/100T NIC (embedded) dedicated to iLO management
  • USB Ports:
    • Local I/O cable provides two USB ports, one video port, one iLO port and serial port
  • Form Factor:
    • HP ProLiant BL35p server blade plugs vertically into HP BladeSystem p-Class Blade Sleeve; sleeve plugs into 6U blade enclosure
    • Up to 96 HP ProLiant BL35p server blades fit in 42U rack in non-redundant power configuration; up to 80 HP ProLiant BL35p server blades fit in 42U in full power redundant configuration
  • Management:
    • Integrated Lights-Out (iLO) Advanced Pack with static IP bay configuration and HP BladeSystem wizard features
  • Deployment/Serviceability:
    • Integrated Access Tool for blade management and enhanced server blade documentation including Best Practices and Common Procedures guides
  • Warranty:
    • Protected by HP Services and a worldwide network of resellers and service providers. Three-year parts, 1 year labor and 1 year on-site limited global warranty. Certain restrictions and exclusions apply. Pre-Failure Notification on processors, memory, and SCSI hard drives.
    • All ATA hard drives offered by HP carry a one year warranty regardless of the base system in which they are installed
contents
 Overview      Standard Features      Models      Configuration Information - Factory Integrated Models (North America only)      BL35p G1 Options      BL35p G1 Memory      BL35p G1 QuickSpecs images/line.gif (50 bytes)

Standard Features

NOTE: For a brief, printer friendly data sheet that describes this product and informs you of the essential capabilities and specifications, please visit: http://h71028.www7.hp.com/ERC/downloads/4AA0-1493ENW.pdf
Processors Dual-Core AMD Opteron™ processor Model 280 (2.4 GHz/1MB L2 cache/1 GHz HyperTransport, 68 Watts)
Dual-Core AMD Opteron processor Model 275 (2.2 GHz/1MB L2 cache/1 GHz HyperTransport, 68 Watts)
Dual-Core AMD Opteron processor Model 270 (2.0 GHz/1MB L2 cache/1 GHz HyperTransport, 68 Watts)
Dual-Core AMD Opteron processor Model 265 (1.8 GHz/1MB L2 cache/1 GHz HyperTransport, 68 Watts)

Upgradeability Upgradeable to dual processing

Cache Memory

1MB Level 2 Cache per core

2MB total for Dual-Core models

Chipset AMD® 8000 series chipset

Memory
One of the following depending upon model
Type PC3200 DDR 400 MHz (2 slots) 2:1 interleave
PC2700 DDR 333 MHz (2 slots) 2:1 interleave
Standard 1024 MB (2 x 512 MB)
2048 MB (4 x 512 MB)
Maximum 16 GB max (using optional 333 MHz PC2700 DDR SDRAM)
8 GB max (using optional 400 MHz PC3200 DDR SDRAM)
NOTE: Memory must be installed in pairs.
NOTE: PC2700 and PC3200 memory should not be mixed within the server blade and is not an HP supported configuration.

Network Adapter Three (3) network adapters total:
Two (2) NC7781 PCI-X Gigabit NICs (on a mezzanine card) with WOL and PXE
One 10/100T NIC (embedded) dedicated to iLO management

Expansion Slots

No PCI slots; all features are integrated.

Two (2) USB 1.1 ports, one (1) video port, one (1) iLO port and one (1) serial port
Two (2) Local I/O cables ship with each server blade enclosure with enhanced backplane components (281404-B22 and 243564-B22)
NOTE: Tested USB devices (keyboard, mouse, floppy) are listed in options section below.

Integrated Manageability

Integrated Lights-Out (iLO) Management Advanced (ASIC on the system board)


Internal Storage Hard Drives None ship standard

Maximum Internal Storage 120GB (2 x 60GB small form factor ATA, 5,400 rpm non-hot plug hard drives)
292GB (2 x 146GB small form factor SAS, 10,000 rpm non-hot plug hard drives)

Graphics Integrated ATI Rage XL Video Controller with 8 MB SDRAM Video Memory

Graphics Resolution Supported Resolution Color Depths Depths 1280 x 1024, 64k, 256,16
1024 x 768, 16.7M, 64k, 256, 16
800 x 600, 16.7M, 64k, 256, 16
640 x 480, 16.7M, 64k, 256, 16

Fibre Channel on the HP ProLiant BL35p server blade

Two optional fibre channel adapters are supported by the HP ProLiant BL35p. Both adapters are mezzanine circuit boards which connect directly to the server blade system board. These optional fiber channel adapters are available via option kits and must be ordered separately.

  • QLogic-based
    • Utilizes a QLogic ISP2312 chipset
    • The HP ProLiant BL35p Dual-Port Fibre Channel Adapter (P/N 354054-B21) is compatible with the HP ProLiant BL35p and HP ProLiant BL30p server blades. It cannot be used with an HP ProLiant BL20p, HP ProLiant BL25p, HP ProLiant BL35p SAS models, HP ProLiant BL40p, or HP ProLiant BL45p server blade.
    • Includes two small form factor pluggable transceivers with LC connectors for installation into the Patch Panel 2, CGESM or GbE2 Interconnect Switch (with the Storage Connectivity Kit)
  • Emulex-based
    • Utilizes an Emulex Thor chipset
    • The Emulex-based FC Mezzanine for HP p-Class BladeSystem dual port Fibre Channel HBA (P/N 394588-B21) is compatible with the HP ProLiant BL25p, BL30p, BL35p, and BL45p server blades. It cannot be used with an HP ProLiant BL20p, HP ProLiant BL35p SAS model, or HP ProLiant BL40p server blade as these devices take a different Emulex card.
  • Two ports on each Dual-port Fibre Channel Mezzanine Card provide a redundant Fibre Channel connection to each server blade
  • Supports up to 2Gb/s Fibre Channel equipment
  • There are no SFP's included in the Emulex mezzanine kit for use with ProLiant BL p-Class Fibre Channel pass-through interconnects. If you require SFPs for use with an Emulex mezzanine and a FC pass through interconnect please order an SFP option kit (P/N 397577-B21 397577-B21) which will provide 2 FC SFPs per option kit.

NOTE: Fibre Channel connectivity is not available on the HP ProLiant BL35p SAS models.


Compatible SAN

HP ProLiant BL35p server blades are optimized for StorageWorks arrays:

  • Modular Smart Array 1000, Enterprise Virtual Array 5000 (EVA5000) V2, Enterprise Virtual Array 3000 (EVA3000), XP48, 128, 512, 1024

HP ProLiant BL35p server blades are compatible with select 3rd party SANs. Please refer to blade storage website for details: http://h18000.www1.hp.com/products/servers/proliant-bl/p-class/storage.html


Insight Control Environment for BladeSystem

Starting July 9, 2007, HP Insight Control management suites and most HP ProLiant Essentials will include one year of 24 x 7 HP Software Technical Support and Update Service ensuring rapid access to HP support staff and proactive delivery of software updates. From more information about this service, please visit: http://www.hp.com/services/insight.

Insight Control Environment for BladeSystem delivers foundation management for HP BladeSystem lifecycles, including hardware resource deployment, health monitoring, software version control, performance monitoring, vulnerability scanning and patch management.

Installs and licenses the following components by default using a wizard-based integrated installer:

  • HP Systems Insight Manager
  • HP iLO Select Pack
  • HP Insight Power Manager
  • HP ProLiant Essentials Rapid Deployment Pack
  • HP ProLiant Essentials Performance Management Pack
  • HP ProLiant Essentials Vulnerability and Patch Management Pack
  • HP ProLiant Essentials Virtual Machine Management Pack

Additional ProLiant Essentials software and management tools included on the Insight Control Management DVD can be installed manually.

  • Server Migration Pack
  • HP Open Service Event Manager
  • HP Instant Support Enterprise Edition

NOTE: Server Migration Pack - Physical to ProLiant Edition can be installed from the SMP-P2P CD included in the Insight Control Management media kit.
NOTE: Insight Control Data Center Edition can be installed from the Insight Control Management DVD, which can be delivered with HP BladeSystem c-Class enclosures with a choice of licensing options. Licensing options include a free 30 day evaluation license for 8 servers (default option for every enclosure order), a full purchased license for 8 blade servers or a full purchased license for 16 blade servers). For additional information on HP c-Class Infrastructure please visit: HP BladeSystem c-Class Infrastructure QuickSpecs:
http://h18000.www1.hp.com/products/quickspecs/12517_div/12517_div.HTML
NOTE: For additional product and licensing information about Insight Control Environment for BladeSystem, HP Systems Insight Manager and Essentials software refer to http://www.hp.com/servers/proliantessentials


ProLiant Essentials Foundation Pack Software for the ProLiant BL Server

HP Systems Insight Manager HP Systems Insight Manager (HP SIM) provides a unified, secure and extensible environment to centrally manage servers, storage and other infrastructure devices across multiple operating system platforms.

Through a single management view, HP SIM provides core management services that include device discovery and identification, event views, health monitoring, inventory data collection, software version control and reporting. HP SIM is built on industry standards and is extensible with value-added ProLiant Essentials, Integrity Essentials and Storage Essentials software to meet individual management needs. For more details on HP SIM visit http://www.hp.com/go/hpsim.

HP SIM provides organizations with the following benefits:

  • Simplifies and consolidates infrastructure lifecycle management using task and query based functionality
  • Provides the foundation for infrastructure automation and virtualization
  • Enables IT management based on business processes not hardware platforms
  • Lowers infrastructure maintenance cost and frees resources for innovation
  • Maximizes resource utilization with virtualization technologies
  • Provides a central point of integration between infrastructure and Enterprise management tools such as HP OpenView
ProLiant Essentials Rapid Deployment Pack Rapid Deployment Pack (RDP) is an automated deployment and provisioning solution for all ProLiant servers. RDP includes the Altiris Deployment Solution and ProLiant Integration Module featuring ProLiant server pre-configured events for OS installation, and optimized software drivers, firmware and management agents. Every RDP CD includes 10-node trial licenses for evaluation purposes. RDP requires a license for each server deployed and is available for purchase with blade servers. For more information, visit http://www.hp.com/servers/rdp.
ProLiant Essentials Performance Management Pack Performance Management Pack (offered exclusively through the Insight Control suites) - a performance management solution that identifies and explains hardware performance bottlenecks on ProLiant servers and attached options enabling users to better utilize their valuable resources
Virtual Machine Management Pack Virtual Machine Management Pack - provides central management and control of virtual machines from Microsoft and VMware. Integrated approach provides the ability to manage both physical and virtual resources from a single management console.
Vulnerability and Patch Management Pack Vulnerability and Patch Management Pack (offered exclusively through the Insight Control suites) - identifies and remediates software security vulnerabilities due to missing patches as well operating system configurations that can be exploited by viruses, worms, and other blended threats.
Insight Management Agents Insight Management Agents should be installed on all HP servers to present system instrumentation, health and configuration information into HP Systems Insight Manager and the HP System Management Homepage. The HP System Management Homepage aggregates systems data from Insight Management Agents and other HP management tools, providing a consolidated browser-based interface for managing individual servers,

Insight Management Agents and The HP System Management Homepage are included on ProLiant Support Packs, and can also be installed using the server profiles provided with the ProLiant Essentials Rapid Deployment Pack. For additional information about the Management Agents and the HP System Management Homepage please visit the management Web site at http://www.hp.com/servers/manage

Subscriber's Choice Subscriber's Choice Driver and Support Alerts/Notifications is a web-based email subscription service that provides software and driver change notifications for ProLiant products. Sign up at http://www.hp.com/go/subscriberschoice
and customize your profile to receive various new alerts as they become available, on a weekly or monthly basis.
ROMPaq, support software, and
configuration utilities
The latest drivers and firmware fully optimized and tested for your ProLiant server and options, available on the RDP Media kit, SmartStart or downloadable from Software and Drivers download pages, linked from the SmartStart website at http://www.hp.com/go/support.
NOTE: For more information regarding ProLiant Essentials Software, please see the following URL: http://www.hp.com/servers/proliantessentials

Optional ProLiant Essentials Value Packs

Optional software offerings that selectively extend the functionality of an Adaptive Infrastructure to address specific business problems and needs:

  • Server Migration Pack - The Server Migration Pack automates the manual processes required for migrating servers between physical or virtual platforms (P2V, V2P, and V2V).
  • Server Migration Pack - P2P Edition - Upgrading or replacing your existing server? Effortlessly transition to new servers with automated, accurate and affordable migration of OS, application and data.
  • Virtualization Management Software - Get the most out of server virtualization by unifying the management of physical and virtual servers in HP Systems Insight Manager. The Virtual Machine Management Pack plug-in provides central management and control of VMware and Microsoft virtual machines and provides physical host to virtual machine association. The Server Migration Pack plug-in automates the manual task of migrating servers between physical or virtual platforms.
  • Vulnerability and Patch Management Pack (offered exclusively through the Insight Control suites) - identifies and remediates software security vulnerabilities due to missing patches as well operating system configurations that can be exploited by viruses, worms, and other blended threats.

Flexible and volume quantity license kits are available for ProLiant Essentials Value Packs. Refer to http://www.hp.com/servers/proliantessentials or the various ProLiant Essentials Value Pack product QuickSpecs for more information.


Optional Remote Management Packs
  • Insight Control Environment for BladeSystem - is based on HP Systems Insight Manager and ProLiant Essentials software, and brings the value of Insight Control to ProLiant customers by delivering comprehensive health and performance monitoring, remote control, vulnerability scanning and patch management as well as flexible deployment and power management through an integrated installation package and streamlined licensing. For more information, visit: http://www.hp.com/go/ice
  • Integrated Lights-Out Select Pack - upgrades the iLO 2 processor with enhanced console sharing and replay, virtual media (floppy, CD/DVD, USB key), virtual folders, historical power reporting, power capping and enterprise security (directory services and two-factor authentication) for servers managed using remote consoles available in iLO 2 Standard and iLO 2 Standard Blade Edition.
  • Insight Power Manager (IPM) - upgrades the single-server remote management capabilities of iLO Select/Advanced to include centralized reporting and policy-based management of power consumption and thermal output provided by the Insight Power Manager. IPM unifies all of this functionality within a single user interface - HP Systems Insight Manager.
  • iLO Power Management Pack for BladeSystem is energy-efficient management software that delivers centralized control, reliable security, and energy savings for your BladeSystem infrastructure. iPMP combines the total control of iLO 2 Advanced in the area of remote management with the energy monitoring and control of the Insight Power Manager to deliver a robust solution capable of full remote control and power management of ProLiant servers through a unified interface within HP Systems Insight Manager.

NOTE: Flexible and volume quantity license kits are available for ProLiant Essentials Value Packs. Refer to http://www.hp.com/servers/proliantessentials or the various ProLiant Essentials Value Pack product QuickSpecs for more information.
NOTE: Selected software packages listed here include one year of 24 x 7 Software Technical Support and Update Service. If you have any questions about this service please visit the HP website at http://www.hp.com/services/insight


SmartStart SmartStart is a tool that simplifies single server setup, providing a rapid way to deploy reliable and consistent server configurations. To obtain a copy of SmartStart for your blade server, redeem the coupon that is included with your Blade server or order your copy from the SmartStart web site. For more information, please visit the SmartStart Web site at http://www.hp.com/servers/smartstart.
SmartStart version supported (minimum): SmartStart 7.20

OS Support:
Dual-Core

1.8 GHz, 2.0 GHz, 2.2 and 2.4 GHz models

Microsoft Windows 2000 Server (licensed by core)
Microsoft Windows 2000 Advanced Server (licensed by core)
Windows Server 2003, Standard Edition
Windows Server 2003, Enterprise Edition
Red Hat Enterprise Linux
SUSE Linux Enterprise Server
Solaris 10 32/64-bit

NOTE: For a complete and up-to-date listing of supported OSs and versions, please visit our OS Support Matrix at: http://www.hp.com/go/supportos.
NOTE: For an up-to-date listing of the latest drivers available for the HP ProLiant BL p-Class, please see: http://h18023.www1.hp.com/support/files/server/us/family/model/6067.html.
NOTE: For a more complete and up-to-date information on Linux support, please visit HP Linux Web site at: http://h18000.www1.hp.com/products/servers/linux/hpLinuxcert.html
NOTE: For more Linux OS support & certification information, please visit our the ProLiant & Bladesystem Server Linux matrix http://h18004.www1.hp.com/products/servers/linux/hpLinuxcert.html


Supported Software Offerings

VMware Virtualization Software

NOTE: For more information on HP Certified and Supported HP ProLiant Servers, please visit the VMware Server Support Matrix at: http://h18004.www1.hp.com/products/servers/software/vmware/hpvmwarecert.html

Intelligent Manageability

Integrated Lights-Out (iLO) Advanced Pack

  • HP BladeSystem wizard - blade and OS installation and configuration
  • Static IP bay configuration
  • Virtual Text and Graphical Remote Console
  • Virtual CD-ROM and Virtual Floppy
  • Virtual Power Button Control
  • Dedicated LAN Connectivity
  • Automatic IP Configuration via DHCP/DNS/WINS
  • Industry Standard 128-bit Secure Sockets Layer (SSL) Security
  • IML and iLO Event Logging
  • Support for 12 user accounts with customizable access privileges

NOTE: For more information on iLO Advanced visit the website: http://www.hp.com/servers/ilo/

Automatic Server Recovery-2 (ASR-2)
HP Systems Insight Manager
Redundant ROM
Remote Flash ROM
ROM Based Setup Utility (RBSU)
Advanced Configuration and Power Interface Specification Ready (ACPI)
Server and Interconnect Switch Health Logs
Redundant Power Supply Utility
Pre-Failure Warranty (covers processors, as well as SCSI hard drives and memory)
Integrated Management Log (IML)
Network adapter teaming set-up utility

Availability Dual-Port Fibre Channel Mezzanine Card for redundant SAN connections Redundant ROM on each server blade ECC Memory Network adapter teaming (network fault tolerance, transmit load balancing, switch-assisted load balancing)

Security Power-on password
Administrator's password
Integrated Lights-Out provides user authentication via directory services or 12 customizable user accounts
Integration Lights-Out supports SSH and SSL encryption
Integrated Lights-Out can be disabled via a Global Setting

Factory Express Portfolio for Servers and Storage HP Factory Express offers configuration, customization, integration and deployment services for HP servers and storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped and deployed.

Factory Express offers service packages for simple configuration, racking, installation, complex configuration and design services as well as individual factory services, such as image loading, asset tagging, and custom packaging. HP products supported through Factory Express include a wide array of servers and storage: HP Integrity, HP ProLiant, HP ProLiant Server Blades, HP BladeSystem, HP 9000 servers as well as the MSA1000, VA7xxx, EVA, XP, rackable tape libraries and configurable network switches.

For more information on Factory Express services for your specific server model please contact your sales representative or go to http://www.hp.com/go/factory-express.


HP Enterprise Configurator The HP eCo-Enterprise Configurator now provides factory default racking for our HP hardware portfolio. This approach is aligned with our strategic direction to meet the needs and expectations of our valued customers. If you require "custom" rack configuration, please contact HP's Customer Business Center or an Authorized Partner for assistance.

Service and Support

This product is covered by a global limited warranty and supported by HP Services and a worldwide network of resellers and service providers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Additional support may be covered under the warranty or available for an additional fee. Enhancements to warranty services are available through HP Care Pack services or customized service agreements.

NOTE: Server Blade Limited Warranty includes 3 year Parts, 3 year Labor, 3-year on-site support. This warranty supports the HP ProLiant BL20p, HP ProLiant BL25p, HP ProLiant BL40p and HP ProLiant BL45p Server Blades.
NOTE: Server Blade Limited Warranty includes 3 year Parts, 1 year Labor, 1-year on-site support. This warranty supports the HP ProLiant BL30p and HP ProLiant BL35p Server Blades.
NOTE: Server Blade Enclosure Limited Warranty includes 3 year Parts, 3 year Labor, 3-year on-site support.
NOTE: Server Blade Interconnect Limited Warranty includes 3 year Parts, 3 year Labor, 3-year on-site support. Additional information regarding worldwide limited warranty and technical support is available at: http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html
NOTE: ATA drives have a 1 year warranty.

The HP Care Pack service part numbers below for ProLiant BL p-Class server blades, cover the server blade and all HP branded hardware options qualified for the server, purchased at the same time or afterwards, internal to the server

HP Care Pack services for HP BladeSystem p-Class server blade enclosure covers the enclosure including patch panels, HP supported Ethernet interconnects, power enclosure with power supplies and power distribution.

HP services provide continuous care and support expertise with committed response designed to meet your IT and business needs.

To fully capitalizing on your HP BladeSystem servers' capabilities requires a service partner who thoroughly understands your server technology and systems environment. HP Services, an industry leader in provision of multi vender support solutions provides a range of support services designed to meet the varying needs of business. Whether an SMB or large global corporation HP has a HP BadeSystem server support offer to help you speedily deploy and maximize system uptime.

Enhanced Care - Minimum recommended service support offer designed to ensure customers have access to expert assistance, whenever they need it.

  • 4-Hour On-site Service, 5-Day x 13-Hour Coverage, 3 Years.

Continuance Care - Recommended service delivering cost-effective support options designed to extend HP Services committed response and guaranteed fix times, designed to speed problem identification and resolution.

  • 4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years.

Total Care - Highest HP Support service level recommend to help increase IT performance and availability with comprehensive, integrated hardware and software services

  • Support Plus 24 - Onsite HW support 24x7, 4hr response and Microsoft O/S SW Tech support offsite, onsite at HP's discretion, 24x7 2hr response time incl. HP holidays.

Deployment Services - HP Installation and Start Up services designed to take time, risk, and worry out of the deployment of HP BladeSystem servers - and free customers IT support staff to focus on what they do best, their business.

  • Installation & Start-Up service for HP BladeSystem Infrastructure plus HP BladeSystem Enhanced Network Installation and Start-UP as per the Customer Description and/or Data Sheet. To be delivered on a scheduled basis 8am-5pm, M-F, excl. HP holidays

For a complete listing of service offerings and information visit:
http://www.hp.com/services/bladesystemservices
http://www.hp.com/go/proliant/carepack

contents
 Overview      Standard Features      Models      Configuration Information - Factory Integrated Models (North America only)      BL35p G1 Options      BL35p G1 Memory      BL35p G1 QuickSpecs images/line.gif (50 bytes)

Models

Dual-Core Models
ProLiant BL35p 2.4GHz-1MB, DC, 2GB, SAS (2P)
406024-B21
Processor(s) Two (2) Dual-Core AMD Opteron™ 200 Series processors Model 280 2.4 GHz (68 Watts) standard
Cache Memory 1MB Level 2 writeback per core
Memory 2048 MB (standard) of PC3200 DDR SDRAM 400 MHz
8 GB (maximum) of PC3200 DDR SDRAM 400 MHz
16 GB (maximum) of PC2700 DDR SDRAM 333 MHz
2-way interleaved, 4 DIMM slots
Network Adapter Two (2) NC7781 PCI-X Gigabit NICs (on a mezzanine card) with WOL and PXE
One (1) 10/100T NIC (embedded) dedicated to iLO management
Storage Controller Internal 4 Port SAS HBA (on a mezzanine card) supports RAID 0 or 1
Hard Drives None ship standard
Internal Storage Up to 292GB maximum (with optional non-hot plug SAS hard drives)
Optical Drive None
Form Factor Plugs vertically into HP BladeSystem p-Class Blade Sleeve. Blade sleeve supports 1 or 2 BL30p and BL35p blades, or any combination of BL30p and BL35p blades. Blade sleeve plugs vertically into HP BladeSystem p-Class Enhanced Server Blade Enclosure

ProLiant BL35p 2.2GHz-1MB, DC, 2GB, SAS (2P)
395222-B21
Processor(s) Two (2) Dual-Core AMD Opteron™ 200 Series processors Model 275 2.2 GHz (68 Watts) standard
Cache Memory 1MB Level 2 writeback per core
Memory 2048 MB (standard) of PC3200 DDR SDRAM 400 MHz
8 GB (maximum) of PC3200 DDR SDRAM 400 MHz
16 GB (maximum) of PC2700 DDR SDRAM 333 MHz
2-way interleaved, 4 DIMM slots
Network Adapter Two (2) NC7781 PCI-X Gigabit NICs (on a mezzanine card) with WOL and PXE
One (1) 10/100T NIC (embedded) dedicated to iLO management
Storage Controller Internal 4 Port SAS HBA (on a mezzanine card) supports RAID 0 or 1
Hard Drives None ship standard
Internal Storage Up to 292GB maximum (with optional non-hot plug SAS hard drives)
Optical Drive None
Form Factor Plugs vertically into HP BladeSystem p-Class Blade Sleeve. Blade sleeve supports 1 or 2 BL30p and BL35p blades, or any combination of BL30p and BL35p blades. Blade sleeve plugs vertically into HP BladeSystem p-Class Enhanced Server Blade Enclosure

ProLiant BL35p 1.8GHz-1MB, DC, 1GB, SAS (1P)
394876-B21

Processor(s) One (1) Dual-Core AMD Opteron™ processor Model 265 1.8 GHz (68 Watts) standard (up to 2 supported)
Cache Memory 1MB Level 2 writeback per core
Memory 1024 MB (standard) of PC3200 DDR SDRAM 400 MHz
8 GB (maximum) of PC3200 DDR SDRAM 400 MHz
16 GB (maximum) of PC2700 DDR SDRAM 333 MHz
2-way interleaved, 4 DIMM slots
Network Adapter Two (2) NC7781 PCI-X Gigabit NICs (on a mezzanine card) with WOL and PXE
One (1) 10/100T NIC (embedded) dedicated to iLO management
Storage Controller Internal 4 Port SAS HBA (on a mezzanine card) supports RAID 0 or 1
Hard Drives None ship standard
Internal Storage Up to 292GB maximum (with optional non-hot plug SAS hard drives)
Optical Drive None
Form Factor Plugs vertically into HP BladeSystem p-Class Blade Sleeve. Blade sleeve supports 1 or 2 BL30p and BL35p blades, or any combination of BL30p and BL35p blades. Blade sleeve plugs vertically into HP BladeSystem p-Class Enhanced Server Blade Enclosure

ProLiant BL35p 2.4GHz-1MB, DC, 2GB, (2P)
399601-B21

Processor(s) Two (2) Dual-Core AMD Opteron™ 200 Series processors Model 280 2.4 GHz (68 Watts) standard
Cache Memory 1MB Level 2 writeback per core
Memory 2048 MB (standard) of PC3200 DDR SDRAM 400 MHz
8 GB (maximum) of PC3200 DDR SDRAM 400 MHz
16 GB (maximum) of PC2700 DDR SDRAM 333 MHz
2-way interleaved, 4 DIMM slots
Network Adapter Two (2) NC7781 PCI-X Gigabit NICs (on a mezzanine card) with WOL and PXE
One (1) 10/100T NIC (embedded) dedicated to iLO management
Hard Drives None ship standard
Internal Storage Up to 120GB maximum (with optional non-hot plug ATA hard drives)
Optical Drive None
Form Factor Plugs vertically into HP BladeSystem p-Class Blade Sleeve. Blade sleeve supports 1 or 2 BL30p and BL35p blades, or any combination of BL30p and BL35p blades. Blade sleeve plugs vertically into HP BladeSystem p-Class Enhanced Server Blade Enclosure

ProLiant BL35p 2.2GHz-1MB, DC, 2GB (2P)
392446-B21

Processor(s) Two (2) Dual-Core AMD Opteron™ processors Model 275 2.2 GHz (68 Watts) standard
Cache Memory 1MB Level 2 writeback per core
Memory 2048 MB (standard) of PC3200 DDR SDRAM 400 MHz
8 GB (maximum) of PC3200 DDR SDRAM 400 MHz
16 GB (maximum) of PC2700 DDR SDRAM 333 MHz
2-way interleaved, 4 DIMM slots
Network Adapter Two (2) NC7781 PCI-X Gigabit NICs (on a mezzanine card) with WOL and PXE
One (1) 10/100T NIC (embedded) dedicated to iLO management
Hard Drives None ship standard
Internal Storage Up to 120GB maximum (with optional non-hot plug ATA hard drives)
Optical Drive None
Form Factor Plugs vertically into HP BladeSystem p-Class Blade Sleeve. Blade sleeve supports 1 or 2 BL30p and BL35p blades, or any combination of BL30p and BL35p blades. Blade sleeve plugs vertically into HP BladeSystem p-Class Enhanced Server Blade Enclosure

ProLiant BL35p 2.0GHz-1MB, DC, 2GB (2P)
392448-B21

Processor(s) Two (2) Dual-Core AMD Opteron™ processors Model 270 2.0 GHz (68 Watts) standard
Cache Memory 1MB Level 2 writeback per core
Memory 2048 MB (standard) of PC3200 DDR SDRAM 400 MHz
8 GB (maximum) of PC3200 DDR SDRAM 400 MHz
16 GB (maximum) of PC2700 DDR SDRAM 333 MHz
2-way interleaved, 4 DIMM slots
Network Adapter Two (2) NC7781 PCI-X Gigabit NICs (on a mezzanine card) with WOL and PXE
One (1) 10/100T NIC (embedded) dedicated to iLO management
Hard Drives None ship standard
Internal Storage Up to 120GB maximum (with optional non-hot plug ATA hard drives)
Optical Drive None
Form Factor Plugs vertically into HP BladeSystem p-Class Blade Sleeve. Blade sleeve supports 1 or 2 BL30p and BL35p blades, or any combination of BL30p and BL35p blades. Blade sleeve plugs vertically into HP BladeSystem p-Class Enhanced Server Blade Enclosure

ProLiant BL35p 1.8GHz-1MB, DC, 1GB (1P)
392450-B21

Processor(s) One (1) Dual-Core AMD Opteron™ processor Model 265 1.8 GHz (68 Watts) standard (up to 2 supported)
Cache Memory 1MB Level 2 writeback per core
Memory 1024 MB (standard) of PC3200 DDR SDRAM 400 MHz
8 GB (maximum) of PC3200 DDR SDRAM 400 MHz
16 GB (maximum) of PC2700 DDR SDRAM 333 MHz
2-way interleaved, 4 DIMM slots
Network Adapter Two (2) NC7781 PCI-X Gigabit NICs (on a mezzanine card) with WOL and PXE
One (1) 10/100T NIC (embedded) dedicated to iLO management
Hard Drives None ship standard
Internal Storage Up to 120GB maximum (with optional non-hot plug ATA hard drives)
Optical Drive None
Form Factor Plugs vertically into HP BladeSystem p-Class Blade Sleeve. Blade sleeve supports 1 or 2 BL30p and BL35p blades, or any combination of BL30p and BL35p blades. Blade sleeve plugs vertically into HP BladeSystem p-Class Enhanced Server Blade Enclosure
contents
 Overview      Standard Features      Models      Configuration Information - Factory Integrated Models (North America only)      BL35p G1 Options      BL35p G1 Memory      BL35p G1 QuickSpecs images/line.gif (50 bytes)

Configuration Information - Factory Integrated Models (North America only)

NOTE: For Configure to Order requirements within EMEA region, please consult local Sales Contact.
NOTE:
HP does not allow factory integration of options into standard models listed above.
Configure-to-order servers must start with a CTO Chassis.
NOTE: This product offering does not support HP Factory Express Server Configuration Level 1.
NOTE: FIO indicates that this option is a Factory Installable Option.

Step 1: Base Server Blade Configuration
Model HP ProLiant BL35p Configurable Model CTO Blade (North America)
382734-405
Factory Integrated Model ships with:
- One embedded 10/100T NIC for iLO
- Integrated Lights-Out (iLO) Management with Advanced Pack features

HP ProLiant BL35p SAS Configurable Model CTO Blade (North America)
398605-405

Factory Integrated Model ships with:
- Internal 4 Port SAS HBA (on a mezzanine card)
- One embedded 10/100T NIC for iLO
- Integrated Lights-Out (iLO) Management with Advanced Pack features
NOTE: HP ProLiant BL35p SAS Configurable Model CTO Blade (P/N 398605-405) does not support single-core processors.


Step 2: Choose Required Options (only one of the following from each list unless otherwise noted)
Processor Dual-Core AMD Opteron™ Model 280 2.4 GHz/68W FIO ALL
NOTE: If dual processor configurations are desired, select one 399602-B21 399602-B21 and one 399602-B21 399602-B21.
Dual-Core AMD Opteron Model 275 2.2 GHz/68W FIO ALL
NOTE: If dual processor configurations are desired, select one 392447-B21 392447-B21 and one 392447-B21 392447-B21.
Dual-Core AMD Opteron Model 270 2.0 GHz/68W FIO ALL
NOTE: If dual processor configurations are desired, select one 392449-B21 392449-B21 and one 392449-B21 392449-B21.
Dual-Core AMD Opteron Model 265 1.8 GHz/68W FIO ALL
NOTE: If dual processor configurations are desired, select one 392451-B21 392451-B21 and one 392451-B21 392451-B21.

Memory For 1 GB Total Memory:
1 GB PC3200 DDR SDRAM DIMM Memory Kit (2 x 512 MB)
For 2 GB Total Memory, choose A or B:
A) 2 GB PC3200 DDR SDRAM DIMM Memory Kit (2 x 1 GB)
B) 2 x 1 GB PC3200 DDR SDRAM DIMM Memory Kit (2 x 512 MB)
For 4 GB Total Memory, choose A or B:
A) 4 GB PC3200 DDR SDRAM DIMM Memory Kit (2 x 2 GB)
B) 2 x 2 GB PC3200 DDR SDRAM DIMM Memory Kit (2 x 1 GB)
For 8 GB Total Memory, choose A or B:
A) 8 GB PC2700 DDR SDRAM DIMM Memory Kit (2 x 4 GB)

395409-B21 395409-B21

B) 2 x 4 GB PC3200 DDR SDRAM DIMM Memory Kit (2 x 2 GB)

379300-B21 379300-B21

For 16 GB Total Memory:
2 x 8 GB PC2700 DDR SDRAM DIMM Memory Kit (2 x 4 GB)
NOTE: Two-way interleaving memory is enabled when an identical pair of DIMMs is installed.
NOTE: Maximum performance in a two processor (2P) server blade is achieved when Option B memory configurations are utilized.


Communications
NOTE: Must select one
HP ProLiant BL25/35/45p NIC Mezz FIO Base
382850-B21
Or upgrade to:
HP ProLiant BL25p/35p/45p Dual NC370i Multifunction Network Adapter
384043-B21
NOTE: NC370i adapter supports iSCSI, RDMA, TOE with applicable licenses.

NOTE: Accelerated iSCSI is not yet supported for Linux environments, and RDMA is not yet supported for Windows or Linux environments. Future support is planned for both.

NOTE: A minimum of 1 GB of memory per port is required for NC370x adapters, with a maximum of two NC370x ports permitted in a server.

Step 3: Choose Additional Options for Factory Integration
Hard Drive SAS Non-Hot Plug
HP 36GB 3G SAS 10K NHP SFF HDD
384038-B21
HP 72GB 3G SAS 10K NHP SFF HDD
384141-B21
HP 146GB 3G SAS 10K NHP SFF HDD
436649-B21
NOTE: Supported on SAS models only
ATA Non-Hot Plug
HP BL30p/BL35p 60G ATA HDD ALL
354052-B21
Fibre Channel Option Emulex-based BL25/30/35/45p Dual Port Fibre Channel HBA
NOTE: SFPs for use with pass through SAN switches not included with the Emulex-based Fibre Channel Mezzanine card. If SFPs required please order the SFP option kit (P/N 397577-B21 397577-B21) which includes 2 2Gb SFPs per option kit.
394588-B21
HP 2-2Gb SFP for Fibre Channel pass through kit
NOTE: Must select if SFP for use with pass through SAN switches is required when ordering Emulex-based Fibre Channel Mezzanine card for HP p-Class BladeSystem (p/N 394757-B21.
BL30p/BL35p Dual Port Fibre Channel Adapter
NOTE: The BL30p/BL35p Dual Port Fibre Channel Adapter is QLogic based.
354054-B21
NOTE: For additional options, including HP BladeSystem p-Class blade sleeves, enhanced server blade enclosure, interconnect options and power subsystem options please refer to the "Options" section below.
NOTE: Fibre Channel connectivity is not available on the HP ProLiant BL35p SAS model (P/N 398605-405).

NOTE: For additional options, please refer to the "Options" section below.
contents
 Overview      Standard Features      Models      Configuration Information - Factory Integrated Models (North America only)      BL35p G1 Options      BL35p G1 Memory      BL35p G1 QuickSpecs images/line.gif (50 bytes)

Options

NOTE: Some options may not be factory integratable. Please contact your local sales representative for additional information.
Unique Options HP BladeSystem p-Class Blade Sleeve Kit

354101-B21

NOTE: Each blade sleeve supports one or two HP ProLiant BL30p/HP ProLiant BL35p server blades. HP ProLiant BL30p and BL35p server blades may be mixed within the blade sleeve.

ProLiant Essentials Value Pack Software

Insight Control Environment for BladeSystem
HP Insight Control Environment for BladeSystem, No Media 1-Server License including 1 year of 24x7 Technical Support and Updates
NOTE: Contains 1 license for each of RDP, PMP, VPM, IPM and iLO Select. Includes one year of 24 x 7 HP Software Technical Support and Update Service.
NOTE: For additional License Kits, please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/12631_div/12631_div.HTML
453484-B21
ProLiant Essentials Rapid Deployment Pack
ProLiant Essentials Rapid Deployment Pack No Media 1-Server License including 1 year of 24x7 Technical Support and Updates
NOTE: This license allows 1 server to be deployed and managed via RDP.
452151-B21
NOTE: For additional ProLiant Essentials Rapid Deployment Pack License Kits please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/11053_div/11053_div.HTML
ProLiant Essentials Server Migration Pack
ProLiant Essentials Server Migration Pack, Single-Migration License
NOTE: Contains one license, enabling 1 server migration, with a unique license activation key and documentation.
NOTE: This license allows 1 server to be migrated from a physical server to a virtual machine. Or this license can be used to migrate a virtual machine from one virtualization layer i.e. VMware GSX to a different virtualization layer such as VMware ESX or Microsoft Virtual Server 2005.
435663-B21
NOTE: For additional ProLiant Server Migration Pack License Kits please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/12328_div/12328_div.HTML
Server Migration Pack - P2P
ProLiant Essentials Server Migration Pack - P2P Edition, 1- Migration License, - License Only, No Media
NOTE: This license allows 1 migration. Contains one license with a unique license activation key and documentation
NOTE: For additional License Kits, please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/12467_div/12467_div.HTML
417435-B21
ProLiant Essentials Virtual Machine Management Pack
ProLiant Essentials Virtual Machine Management Pack, No Media, 1-Server License, including 1 year of 24x7 Technical Support and Updates
NOTE: For use with a single server. Contains one license with a unique license activation key and documentation.

452153-B21
NOTE: For additional ProLiant Virtual Machine Management Pack License Kits please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/12328_div/12328_div.HTML
NOTE: Flexible and volume quantity license kits are available for ProLiant Essentials Value Packs. Refer to http://www.hp.com/servers/proliantessentials or the various ProLiant Essentials Value Pack product QuickSpecs for more information.
NOTE: For more information regarding ProLiant Essentials Software, please see the following URL: http://www.hp.com/servers/proliantessentials.

Remote Management

Insight Control Environment for BladeSystem
HP Insight Control Environment for BladeSystem, No Media 1-Server License including 1 year of 24x7 Technical Support and Updates
NOTE: Contains 1 license for each of RDP, PMP, VPM, IPM and iLO Select. Includes one year of 24 x 7 HP Software Technical Support and Update Service
453484-B21

HP Insight Control Linux Edition for HP BladeSystem HP Insight Control Linux Edition 1.6 -No Media, 1-Server License, including 1 year of 24x7 Technical Support and Updates
NOTE: This license allows one (1) server blade to be deployed and managed via HP Insight Control Linux Edition.
452155-B21
HP Insight Control Linux Edition 1.6,No Media, 8-Server License, including 1 year of 24x7 Technical Support and Updates
NOTE: This license allows eight (8) server blades to be deployed and managed via HP Insight Control Linux Edition.
452156-B21
HP Insight Control Linux Edition 1.6, No Media, Flexible-Quantity License, including 1 year of 24x7 Technical Support and Updates
NOTE: For use with multiple servers (minimum of 5). This part number allows you to specify the license quantity. When ordering this part number, the quantity ordered will be the number of licenses embedded in a single activation key. A single kit containing that key is then delivered to you.
452157-B21

Processor Dual-Core AMD Opteron™ processor Model 280 2.4 GHz/1M/68W Processor Option Kit
Dual-Core AMD Opteron processor Model 275 2.2 GHz/1M/68W Processor Option Kit
Dual-Core AMD Opteron processor Model 270 2.0 GHz/1M/68W Processor Option Kit
Dual-Core AMD Opteron processor Model 265 1.8 GHz/1M/68W Processor Option Kit
Single-Core AMD Opteron processor Model 250 2.4 GHz/1M/68W Processor Option Kit

BL35p G1 Memory 8 GB PC2700 DDR SDRAM DIMM Memory Kit (2 x 4 GB)
NOTE: Must install in pairs
4 GB PC3200 DDR SDRAM DIMM Memory Kit (2 x 2 GB)
NOTE: Must install in pairs
2 GB PC3200 DDR SDRAM DIMM Memory Kit (2 x 1 GB)
NOTE: Must install in pairs
1 GB PC3200 DDR SDRAM DIMM Memory Kit (2 x 512 MB)
NOTE: Must install in pairs

Hard Drive SAS Non-Hot Plug
HP 36GB 3G SAS 10K NHP SFF HDD
384038-B21
HP 72GB 3G SAS 10K NHP SFF HDD
384141-B21
HP 146GB 3G SAS 10K NHP SFF HDD
436649-B21
NOTE: Supported on SAS models only
ATA Non-Hot Plug
HP BL30p/BL35p 60G ATA HDD ALL
354052-B21

Communications Multifunction NIC with support for iSCSI, RDMA, TOE:
HP ProLiant BL25p/35p/45p Dual NC370i Multifunction Network Adapter
384043-B21

NOTE: NC370i adapter supports iSCSI, RDMA, TOE with applicable licenses.


NOTE: Accelerated iSCSI is not yet supported for Linux environments, and RDMA is not yet supported for Linux environments.


ProLiant BL30p/BL35p Fibre Channel Adapter Emulex-based BL25/30/35/45p Dual Port Fibre Channel HBA
394588-B21
Dual-Port Fibre Channel Adapter (2Gb) Kit (option) for HP ProLiant BL30p or HP ProLiant BL35p server blades
NOTE: This Fibre-Channel adapter is QLogic-based
NOTE: When using this adapter, Patch Panel 2, CGESM, or a GbE2 Interconnect Switch Kit (with Storage Connectivity Kit) must be used to provide pass through of the Fibre Channel signals.
354054-B21
NOTE: For additional information on HP p-Class Interconnect Kits please visit: http://h18000.www1.hp.com/products/quickspecs/12331_div/12331_div.HTML
NOTE: Fibre Channel connectivity is not available on the HP ProLiant BL35p SAS models.

HP BladeSystem p-Class Other Options HP BladeSystem p-Class Diagnostic Station
NOTE: The Diagnostic Station allows access to the HP ProLiant p-Class server blades and the BL p-Class interconnect switch outside of the server blade enclosure. The option provides power and a data interface so that "offline" upgrade and diagnostic functions may be performed.

Tape Libraries

HP StorageWorks MSL2024 Tape Library

HP StorageWorks MSL2024 1 Ultrium 960 Drive Library
AG115A AG115A
HP StorageWorks MSL2024 1 Ultrium 960 4GB FC Library
AG326B
HP StorageWorks MSL2024 1 Ultrium 920 Drive Library
AH169A
HP StorageWorks MSL2024 2 Ultrium 920 Drive Library
AH170A
HP StorageWorks MSL2024 1 Ultrium 448 Drive Library
AG116A AG116A
HP StorageWorks MSL2024 2 Ultrium 448 Drive Library
AG117A AG117A
HP StorageWorks MSL4048 Tape Library

HP StorageWorks MSL4048 1 Ultrium 448 Drive Library
AG320A
HP StorageWorks MSL4048 2 Ultrium 448 Drive Library
AG321A
HP StorageWorks MSL4048 1 Ultrium 960 Drive Library
AG322A
HP StorageWorks MSL4048 1 Ultrium 960 4GB FC Library
AG324B
HP StorageWorks MSL4048 2 Ultrium 960 Drive Library
AG323A AG323A
HP StorageWorks MSL4048 2 Ultrium 960 4GB FC Library
AG325B
HP StorageWorks MSL4048 1 Ultrium 920 Tape Library
AH171A
HP StorageWorks MSL4048 2 Ultrium 920 Tape Library AH172A
HP StorageWorks MSL6000 Tape Library
Ultrium 960 technology
HP StorageWorks MSL6030 1 Ultrium 960 Dr LVDS Library
AD606B
HP StorageWorks MSL6030 1 Ultrium 960 Dr FC Library
AD608B
HP StorageWorks MSL6030 2 Ultrium 960 Dr LVDS Library

AD607B

HP StorageWorks MSL6030 2 Ultrium 960 Dr FC Library AD609B
Ultrium 460 technology
HP StorageWorks MSL6030 1 Ultrium 460 Dr LVDS Library
AD598B
HP StorageWorks MSL6030 1 Ultrium 460 Dr FC Library
AD600B
HP StorageWorks MSL6030 2 Ultrium 460 Dr LVDS Library
AD599B
HP StorageWorks MSL6030 2 Ultrium 460 Dr FC Library AD601B
NOTE: Please reference the MSL6000 Tape Library QuickSpecs at http://www.hp.com/go/automation for additional information needed to create a complete solution; reference current compatibility information at http://www.hp.com/go/ebs
HP StorageWorks Virtual Library Systems
HP Virtual Library Systems 300 Base Unit AH138A
HP StorageWorks 1002i 2TB Virtual Library System AG124A
HP StorageWorks 6105 Virtual Library System
AF728A
HP StorageWorks 6510 Virtual Library System
AF729A
HP StorageWorks 6840 Virtual Library System AG051A
HP StorageWorks 6109 Virtual Library System AG167A
HP StorageWorks 6518 Virtual Library System AG168A
HP StorageWorks 6870 Virtual Library System AG169A
NOTE: Please reference the Virtual Library Systems QuickSpecs at http://www.hp.com/go/automation for additional information needed to create a complete solution. Reference current compatibility information at http://www.hp.com/go/ebs

HP StorageWorks Modular Smart Array 1000 HP StorageWorks Modular Smart Array 1000

201723-B22 201723-B22

NOTE: Please see the StorageWorks Modular Smart Array 1000 QuickSpecs for additional options and configuration information at:
http://h18000.www1.hp.com/products/quickspecs/11033_div/11033_div.HTML (Worldwide)


Cluster Options ProLiant Cluster Starter kit
364023-B22
NOTE: For additional information regarding the HP ProLiant Cluster Starter Kit please see the following QuickSpecs at:
http://h18000.www1.hp.com/products/quickspecs/11935_div/11935_div.html (Worldwide)

ProLiant Cluster HA/F200 for the Entry Level SAN

364026-B22

NOTE: For additional information regarding the ProLiant Cluster for Entry Level SAN please see the following QuickSpecs at:
http://h18000.www1.hp.com/products/quickspecs/11932_div/11932_div.html (Worldwide)

ProLiant Cluster HA/F500 for the Enterprise SAN

364024-B21

NOTE: For additional information regarding the ProLiant Cluster HA/F500 for Enterprise SAN please see the following QuickSpecs at:
http://h18000.www1.hp.com/products/quickspecs/11933_div/11933_div.html (Worldwide)

NOTE: For configuration/certification options for the HP Parallel Database Cluster for Oracle RAC please go to: http://www.hp.com/solutions/highavailability/oracle


HP Serviceguard for Linux, A.11.18 (single license version - Red Hat EL 4&5, SUSE SLES9&10)

305199-B27

HP Serviceguard for Linux A.11.16 for SUSE SLES9 & 10 and Red Hat EL 3 & 4 (single license version)

307754-B27

HP Serviceguard for Linux and Red Hat Global File System - 1 year subscription

T2798AA#001

HP Serviceguard for Linux and Red Hat Global File System - 3 years subscription
T2798AA#003
NOTE: For additional information regarding HP Serviceguard for Linux, please see the following QuickSpecs at:
http://h18000.www1.hp.com/products/quickspecs/11518_div/11518_div.html (Worldwide)

NOTE: For configuration/certification options for HP Serviceguard for Linux please go to: http://www.hp.com/info/sglx

USB Options USB Optical Scroll Mouse (Carbonite) DD441B
HP USB 2-Button Optical Scroll Mouse (Carbonite/Silver) DC172B DC172B
HP USB 04 Standard Keyboard DT528A#xxx
USB 2.0 4-port HUB DG954AA
NOTE: USB 2.0 devices will operate at USB 1.1 speeds.

HP Rack 5000 Series
(Graphite Carbonite)
HP 5642 Rack - Unassembled
NOTE: Please see the HP Rack 5642 QuickSpecs for additional part numbers and Technical Specifications such as height, width, depth, weight, and color:
http://h18000.www1.hp.com/products/quickspecs/12074_div/12074_div.HTML (Worldwide)
NOTE: For additional information regarding Rack Cabinets, please see the following URL: http://www.hp.com/go/rackandpower



HP Rack 10000 G2 Series (Graphite Metallic)

10642 G2 (42U) Rack Cabinet - Pallet
10642 G2 (42U) Rack Cabinet - Shock Pallet
10642 G2 (42U) Rack Cabinet - Crated
AF003A
10642 G2 (42U) Rack Cabinet, with Extension - Shock Pallet
10636 G2 (36U) Rack Cabinet - Shock Pallet
10636 G2 (36U) Rack Cabinet - Crated
10636 G2 (36U) Rack Cabinet, with Extension - Shock Pallet
10636 G2 (36U) Rack Cabinet, without door - Shock Pallet
10622 G2 (22U) Rack Cabinet - Shock Pallet
AF022A
10842 G2 (42U) 800mm Wide Rack Cabinet - Pallet
AF041A
10842 G2 (42U) 800mm Wide Rack Cabinet - Shock Pallet
AF042A
10647 G2 (47U) Rack Cabinet - Pallet
AF031A
NOTE: Please see the Rack 10000 G2 QuickSpecs for additional part numbers and Technical Specifications such as height, width, depth, weight, and color:
http://h18000.www1.hp.com/products/quickspecs/12402_div/12402_div.HTML (Worldwide)
NOTE: For additional information regarding Rack Cabinets, please see the following URL: http://www.hp.com/go/rackandpower.

HP Rack 10000 Series (Graphite Metallic)

10642 (42U) Infrastructure Rack (Low Voltage)
379006-001
10642 (42U) Infrastructure Rack (High Voltage)
HP S10614 (14U) Rack Cabinet - Shock Pallet
NOTE: xxxxxx-B22 (shock pallet) used to ship racks with equipment installed (by custom systems, VARs and Channels). xxxxxx-B23 (crated) used for air shipments of empty racks.
NOTE: It is mandatory to use a shock pallet in order to ship racks with equipment installed.
NOTE: Please see the Rack 10000 QuickSpecs for additional part number and Technical Specifications such as height, width, depth, weight, and color:
http://h18000.www1.hp.com/products/quickspecs/10995_div/10995_div.HTML (Worldwide)
NOTE: For additional information regarding Rack Cabinets, please see the following URL: http://www.hp.com/go/rackandpower.

Monitors and Keyboards

TFT7210R Rack Mounted 17" Monitor
TFT7600 Rackmount Keyboard Monitor US
TFT7600 Rackmount Keyboard Monitor UK
AG053A
TFT7600 Rackmount Keyboard Monitor GR
AG054A
TFT7600 Rackmount Keyboard Monitor FR
AG055A
TFT7600 Rackmount Keyboard Monitor IT
AG056A
TFT7600 Rackmount Keyboard Monitor SP
AG057A
TFT7600 Rackmount Keyboard Monitor DEN
AG058A
TFT7600 Rackmount Keyboard Monitor NOR
AG059A
TFT7600 Rackmount Keyboard Monitor SE/FI
AG060A
TFT7600 Rackmount Keyboard Monitor SWI
AG061A
TFT7600 Rackmount Keyboard Monitor PORT
AG062A
TFT7600 Rackmount Keyboard Monitor BEL
AG063A
TFT7600 Rackmount Keyboard Monitor JPN2
AG064A
TFT7600 Rackmount Keyboard Monitor RUS
AG065A
TFT7600 Rackmount Keyboard Monitor INTL
AG066A
1U Rackmount Keyboard with USB, US
1U Rackmount Keyboard with USB, UK
AG073A
1U Rackmount Keyboard with USB, GR
AG074A
1U Rackmount Keyboard with USB, FR
AG075A
1U Rackmount Keyboard with USB, ITL
AG076A
1U Rackmount Keyboard with USB, SP
AG077A
1U Rackmount Keyboard with USB, DEN
AG078A
1U Rackmount Keyboard with USB, NOR
AG079A
1U Rackmount Keyboard with USB, SE/FI
AG080A
1U Rackmount Keyboard with USB, SWI
AG081A
1U Rackmount Keyboard with USB, PORT
AG082A
1U Rackmount Keyboard with USB, BEL
AG083A
1U Rackmount Keyboard with USB, JPN2
AG084A
1U Rackmount Keyboard with USB, RUS
AG085A
1U Rackmount Keyboard with USB, INTL
AG086A
NOTE: For additional information regarding Rack Options, please see the following URL: http://www.hp.com/go/rackandpower.

HP KVM Switch Options

4x1x16 IP Console Switch with Virtual Media
2x1x16 IP Console Switch with Virtual Media
2x16 Server Console Switch with Virtual Media
Server Console Switch (KVM), 0 x 1 x 8
Server Console Switch (KVM), 0 x 2 x 16 port
BladeSystem p-Class KVM Interface Adapter
Serial Interface adapter - 1 Pack with power supply
NOTE: Cat5e cables are required to connect Interface Adapters to Consoles Switches. Cat52e cables can be found at the following URL: http://www.hp.com/go/kvm
NOTE: For additional information regarding KVM switches, Serial Console servers, rack mount monitors, keyboards and all related options please see the following URL: http://www.hp.com/go/kvm

HP Serial Console Server Options

HP 16 Port Serial Console Server (worldwide)
HP 48 Port Serial Console Server (worldwide)
Serial Adapter, RJ45-DB9 DCE Female, 1 Pack
Serial Adapter, RJ45-DB9 DCE Female, 8 Pack
AF110A
NOTE: Cat5e cables are required to connect Serial Adapters to Serial Console Servers. Additional Serial Adapters and Cat5e cables can be found at the following URL: http://www.hp.com/go/kvm.

Service and Support Offerings (HP Care Pack Services)

NOTE: The HP Care Pack service part numbers below for HP ProLiant BL p-Class server blades, cover the server blade and all HP branded hardware options qualified for the server, purchased at the same time or afterwards, internal to the server.

Hardware Services On-site Service

Next Business Day On-site Service, 5-Day x 9-Hour Coverage, 3 Years, Electronic
UD186E
4-Hour On-site Service, 5-Day x 13-Hour Coverage, 3 Years, Electronic
UD187E
4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic
UD188E
6-Hour Call to Repair, On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic
UD189E
NOTE: The HP Care Pack service part numbers below for HP BladeSystem p-Class server blade enclosure covers the enclosure including patch panels, HP supported Ethernet interconnects, power enclosure with power supplies and power distribution.
Hardware Services On-site Service
4-Hour On-site Service, 5-Day x 13-Hour Coverage, 3 Years, Electronic
HC031E
4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic
HC032E
6-Hour Call to Repair, On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic
HC033E
NOTE: The HP Care Pack service part numbers below covers the HP BladeSystem Brocade and McData SAN Switches.
Hardware Services On-site Service
Next Business Day On-site Service, 5-Day x 9-Hour Coverage,
3 Years, Electronic
UC007E
4-Hour On-site Service, 5-Day x 13-Hour Coverage, 3 Years, Electronic
UC008E
4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic
UC009E
6-Hour Call to Repair, On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic
UC023E
Installation & Start-up Services
HP Installation & Startup Service for HP BladeSystem Infrastructure, Electronic
NOTE: - provides for an integrated hardware and software implementation that includes remote service planning, onsite deployment of hardware and software, installation verification testing and customer orientation. Hardware deployment covers the installation of a single BladeSystem enclosure that include server blades (up to 16), Ethernet network interconnect, and power options. Software deployment covers the installation and configuration of HP Systems Insight Manager (SIM), HP Rapid Deployment Pack (RDP), and deploy up to two operating system editions of either Windows or Linux, using scripted operating system installation software
UC905E
ProLiant BL p-Class Blade Server Hardware Installation, Electronic
UA219E
ProLiant BL p-Class Enclosure and Server Blade Hardware Installation, Electronic
U4971E
Provides for the Installation and Start-up of Compaq's Rapid Deployment Pack, Electronic
NOTE: Provides installation on a Customer supplied server designated as a Deployment Server. Includes the deployment of a single server. This new server will be deployed using either one of the pre-configured scripts or an image. In addition, the service will provide for the capture and storage of the configuration of the newly deployed server and orientation on product usage. To be delivered during standard office ours, standard office days.
U5683E
Provides for the Installation and Start-up of Rapid Deployment Pack Implementation of Rapid Deployment Pack (Basic) (Electronic)
UA042E
HP ProLiant Essentials Vulnerability and Patch Management Pack, Electronic
NOTE: Installation and Startup Service. Service coverage: onsite installation of the Vulnerability and Patch Management (VPM) software on a customer designated server, configuration of the VPM software to acquire security patches, enabling the VPM software to scan up to five (5) systems, applying the security patches to the designated servers, generating a report from VPM that shows the vulnerability assessment results, and providing customer with an orientation to the software.
UC929E
Provides for the Installation and Start-up of System Insight Manager (Electronic)
UA041E
Provides for the Installation and Start-up of System Insight Manager (Electronic)
UA040E
NOTE: For more information, customer/resellers can contact http://www.hp.com/hps/.
Software Operating Environment Care Packs
Microsoft Software Operating Environment Software Telephone 9x5 - 3 incident (Electronic)
U8169E
Red Hat Software Operating Environment Software Telephone 9x5 - 10 incident (Electronic)
U3402E
SUSE Software Operating Environment Software Telephone 9x5 - 3 incident (Electronic)
U9615E
ProLiant Essentials Operating Environment, - 5 Day, 8x5,1 year, 3 incident (Electronic)
U8222E
contents
 Overview      Standard Features      Models      Configuration Information - Factory Integrated Models (North America only)      BL35p G1 Options      BL35p G1 Memory      BL35p G1 QuickSpecs images/line.gif (50 bytes)

Memory

NOTE: Memory configurations listed do not apply to "Factory Integrated Models".

DIMM installation guidelines:

  1. All DIMMs must be PC3200 DDR 400 MHz SDRAM DIMMs, or PC2700 DDR 333 MHz SDRAM DIMMS.
  2. Both DIMM slots in a memory bank must be populated.
  3. Both DIMMs in a memory bank must be identical.
  4. Processor 1 memory bank must always be populated.
  5. For optimal performance in most applications, populate the memory bank for every populated processor socket.
  6. DIMM banks are active only when the corresponding processor socket is populated.

HP ProLiant BL35p Server Blade (1P model)

Standard Memory
1024 MB of PC3200 DDR SDRAM running at 400 MHz (2 x 512 MB)

Standard Memory Replaced with Optional Memory
Up to 4096 MB of PC3200 DDR SDRAM DIMM memory is available with the removal of standard memory and the installation of optional DDR SDRAM DIMM memory expansion kits.

Up to 8192 MB of PC2700 DDR SDRAM DIMM memory is available with the removal of standard memory and the installation of optional PC2700 SDRAM DDR DIMM memory expansion kits.

NOTE: Maximum memory configuration with one processor installed using PC3200 DDR SDRAM DIMMs is 4096 MB (2 x 2048 MB), or 8192 MB using PC2700 DDR SDRAM DIMMs (2 x 4096 MB.) Second processor must be installed in order to use the 2nd bank of memory (Slots 3 and 4.) Maximum memory configuration with two processors installed using PC3200 DDR SDRAM DIMMS is 8192 MB (4 x 2048 MB), or 16384 MB using PC2700 DDR SDRAM DIMMs (4 x 4096 MB.)

BL35p G1 Memory

Slot


1
2
3
4

Standard

1024 MB

512 MB
512 MB
Empty
Empty
Optional
2048 MB
1024 MB
1024 MB
Empty
Empty
4 GB PC3200 Maximum
4096 MB
2048 MB
2048 MB
Empty
Empty
8 GB PC2700 Maximum
8192 MB
4096 MB
4096 MB
Empty
Empty


Following are memory options available from HP:


  • 8 GB PC2700 DDR SDRAM DIMM Memory Kit (2 x 4 GB)
395409-B21 395409-B21
  • 4 GB PC3200 DDR SDRAM DIMM Memory Kit (2 x 2 GB)
379300-B21 379300-B21
  • 2 GB PC3200 DDR SDRAM DIMM Memory Kit (2 x 1 GB)
376639-B21 376639-B21
  • 1 GB PC3200 DDR SDRAM DIMM Memory Kit (2 x 512 MB)
376638-B21 376638-B21

HP ProLiant BL35p Server Blade (2P model)

Standard Memory
2048 MB of PC3200 DDR SDRAM running at 400 MHz (4 x 512 MB)

Standard Memory Replaced with Optional Memory
Up to 8192 MB of PC3200 DDR SDRAM DIMM memory is available with the removal of standard memory and the installation of optional DDR SDRAM DIMM memory expansion kits.

Up to 16384 MB of PC2700 DDR SDRAM DIMM memory is available with the removal of standard memory and the installation of optional PC2700 SDRAM DDR DIMM memory expansion kits.

NOTE: Maximum memory configuration with one processor installed using PC3200 DDR SDRAM DIMMs is 4096 MB (2 x 2048 MB), or 8192 MB using PC2700 DDR SDRAM DIMMs (2 x 4096 MB.) Second processor must be installed in order to use the 2nd bank of memory (Slots 3 and 4.) Maximum memory configuration with two processors installed using PC3200 DDR SDRAM DIMMS is 8192 MB (4 x 2048 MB), or 16384 MB using PC2700 DDR SDRAM DIMMs (4 x 4096 MB.)

BL35p G1 Memory

Slot


1
2
3
4

Standard

2048 MB

512 MB
512 MB
512 MB
512 MB
Optional
4096 MB
1024 MB
1024 MB
1024 MB
1024 MB
8 GB PC3200 Maximum
8192 MB
2048 MB
2048 MB
2048 MB
2048 MB
16 GB PC2700 Maximum
16384 MB
4096 MB
4096 MB
4096 MB
4096 MB


Following are memory options available from HP:


  • 8 GB PC2700 DDR SDRAM DIMM Memory Kit (2 x 4 GB)
395409-B21 395409-B21
  • 4 GB PC3200 DDR SDRAM DIMM Memory Kit (2 x 2 GB)
379300-B21 379300-B21
  • 2 GB PC3200 DDR SDRAM DIMM Memory Kit (2 x 1 GB)
376639-B21 376639-B21
  • 1 GB PC3200 DDR SDRAM DIMM Memory Kit (2 x 512 MB)
376638-B21 376638-B21
contents
 Overview      Standard Features      Models      Configuration Information - Factory Integrated Models (North America only)      BL35p G1 Options      BL35p G1 Memory      BL35p G1 QuickSpecs images/line.gif (50 bytes)

Quickspecs

HP ProLiant BL35p Server Blade

Dimensions

Height

1.61 in (4.1 cm)
Depth 25.35 in (64.4 cm)
Width 4.72 in (12.0 cm)

Weight

Maximum
8.19 lb (3.72 kg)
No Drives Installed 7.76 lb (3.52 kg)

Temperature Range*



Operating
50° to 95° F (10° to 35° C)
Shipping
-40° to 140° F (-40° to 60° C)
Storage
-4° to 140° F (-20° to 60° C)
Maximum Wet Bulb Temperature 86° F (-30° C)
Relative Humidity**



Operating
10% to 90%
Shipping
10% to 90%
Storage
10% to 95%
*NOTE: All temperature ranges shown are for sea level. An altitude derating of 1°C per 304.8 m (1.8°F per 1,000 ft) to 3048 m (10,000 ft) is applicable. No direct sunlight allowed. Upper operating limit is 3,048 m (10,000 ft) or 70 Kpa/10.1 psia. Upper non-operating limit is 9,144 m (30,000 ft) or 30.3 KPa/4.4 psia.
**NOTE: Storage maximum humidity of 95% is based on a maximum temperature of 45°C (113°F). Altitude maximum for storage corresponds to a pressure minimum of 70 KPa.

Tape Drives, Tape Autoloaders, & Tape Libraries

NOTE: For an up-to-date listing of the latest O/S Support details for each of the Tape Drives listed below, please see the following:
http://h18000.www1.hp.com/products/quickspecs/Division/10233.html (Worldwide)

NOTE: For an up-to-date listing of the latest O/S Support details for each of the Tape Autoloaders & Tape Libraries listed below, please see the following: http://h18000.www1.hp.com/products/quickspecs/Division/10809.html (Worldwide)

NOTE: For complete listing of tape drive offerings see http://www.hp.com/products1/storage/compatibility/tapebackup/ISS/index.html

For recommended tape drive offerings for this ProLiant server see the following:


Position
Supported
Controller

Controller/HBA Option Kit Part Number

HP StorageWorks Tape Libraries, External
MSL2024 (Ultrium 448, Ultrium 920 and 960-based)
MSL4048 (Ultrium 448, Ultrium 920 and 960-based)
MSL6000 (Ultrium 960 and 460-based)
MSL6000 (SDLT 600-based)
External
Please consult the EBS connectivity matrix at http://www.hp.com/go/ebs for detailed connectivity information.
N/A

HP StorageWorks Virtual Library Systems
300 VLS
1002i VLS
6105 VLS
6109 VLS
6515 VLS
6840 VLS
6870 VLS
External

Please consult the EBS connectivity matrix at http://www.hp.com/go/ebs for detailed connectivity information.

N/A

Sillworks          Ph: 1.613.599.1287                   Fax: 1.613.599.8120
serversServers |bladesBlades | Hard DrivesU2/U3 |u320 Hard DrivesU320 |SAS/SATA Hard DrivesSAS/SATA |Fibre Hard DrivesFibre |MemoryMemory |ControllersControllers |Processors Processors |Tape DrivesTape Drives |Power SuppliesPower Supplies
Home | Shopping Cart | Delivery | Forgot Password | Order By Phone | Create an Account | Add to favorites

Legal | Privacy | | Primary Site | Contact us | Site Problem?  |
