   Proliant ML110 G2 QuickSpecs  US QuickSpecs
  ML110 G2 Hard Drives   ML110 G2 Processors   ML110 G2 Memory
  ML110 G2 Controllers   ML110 G2 Networking   ML110 G2 Power Supplies
  ML110 G2 Quickspecs   ML110 G2 Quickspecs-Options   ML110 G2 Options
contents
 Overview      Standard Features      Models      Configuration Information-Factory Integrated Models (North America only)      ML110 G2 Options      Service and Support, HP Care Pack, and Warranty Information      ML110 G2 Memory      Storage      Power Specifications      ML110 G2 QuickSpecs images/line.gif (50 bytes)

Proliant ML110 G2 Overview

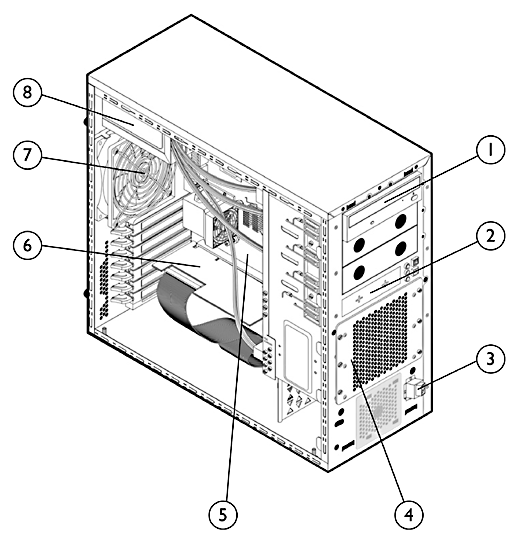

HP ProLiant ML110 G2

1. 48x CD-ROM & Two Removable Media Bays

2. 1.44MB Diskette Drive (Optional)

3. Two Front USB Ports
4. Four 1" Non-Hot Plug Drive Bays
5. Main System Board
6. Optional SCSI Controller
7. System Fan

8. Power Supply

What's New

  • Supports Intel Pentium 4 Processor. 3.20 GHz supporting HyperThreading technology with un-buffered ECC memory and 800MHz front-side-bus.
  • Supports Intel Pentium 4 Processor. 3.40 GHz supporting HyperThreading technology with un-buffered ECC memory and 800MHz front-side-bus.
  • Supports Intel Celeron Processor. 2.80 GHz supporting HyperThreading technology with un-buffered ECC memory and 533MHz front-side-bus.
  • Supports Intel Pentium 4 Processor. 3.0 GHz supporting HyperThreading technology with un-buffered ECC memory and 800MHz front-side-bus.
  • Front side USB port for easy access of storage options via USB.
  • Lights-Out Management card for ease of remote management.

At A Glance

  • Intel E7221 Chipset with 533MHz FSB (Celeron Models) and 800MHz FSB (Pentium 4)
  • Memory: Supports 256 MB, 512 MB or 1 GB (Pentium 4 models) of PC3200 DDR SDRAM running at 400 MHz, with un-buffered standard ECC capabilities, expandable to 4 GB, optional interleaving.
  • Intel 82541PI PCI Gigabit NIC (embedded) 10/100/1000 WOL (Wake on LAN)
  • Integrated one Channel Ultra ATA for optical drive and 4 port Serial ATA (SATA) Host Controller or a Single Channel Ultra320 SCSI Adapter (SCSI Models)
  • Support for up to four 1" Ultra320 non-hot plug SCSI hard drives or four 1" SATA NHP Drives or four 1" hot plug SATA HDD, (depending on Model & Accessories)
  • Five total PCI slots (5 available on non-hot plug SATA models, 4 available on SCSI models, 4 available on hot plug SATA model): three 64-bit/100MHz PCI-X at 3.3 Volt and one 32-bit/33MHz PCI at 5 Volt and one x4 PCI-Express slot.
  • Internal storage capacity of up to 584-GB (4 x 146-GB non-hot plug 1" SCSI HDD) (SCSI Models)
  • Internal storage capacity of up to 1-TB (4 x 250-GB hot plug) and 320-GB (4 x 80-GB non-hot plug) 1" SATA HDD (SATA Model)
  • Integrated ATI Rage XL with 8MB SDRAM video
  • 350W Power Supply
  • Five USB 2.0 ports (2 rear, 2 front, 1 internal for memory stick)
  • ROM Based Setup Utility (RBSU) and PXE support
  • Protected by HP Services and a worldwide network of resellers and service providers. One-year Next Business Day, on-site limited global warranty. Certain restrictions and exclusions apply. Pre-Failure Notification on processors, memory, and SCSI hard drives.
contents
 Overview      Standard Features      Models      Configuration Information-Factory Integrated Models (North America only)      ML110 G2 Options      Service and Support, HP Care Pack, and Warranty Information      ML110 G2 Memory      Storage      Power Specifications      ML110 G2 QuickSpecs images/line.gif (50 bytes)

Standard Features

Processor
One of the following depending on Model
Intel Celeron processor 2.80 GHz, 533 MHz Front Side Bus
Intel Pentium-4 processor 3.20 GHz supporting HyperThreading technology, 800MHz Front Side Bus
Intel Pentium-4 processor 3.40 GHz supporting HyperThreading technology, 800MHz Front Side Bus

Cache Memory
One of the following depending on Model
Integrated 256KB Level 2 ECC cache (Celeron models only)
Integrated 1024KB Level 2 ECC cache (Pentium 4 models only)

Memory Protection Un-buffered standard ECC capabilities

ML110 G2 Memory
One of the following depending on Model
Type PC3200 DDR SDRAM running at 400MHz
Standard 256 MB
(on Pentium-4 or Celeron models)
Maximum 4 GB

Network Controller Intel 82541PI PCI Gigabit NIC (embedded) 10/100/1000 WOL (Wake on LAN)

Expansion Slots
Slot#
Bus Speed
Hot Plug Y/N
Voltage Connector
Notes
3
64bit/100MHz PCI-X
No
3.3V
Full Length / Full Height
1
x4 PCI Express
No
3.3V
Full Length / Full Height
1
32bit/33MHz PCI
No
5V
Full Length / Full Height

Storage Controller
One of the following depending on Model
HP Single Channel Ultra320 SCSI Adapter (SCSI Models)
Integrated 4 ports Serial ATA
6 port SATA RAID controller (hot plug SATA Model)

Storage CD-ROM 48x IDE (ATAPI) CD-ROM Drive
Hard Drives One of the following:

  • 36.4-GB Ultra320 SCSI 15,000 rpm 1" Drive (SCSI models)
  • 80-GB SATA 7200 rpm 1" Drive (Hot Plug and Non-Hot plug SATA Models)

Maximum Internal Storage Type

SCSI
584-GB (4 x 146-GB)
SATA
(Hot plug)
1-TB (4 x 250-GB - internal drive bays and removable media bays)
SATA
(Non-hot plug )
320-GB (4 x 80-GB)

Interfaces Parallel 1
Serial 1
Pointing Device (Mouse, PS2) 1
Graphics 1
Keyboard (PS2) 1
USB 5 (2 rear, 2 front panel, 1 internal for memory stick)
NOTE: Please see the following URL for additional information regarding USB support:
http://h18004.www1.hp.com/products/servers/platforms/usb-support.html
Network RJ-45 (Ethernet) 1

Graphics Integrated ATI RAGE XL Video Controller with 8MB SDRAM Video Memory

Form Factor Tower (5U)

Industry Standard Compliance ACPI V2.0 Compliant
PCI 2.3 Compliant

Manageability Lights-Out 100 Remote Management Option; For details on the HP Lights-Out 100 Remote Management option see Lights-Out 100 Remote Management Card
Offline Version - "floppy-based" method to flash the rom

Security Power-on password
Setup password
Diskette boot control

Server Power Cords One Lowline NEMA power cord and one Highline IEC Power cord ships standard

Power Supply 350 Watts

System Fans 1 - non-redundant system fan shipped standard
1 - non-redundant CPU heatsink fan shipped standard

OS Support Microsoft Windows Server 2003: Standard and Web Editions
Microsoft Windows Small Business Server 2003 : Standard & Premium Edition
Novell NetWare 6.5
Novell SBS 6.5
SUSE Linux Enterprise Server 9
Red Hat Enterprise Linux 3
SCO Open Server 5.0.7 (SCSI models only)
Tested but not certified nor supported by HP:
Windows 2000 Server - Standard Edition
Windows XP Professional
Red Hat Linux Advanced Server 4.0
NOTE: For an up-to-date listing of the latest ML110 G2 OS support matrix, please see:
http://www.hp.com/go/supportos
NOTE: For an up-to-date listing of the latest drivers available for the HP server ML110 G2, please see: http://h18023.www1.hp.com/support/files/server/us/family/model/5769.html?lang=en&cc=us

Factory Express Portfolio for Servers and Storage HP Factory Express offers configuration, customization, integration and deployment services for HP servers and/or storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped and deployed.

Factory Express offers service packages for simple configuration, racking, installation, complex configuration and design services as well as individual factory services, such as image loading, asset tagging and custom packaging HP products supported through Factory Express include a wide array of servers and storage: HP Integrity, HP ProLiant, HP ProLiant Server Blades, HP BladeSystem, HP 9000 servers, as well as, the MSA1000, VA7xxx, EVA, XP, rackable tape libraries and configurable network switches.

For more information on Factory Express services for your specific server model please contact your sales representative or go to http://www.hp.com/go/factory-express.

Service and Support This product is covered by a global limited warranty and supported by HP Services and a worldwide network of resellers and service providers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Additional support may be covered under the warranty or available for an additional fee. Enhancements to warranty services are available through HP Care Pack services or customized service agreements.

NOTE: Limited warranty includes 1 year parts, 1 year labor, 1-year on-site support

Care Pack services provide a range of life cycle support options that let you choose the service levels that meet your business requirements, from basic to mission-critical.

A full range of HP Care Pack hardware and software services are available including:

  • Installation and start up
  • Education courses
  • Extended onsite hardware coverage hours from same business day 13 hours, 5 day to 24 hours, 7 days call window with options including 4-hour response or 6-hour Call To Repair
  • Comprehensive range of software technical support for Microsoft, Linux, ProLiant Essentials and VMware-based IT solutions helping to deliver high level of application availability. Response times range from 30 mins for critical problems to 2 hours.
  • System Management, Performance Services and Mission Critical Support Solution

HP Care Pack services include coverage for the HP branded hardware options qualified for the server, purchased at the same time or afterward, internal to the enclosure, as well as 22" and smaller external monitors and tower UPS options up to 3kVA; these items will be covered at the same service level and for the same coverage period as the server. Coverage of UPS Battery is not included, standard warranty terms & conditions apply. For servers or storage systems installed within a rack, service also covers all HP qualified rack options installed within the same rack.

NOTE: For more information on HP Care Pack services, contact any of our worldwide sales offices or resellers or visit our worldwide Web site on the internet at: http://www.hp.com/hps/carepack
NOTE: For more complete information on HP Services offerings, customers and resellers, please visit us at: http://www.hp.com/hps
NOTE: Additional information regarding worldwide limited warranty and technical support is available at: http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html
contents
 Overview      Standard Features      Models      Configuration Information-Factory Integrated Models (North America only)      ML110 G2 Options      Service and Support, HP Care Pack, and Warranty Information      ML110 G2 Memory      Storage      Power Specifications      ML110 G2 QuickSpecs images/line.gif (50 bytes)

Models

ML110 G2 C2.8/533 256MB, 80GB, Non-Hot Plug SATA
366084-xx1
Processor (1) Intel Celeron 2.8 GHz (standard)
Cache Memory Integrated 533KB Level 2 cache
Memory 256 MB (Standard) to 4 GB (Maximum) PC3200 DDR SDRAM DIMM Memory running at 200MHz, with Standard ECC capabilities
Network Controller Intel 82541PI PCI Gigabit NIC (embedded) 10/100/1000 WOL (Wake on LAN)
Storage Controller
4 ports SATA Controller
Hard Drive (1) 80-GB SATA up to 320-GB
Optical Drive 48x IDE (ATAPI) CD-ROM Drive
Form Factor Tower (5U)

ML110 G2 P3.2/800,
1MB, 36GB, Non-Hot Plug SCSI

366087-xx1
Processor (1) Intel Pentium 4 3.20 GHz supporting HyperThreading technology (standard)
Cache Memory Integrated 1024KB Level 2 cache
Memory 256 MB (Standard) to 4 GB (Maximum) PC3200 DDR SDRAM DIMM Memory running at 400MHz, with Standard ECC capabilities
Network Controller Intel 82541PI PCI Gigabit NIC (embedded) 10/100/1000 WOL (Wake on LAN)
Storage Controller HP Single Channel Ultra320 SCSI Adapter
Hard Drive (1) 36-GB Ultra320 SCSI, 15,000 rpm,1" Drive
SCSI Cable 2 drop internal SCSI cable
Internal Storage 584-GB maximum
Optical Drive 48x IDE (ATAPI) CD-ROM Drive
Form Factor Tower (5U)

ML110 G2 P3.4/800 1MB, 36GB Non-Hot Plug SCSI
366088-xx1
Processor (1) Intel Pentium 4 3.40 GHz supporting HyperThreading Technology
Cache Memory Integrated 1024KB Level 2 cache
Memory 256 MB (Standard) to 4 GB (Maximum) PC3200 DDR SDRAM DIMM Memory running at 400MHz, with Advanced ECC Capabilities
Network Controller Intel 82541PI PCI Gigabit NIC (embedded) 10/100/1000 WOL (Wake on LAN)
Storage Controller HP Single Channel Ultra320 SCSI Adapter
Hard Drive (1) 36.4-GB Ultra320 SCSI 15,000 rpm, 1" Drive
SCSI Cable 2 drop internal SCSI cable
Internal Storage 584-GB Maximum (with optional drives)
Optical Drive 48x IDE (ATAPI) CD-ROM Drive
Form Factor Tower (5U)

ML110 G2 P3.2/800 1MB, Hot Plug SATA
366089-xx1
Processor (1) Intel Pentium 4 3.20 GHz supporting HyperThreading technology (standard)
Cache Memory Integrated 1024KB Level 2 cache
Memory 256 MB (Standard) to 4 GB (Maximum) PC3200 DDR SDRAM DIMM Memory running at 400MHz, with Standard ECC capabilities
Network Controller Intel 82541PI PCI Gigabit NIC (embedded) 10/100/1000 WOL (Wake on LAN)
Storage Controller HP 6-Port SATA RAID Controller (RAID levels 0, 1, 10, 5)
Hard Drive None ship standard
SATA Cable (1) 4 in 1" SATA cable
Internal Storage 1-TB Maximum
Optical Drive 48x IDE (ATAPI) CD-ROM Drive
Form Factor Tower (5U)

ML110 G2 P3.4/800 1MB Hot Plug SATA
366090-xx1
Processor (1) Intel Pentium 4 3.40 GHz supporting HyperThreading technology (standard)
Cache Memory Integrated 1024KB Level 2 cache
Memory 256 MB (Standard) to 4 GB (Maximum) PC3200 DDR SDRAM DIMM Memory running at 400MHz, with Standard ECC capabilities
Network Controller Intel 82541PI PCI Gigabit NIC (embedded) 10/100/1000 WOL (Wake on LAN)
Storage Controller HP 6-port SATA RAID Controller (RAID levels 0, 1, 10, 5)
Hard Drive None ship standard
Internal Storage 1-TB maximum
Optical Drive 48x IDE (ATAPI) CD-ROM Drive
Form Factor Tower (5U)

ML110 G2 P3.2/800 1MB, 80GB, Non-Hot Plug SATA
382050-xx1
Processor (1) Intel Pentium 4 3.20 GHz supporting HyperThreading technology (standard)
Cache Memory Integrated 1024KB Level 2 cache
Memory 256 MB (Standard) to 4 GB (Maximum) PC3200 DDR SDRAM DIMM Memory running at 400MHz, with Advanced ECC capabilities
Network Controller Intel 82541PI PCI Gigabit NIC (Embedded) 10/100/1000 WOL (Wake on LAN)
Storage Controller 4 ports SATA Controller (embedded)
Hard Drive (1) 80-GB Serial ATA
Internal Storage 320-GB maximum
Optical Drive 48x IDE (ATAPI) CD-ROM Drive
Form Factor Tower (5U)

ML110 G2 P3.4/800 1MB, 80GB, Non-Hot Plug SATA
382051-xx1
Processor (1) Intel Pentium 4 3.40 GHz supporting HyperThreading technology (standard)
Cache Memory Integrated 1024KB Level 2 cache
Memory 256 MB (Standard) to 4 GB (Maximum) PC3200 DDR SDRAM DIMM Memory running at 400MHz, with Advanced ECC capabilities
Network Controller Intel 82541PI PCI Gigabit NIC (embedded) 10/100/1000 WOL (Wake on LAN)
Storage Controller 4 ports SATA Controller (embedded)
Hard Drive (1) 80 GB Serial ATA
Internal Storage 320-GB maximum
Optical Drive 48x IDE (ATAPI) CD-ROM Drive
Form Factor Tower (5U)

Country Code Key XX=00 NA
XX=01 Australia
XX=03 UK
XX=04 Germany
XX=05 France
XX=20 Brazil
XX=37 AP
XX=42 Euro
XX=AA PRC
contents
 Overview      Standard Features      Models      Configuration Information-Factory Integrated Models (North America only)      ML110 G2 Options      Service and Support, HP Care Pack, and Warranty Information      ML110 G2 Memory      Storage      Power Specifications      ML110 G2 QuickSpecs images/line.gif (50 bytes)

Configuration Information-Factory Integrated Models (North America only)

NOTE: For Configure to Order requirements within EMEA region, please consult local Sales Contact.
NOTE:
HP does not allow factory integration of options into standard models listed above.
Configure-to-order servers must start with a CTO Chassis.

NOTE: This product offering does not support HP Factory Express Server Configuration Level 1.

Step 1: Base Configuration
Models HP ProLiant ML110 G2 Tower Chassis NHP SCSI (North America)
380184-405
HP ProLiant ML110 G2 Tower Chassis NHP SATA (North America)

380185-405

HP ProLiant ML110 G2 Tower Chassis HP SATA (North America)

380186-405

Factory Integrated Models ship with:
Intel 82541PI PCI Gigabit NIC (embedded) 10/100/1000 WOL (Wake on LAN)
Serial ATA Host controller, Data transfer rates up to 1.5Gb/s
Keyboard and Mouse
350 Watts, PFC (Power Factor Correcting)
Tower 5U Form Factor

Step 2: Choose Required Options (only one of the following from each list unless otherwise noted)
Processors Celeron Processor 2.80 GHz/400MHz Front Side Bus, Factory Integration only
383872-B21
Pentium Processor 3.20 GHz/ 800MHz Front Side Bus, Factory Integration only
383871-B21
Pentium Processor 3.40 GHz/ 800MHz Front Side Bus, Factory Integration only
383869-B21
Pentium Processor 3.0 GHz/ 800MHz Front Side Bus, Factory Integration only 390813-B21

Base Memory 256 MB of Advanced ECC PC3200 DDR SDRAM DIMM Memory Kit (1 x 256 MB)
354557-B21
512 MB of Advanced ECC PC3200 DDR SDRAM DIMM Memory Kit (1 x 512 MB)
354560-B21 354560-B21
1024 MB of Advanced ECC PC3200 DDR SDRAM DIMM Memory Kit (1 X 1024 MB) 354563-B21 354563-B21

Base Hard Drives 72-GB 10,000 rpm, U320 Non-Hot Plug Hard Drive (1")
146-GB 10,000 rpm, U320 Non-Hot Plug Hard Drive (1")
NOTE: Must also select the U320 SCSI HBA Base (358700-B21) if choosing SCSI drive.
80-GB NHP SATA 1.5Gb 7,200 rpm Hard Drive (1")
80-GB SATA 1.5Gb 7,200 rpm Hard Drive (3.5")
160-GB SATA 1.5Gb 7,200 rpm Hard Drive (3.5")
250-GB SATA 1.5Gb 7,200 rpm Hard Drive (3.5")
NOTE: Must also select one HP SATA Hard Drive Cable (P/N 385856-B21) for each SATA hard drives selected
HP SATA ML110G2 Cable FIO
NOTE: Must also select one SATA Cable for each SATA Hard drive selected
385856-B21

Optical Drives CD-RW/DVD-ROM Combo Drive Option Kit
DVD-ROM Drive Option Kit
HP ProLiant 48X CD w/SCREWS
337863-B21

Step 3: Choose Additional Factory Integratable Options
Controller HP ML110 G2 U320 SCSI FIO HBA ALL
NOTE: Must select if SCSI hard drives are chosen in step 2.
358700-B21

Step 4: Choose Additional Options for Factory Integration
NOTE: For additional options, please refer to the "Options" section below.
contents
 Overview      Standard Features      Models      Configuration Information-Factory Integrated Models (North America only)      ML110 G2 Options      Service and Support, HP Care Pack, and Warranty Information      ML110 G2 Memory      Storage      Power Specifications      ML110 G2 QuickSpecs images/line.gif (50 bytes)

Options

NOTE: Some options may not be factory integratable. Please contact your local sales representative for additional information.
Memory 1024 MB Advanced ECC PC3200 DDR SDRAM DIMM Memory Kit (1 x 1024 MB)
512 MB Advanced ECC PC3200 DDR SDRAM DIMM Memory Kit (1 x 512 MB)
256 MB Advanced ECC PC3200 DDR SDRAM DIMM Memory Kit (1 x 256 MB)
354557-B21

Optical Drives CD-RW/DVD-ROM Combo Drive Option Kit
48X CD-ROM Option, Carbon
337863-B21
1.44 MB Diskette Drive via USB
DC361B

ML110 G2 Hard Drives Ultra320 SCSI - Non-Hot Plug
36 .4-GB 15,000 rpm, U320 Non-Hot Plug Hard Drive (1")
72 .8-GB 10,000 rpm, U320 Non-Hot Plug Hard Drive (1")
146.8-GB 10,000 rpm, U320 Non-Hot Plug Hard Drive (1")
Serial - ATA (SATA)- Non-Hot Plug
80-GB ATA/100 7,200 rpm Non-Hot Plug Drive (1")
Serial-ATA (SATA) Hard Drive (Hot Plug SATA Models Only)
80-GB SATA 1.5Gb 7,200 RPM Hard Drive (3.5")
160-GB SATA 1.5Gb 7,200 RPM Hard Drive (3.5")
250-GB SATA 1.5Gb 7,200 RPM Hard Drive (1")
HP 2 Port SATA RAID Cable All
NOTE: Must select one SATA RAID Cable when choosing 1or 2 SATA Hard Drives. Must select two SATA RAID Cables when choosing 3 or more SATA Hard Drives.
379093-B21

HP External 160GB HDD HP External Backup Solution by Seagate (North America)
372914-001
HP External Backup Solution by Seagate (EU)
372914-011

Internal Cable Options
HP Internal SAS/SATA Target Fan Cable
389653-B21
HP Internal 2-Port SATA RAID Cable Kit
379093-B21
NOTE: The SAS cable supports four drives without an expander. Two cables are required when more than four drives are installed. SAS Internal Cables are typically supplied with the server. Refer to server documentation for details.

Storage Controllers - SCSI Drives 64-Bit/133-MHz Single Channel Ultra320 SCSI HBA G2
NOTE: PCI-X Interface
HP PL100 SCSI RAID Controller
NOTE: PCI-X Interface
HP 6-Port SATA RAID Controller
NOTE: PCI-X Interface
HP 2-Port SATA RAID Cable
379093-B21
64-Bit/133-MHz Single Channel Ultra320 SCSI HBA
365289-B21
NOTE: SCSI Storage Controllers are qualified for SCSI drives only and do not support the SATA Drives.
SATA Storage Controllers are qualified for SATA drives only and do not support the SCSI Drives.


Communications HP NC320T PCI Express Gigabit Server Adapter
HP NC1020 PCI 1000T Gigabit Server Adapter
HP NC150T PCI 4-port 1000T Gigabit Combo Switch Adapter
Modem adapter option kit localizations -
NOTE: RJ11 Modem adapter kit country/network-specific telecoms adapter for use with DC131B, DC132B or DC132C modems
DC131C-xx
Modem adapter option kit Country Code Key
#ACP=
Austria
#ABZ=
Italy
#ABW=
Belgium (Dutch/Flemish)
#ABH=
Netherlands
#AKN=
Bosnia, Herzegovina, Croatia, Slovenia, Yugoslavia (Slovenian)
#UUW=
Nordic Region
#AKB=
Czech Republic (Czech) & Slovakia
#ACB=
Russia
#ABF=
France
#ACQ=
South Africa
#ABD=
Germany
#ACD=
Switzerland
#AB7=
Greece
#AB8=
Turkey
#AKC=
Hungary
#ABU=
UK
#ABT=
Israel
#ABG=
Australia, New Zealand

#ACJ=
India

Tape Backup Drives

NOTE: For complete listing of tape drive offerings see: http://www.hp.com/products1/storage/compatibility/tapebackup/ISS/index.html

For recommended tape drive offerings for this ProLiant server see the following:
NOTE: For complete listing of tape drive offerings see: http://www.hp.com/products1/storage/compatibility/tapebackup/ISS/index.html

For recommended tape drive offerings for this ProLiant server see the following:
USB Tape Drives
HP StorageWorks DAT 40 USB Internal Tape Drive (Carbonite)
DW022A
HP StorageWorks DAT 72 USB Internal Tape Drive (Carbonite)
DW026A
DAT Tape Drives - Internal
HP StorageWorks DAT 24 SCSI Internal Tape Drive (Flint)
HP StorageWorks DAT 40 SCSI Internal Tape Drive (Carbon)
HP StorageWorks DAT 72 SCSI Internal Tape Drive (Carbon)
Q1522B
Ultrium Tape Drives - Internal/External
HP StorageWorks Ultrium 232 Internal Tape Drive (Carbonite)
HP StorageWorks Ultrium 232 External Tape Drive (Carbonite)
DW065A
NOTE: Installation of DAT40 or DAT72 Internal DAT Drives in a ML110 G2 SATA model requires SCSI controller kit (PN: 374654-B21 374654-B21).
NOTE: Installation of DAT40 or DAT72 DAT Drives in a ML110 G2 SATA model requires SCSI controller kit (PN: 374654-B21 374654-B21).

Rack Enabling Kit ProLiant Rack Enabling Kit
238547-B22

Lights Out Management Card Lights-Out Management Card Kit
383064-B21

Other Internal SCSI Cable Option Kit, 4 drops
NOTE: To be used when adding additional hard disk drives or a tape back-up drive.
166389-B21
Internal SCSI Cable Option Kit, 2 drops
NOTE: To be used when adding additional hard drives or a tape back-up drive.

273463-B21
contents
 Overview      Standard Features      Models      Configuration Information-Factory Integrated Models (North America only)      ML110 G2 Options      Service and Support, HP Care Pack, and Warranty Information      ML110 G2 Memory      Storage      Power Specifications      ML110 G2 QuickSpecs images/line.gif (50 bytes)

Service and Support, HP Care Pack, and Warranty Information

Service and Support Offerings (HP Care Pack Services)
Hardware Services 4-Hour On-site Service
13-Hour x 5-Day Coverage, 3 Years, Electronic
U4434E
24-Hour x 7-Day Coverage, 3 Years, Electronic
U4435E
Hardware Services Next Business Day On-Site Service
9-Hour x 5-Day Coverage, 3 Years, Electronic
U4433E
Hardware Installation, Electronic
U4444E
NOTE: For more information, customer/resellers can contact http://www.hp.com/services/carepack.
contents
 Overview      Standard Features      Models      Configuration Information-Factory Integrated Models (North America only)      ML110 G2 Options      Service and Support, HP Care Pack, and Warranty Information      ML110 G2 Memory      Storage      Power Specifications      ML110 G2 QuickSpecs images/line.gif (50 bytes)

Memory

HP ProLiant ML110 G2 Celeron and Pentium 4 Models
Standard Memory
256 MB of PC3200 DDR SDRAM running at 400MHz, with Advanced ECC capabilities Memory installed (1 x 256 MB SDRAM DIMM).
Standard Memory Plus Optional Memory
Up to 3328 MB memory is available with the optional installation of PC3200 Registered un-buffered ECC DDR SDRAM DIMM Memory kits.
Standard Memory Replaced with Optional Memory
Up to 4096 MB of memory is available with the removal of the standard 256 MB of memory and the optional installation of PC3200 Registered un-buffered ECC DDR SDRAM DIMM Memory kits.
NOTE: Charts do not represent all possible memory configurations.

ML110 G2 Memory
Slot

4
3
2
1
Standard 256 MB
Empty
Empty
Empty
256 MB
Optional 3328 MB
1024 MB
1024 MB
1024 MB
256 MB
Maximum 4096 MB
1024 MB
1024 MB
1024 MB
1024 MB
Following are memory options available from HP:
  • 256 MB Advanced ECC PC3200 DDR SDRAM DIMM Memory Kit (1 x 256 MB)
354557 -B21
  • 512 MB Advanced ECC PC3200 DDR SDRAM DIMM Memory Kit (1 x 512 MB)
354560 -B21
  • 1024 MB Advanced ECC PC3200 DDR SDRAM DIMM Memory Kit (1 x 1024 MB)
354563 -B21

HP server ML110 G2 Pentium 4 SBS Models
Standard Memory
512 MB of PC3200 DDR SDRAM running at 400MHz, with Advanced ECC capabilities Memory installed (1 x 512 MB SDRAM DIMM).
Standard Memory Plus Optional Memory
Up to 3584 MB memory is available with the optional installation of PC3200 un-buffered ECC DDR SDRAM DIMM Memory kits.
Standard Memory Replaced with Optional Memory
Up to 4096 MB of memory is available with the removal of the standard 512 MB of memory and the optional installation of PC3200 un-buffered ECC DDR SDRAM DIMM Memory kits.
NOTE: Charts do not represent all possible memory configurations.

ML110 G2 Memory
Slot

4
3
2
1
Standard 512 MB
Empty
Empty
Empty
512 MB
Optional 3584 MB
1024 MB
1024 MB
1024 MB
512 MB
Maximum 4096 MB
1024 MB
1024 MB
1024 MB
1024 MB
Following are memory options available from HP:
  • 256 MB Advanced ECC PC3200 DDR SDRAM DIMM Memory Kit (1 x 256 MB)
354557-B21
  • 512 MB Advanced ECC PC3200 DDR SDRAM DIMM Memory Kit (1 x 512 MB)
  • 1024 MB Advanced ECC PC3200 DDR SDRAM DIMM Memory Kit (1 x 1024 MB)
contents
 Overview      Standard Features      Models      Configuration Information-Factory Integrated Models (North America only)      ML110 G2 Options      Service and Support, HP Care Pack, and Warranty Information      ML110 G2 Memory      Storage      Power Specifications      ML110 G2 QuickSpecs images/line.gif (50 bytes)

Storage

A
48x IDE (ATAPI) CD-ROM
B, C, D
Removable Media Bays (1.6" each)
D
1.44 MB Diskette Drive (Optional)
0, 1, 2, 3
Four 1" Non-Hot Plug Drive Bays, or Four Hot Plug Drive Bays (SATA model only)


Drive Support



Quantity
Supported

Position
Supported


Controller

Removable Media


1.44-MB Diskette Drive
1
D
Integrated
DVD-ROM Drive Up to 2 A, B or C Integrated IDE (ATAPI)

ML110 G2 Hard Drives (SCSI Models only)
Ultra 320 SCSI - Non-Hot Plug


Quantity
Supported

Position
Supported


Controller

1-inch
36.4-GB
72.8-GB
146.8-GB
Up to 4 0, 1, 2 or 3 Hot Plug Single Channel Ultra320 SCSI Adapter (SCSI Models)

ML110 G2 Hard Drives (SATA Models only)
SATA 1.5Gb - Non-Hot Plug


Quantity
Supported

Position
Supported


Controller

1-inch
80.0-GB
Up to 4 0, 1, 2 or 3

ML110 G2 Hard Drives (SATA Models only)
SATA - Hot Plug


Quantity
Supported

Position
Supported


Controller

1-inch
80.0-GB
160.0-GB
250.0-GB
Up to 4 0, 1, 2 or 3 4 Port SATA RAID Controller (SATA Model)

Maximum Storage Capacity - SCSI Models
Internal 584-GB (4 x 146-GB non-hot-plug hard drives)
Total 584-GB
Maximum Storage Capacity - Non-Hot Plug SATA Models
Internal 320-GB (4 x 80-GB non-hot-plug hard drives)
Total 320-GB
Maximum Storage Capacity - Hot Plug SATA Models
Internal 1-TB (4 x 250-GB hot-plug hard drives)
Total 1-TB

Tape Drives
NOTE: A SCSI controller needs to be purchased to operate internal SCSI devices in the ATA Models.
NOTE: For an up-to-date listing of the latest O/S Support details for each of the Tape Drives listed below, please see the following:
http://h18000.www1.hp.com/products/quickspecs/North_America/10233.html (North America)
http://h18000.www1.hp.com/products/quickspecs/Division/10233.html (Worldwide)


Quantity
Supported

Position
Supported


Controller

HP DAT24 Up to 1 C HP Single Channel Ultra320 SCSI HBA
HP DAT40
Up to 1 C HP Single Channel Ultra320 SCSI HBA
HP DAT72 Up to 1 C HP Single Channel Ultra320 SCSI HBA
contents
 Overview      Standard Features      Models      Configuration Information-Factory Integrated Models (North America only)      ML110 G2 Options      Service and Support, HP Care Pack, and Warranty Information      ML110 G2 Memory      Storage      Power Specifications      ML110 G2 QuickSpecs images/line.gif (50 bytes)

Power Specifications

Part Number 377580-001
Spare Kit 382097-001
Operational Input Voltage Range (V rms) 90 to 135 and 180 to 5 V auto ranging
Frequency Range (Nominal) (Hz) 47 to 63 Hz




Nominal Input Voltage (Vrms)
100
115
208
220
230
240
Max Rated Output Wattage Rating
N/A
350
N/A
N/A
350
N/A
Nominal Input Current (A rms)
N/A
8
N/A
N/A
4
N/A
Max Rated Input Wattage Rating (Watts)
N/A
N/A
N/A
N/A
N/A
N/A
Max. Rated VA (Volt-Amp)
N/A
N/A
N/A
N/A
N/A
N/A

Efficiency (%)

N/A
>65%
N/A
N/A
>65%
N/A

Power Factor

N/A
N/A
N/A
N/A
N/A
N/A

Leakage Current (mA)

0.25mA (at 60HZ)
N/A
N/A
N/A
N/A
N/A

Maximum Inrush Current (A peak)

N/A
No component was damaged and input fuse shall not blow
N/A
N/A
No component was damaged and input fuse shall not blow
N/A

Maximum Inrush Current duration (mS)

N/A
N/A
N/A
N/A
N/A
N/A

System Specifications

  Power **
HP ProLiant ML110 G2 Fully Configured (see **)
Fully Loaded System output Wattage (W) 350W
Fully Loaded System Input Current (A rms) 4.87A @ 115V, 2.43A @ 230V
Fully Loaded System Thermal (BTU- Hr) 1907BTU
Fully Loaded System VA (Volt-Amp) 560
System Leakage with all power supplies loaded (mA) 0.75mA@240V
0.45mA@120V
System Inrush Current with all power supplies loaded (A) 80A
Power cord requirements Nema 5-15P to IEC320-C13
  IEC320-C13 to IEC320-C14
  **Power shown is for a fully configured system consisting of (1) CPU, (4) double-sided DIMMs, (4) HDDs, (1) CD-ROM, (1) DVD-ROM, (4) PCI cards, and (1) power supply.
Power Cords (13 Cord Sets) Power Cord Part Number
Country
APD 100614-009, 100613-008, 139867-004, 187487-004(India)
Brazil 285052-001
Australia 100661-001
Euro 100614-009
France 100614-009
Germany 100614-009
Japan 139867-004
PRC 286496-001
UK 100613-008
US, Taiwan 121565-001
contents
 Overview      Standard Features      Models      Configuration Information-Factory Integrated Models (North America only)      ML110 G2 Options      Service and Support, HP Care Pack, and Warranty Information      ML110 G2 Memory      Storage      Power Specifications      ML110 G2 QuickSpecs images/line.gif (50 bytes)

Quickspecs

System Unit Dimensions (HxWxD)
(with feet)
16.7 x 7.9 x 19.7 in (42.4 x 20.0 x 50.0 cm)
Weight(approximate) 32.61 lb (14.8 kg)
Input Requirements
(per power supply)

Range Input Voltage

90 to 135 VAC/180 to 265 VAC
Normal Line Voltage 115 or 230 VAC
Line Frequency 50 to 60 Hz
Rated Input Current load 8A at 115VAC, 4A at 230VAC
BTU Rating
1907 BTU
SCSI Connectors
(SCSI Models only)
One internal LVD/SE connector for U160 devices, plus two internal SE connectors for legacy devices.
Power Supply Output Power
(per power supply)
Rated Steady-State Power 320W
Maximum Peak Power 350W
Temperature Range Operating 50° to 95° F (10° to 35° C)
Shipping -4° to 140° F (-20° to 60° C)
Relative Humidity
(non-condensing)
Operating 20% to 80%
Non-operating 20% to 80%
Acoustic Noise Idle
(Fixed Disk Drives Spinning)

L WAd (BELS)
5.5
L pAm (dBA)
36
Operating
(Random Seeks to Fixed Disks)

L WAd (BELS)
6.0
L pAm (dBA)
38

Non-Hot Plug Ultra320 SCSI Hard Drives 364 GB
357021-B21
Capacity 36,419.2 MB
Height 1.0 in (2.5 cm)
Width 4.0 in (10.16 cm)
Interface Ultra320 SCSI
Transfer rate
synchronous (maximum)
320 MB/s
Seek time
(typical reads, including settling)
Single track 0.7 ms
Average 5.4 ms
Full-stroke 11 ms
  Rotational Speed 10,000 rpm
Physical Configuration Bytes/Sector 512
  Logical Blocks 71,132,000
Operating Temperature 41° to 140° F (5° to 60° C)

Non-Hot Plug SATA Hard Drives 80 GB 7.2K
383410-B21 383410-B21

Capacity 80,054 MB
Height 1.0 in. (2.5 cm)
Width 4.0 in. (10.16 cm)
Interface SATA 150MB
Transfer rate synchronous (maximum) 150 MB/s
Seek time (typical reads, including settling) Single track 0.8 ms
Average 8.5 ms
Full-stroke 17.8 ms
  Rotational speed 7,200 rpm
Physical Configuration Bytes/Sector 512
  Logical Blocks 156,355,584
Operating Temperature 41° to 131° F (5° to 55° C)

Hot Plug SATA Hard Drives 80 GB 7.2K
349237-B21 349237-B21

160 GB 7.2K
349238-B21 349238-B21

250 GB 7.2K
349239-B21 349239-B21

Capacity 40,027 MB
Height 1.0 in. (2.5 cm)
Width 4.0 in (10.16 cm)
Interface SATA 150MB
Transfer rate synchronous (maximum) 1.50Gb/s
Seek time
(typical reads, including settling)
Single track 0.9 ms

Average 9.0 ms
Full-stroke 17.0 ms
  Rotational speed 7,200 rpm
Physical Configuration Bytes/Sector 512
  Logical Blocks 156,301,4\88
Operating Temperature 41° to 131° F (5° to 55° C)

48X Max IDE (ATAPI) CD-ROM Drive Disk Applicable Disk CD-ROM, CD-XA, CD-DA
(Mode 1, Mode 2, Form 1 and 2)
Photo CD (Single and Multi-session)
Mixed Mode (Audio and Data combined)
CD-R
Capacity 540 MB (Mode 1, 12 cm)
650 MB (Mode 2, 12 cm)
Block Size Mode 1 2,048 bytes, 1024 bytes
Mode 2 2,340 bytes, 2,336 bytes, 1024 bytes
CD-DA 2,352 bytes
CD-XA 2,328 bytes
Interface IDE (ATAPI)
Access Times (typical) Random <100 ms
Full-Stroke <150 ms
Data Transfer Rate Sustained 3000 to 7200 KB/s (20X to 48X)
Burst 150 KBps to 7,200 KBps
Bus Rate 16.7 MBps
Cache Buffer 128 KB
Start-up Time (typical) < 7seconds
Stop Time < 4seconds
Laser Parameters Type Semiconductor Laser GaA1As
Wave Length 780 ± 25 nm
Operating Conditions Temperature 41° to 122° F (5° to 50° C)
Humidity 10% to 90%
Dimensions

(HxWxD, maximum)

1.63 x 5.75 x 7.87 in (41.3 x 146 x 200 cm)
Weight 2.64 lb (1.2 kg)

HP Single Channel Ultra320 SCSI Adapter (SCSI Models only) Drives Supported Up to 4 SCSI devices Wide
Data Transfer Method 64-bit/33-MHz PCI bus-master
SCSI Channel Transfer Rate 320 MB/s per channel
SCSI Protocols Ultra 320, Ultra 3, Ultra 2
Fast SCSI-2
Maximum Capacity 587GB (4x146.8GB, NHP U320 SCSI HDD)
Electrical Protocol Low Voltage Differential (LVD)
SCSI Termination Active Termination
External SCSI Connectors None

6 port SATA RAID controller (SATA Model Only) SATA Protocol
SATA 1.5Gb/s
SATA Ports
6 internal (4 drives supported maximum for ML110G2)
Port transfer rate
1.5 Gb/s total
Drives Supported
Up to 4 SATA HDD
Data Transfer Method
32-bit/66-MHz PCI bus-master
Storage Capacity
up to 1TB (4x 250GB hot plug 1" SATA HDD)
PCI
3.3 volt CPI slot compatibility only (PCI-X interface)
Cache Memory
64MB of SDRAM Memory for RAID and read cache
RAID Levels Supported RAID 5 (Distributed Data Guarding)
RAID 1+0 (Striping & Mirroring)
RAID 1 (Mirroring)
RAID 0 (Striping)
Maximum Capacity up to 1TB (4x 250GB hot plug 1" SATA HDD)
Logical RAID Volumes Supported 4
Operating Systems Microsoft Windows® 2000 Server; Microsoft Windows® Server 2003; Linux: Red Hat 9.0, RHEL 3.

Intel 82541 PI NIC (embedded) 10/100/1000 WOL (Wake on LAN)

Network Interface IEEE 802.3x-compliant flow-control support with software-controllable thresholds IEEE 802.3ab Auto-Negotiation
Data Transfer Method 32-bit PCI
Network Transfer Rate 10/100/1000 Mbps, Half- and full-duplex Auto-negotiated speeds of 10/100/1000 Mbps in both half and full duplex
Connector RJ-45 connector
Cable Support Category 5 or higher UTP wiring

Sillworks          Ph: 1.613.599.1287                   Fax: 1.613.599.8120
serversServers |bladesBlades | Hard DrivesU2/U3 |u320 Hard DrivesU320 |SAS/SATA Hard DrivesSAS/SATA |Fibre Hard DrivesFibre |MemoryMemory |ControllersControllers |Processors Processors |Tape DrivesTape Drives |Power SuppliesPower Supplies
Home | Shopping Cart | Delivery | Forgot Password | Order By Phone | Create an Account | Add to favorites

Legal | Privacy | | Primary Site | Contact us | Site Problem?  |
