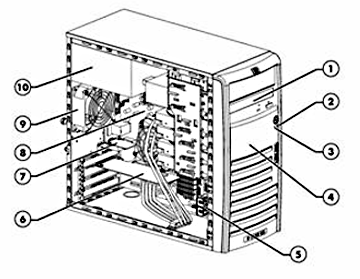

HP ProLiant100 G5 Lights-Out
100c Remote Management Card port(Optional)
6.
HDD Controller Card (Optional)
6.
LAN Port (RJ-45)
7.
HP ProLiant100 G5 Lights-Out
100c Remote Management Card port (Optional)
7.
Rear USB 2.0 Ports
8.
System Board
8.
Serial Port
9.
Rear System Fan
9.
VGA Port
10.
365W Power Supply
10.
PS/2 Keyboard Port
11.
PS/2 Mouse Port
12.
Power Supply Unit (PSU) Fan
What's New
Support for SATA Non-hot plug Midline Hard Drives
At A Glance
Processor:
AMD Opteron™ processors Model 1300 series
AMD Athlon™ processor Model 4450B
AMD Athlon™ processor Model 1640B
nVidia NFP3400 chipset
Memory:
Four (4) DIMM slots
1GB (1x1GB) Standard/8GB Maximum, using PC2-6400 DDR2 Unbuffered
ECC memory, operating at 800MHz
Storage Controller:
4 Port SATA controller with Embedded RAID on Motherboard (RAID
0, 1, 5)
Internal Drive Support:
4 HDD Support
Internal SAS storage capacity of up to 1.8TB (4 x 450GB 3.5"
SAS drives)
Internal SATA storage capacity of up to 4.0TB (8 x 2TB 3.5"
SATA drives)
Network Controller:
Embedded NC105i PCI Express Gigabit Ethernet Server Adapter
Expansion Slots:
Slot 1: PCI 32-bit/33MHz at 3.3V
Slot 2: PCI-Express x1 connector with x1 link
Slot 3: PCI-Express x8 connector with x8 link
Slot 4: PCI-Express x16 connector with x16 link
USB 2.0 Ports:
Eight (8) USB 2.0 ports: 2 front , 4 rear, 2 internal (one for
tape, one for standard USB device)
Power Supply:
365 Watts Non-Hot Plug, Non Redundant Power Supply
Management:
Standard Lights Out 100 IPMI 2.0 reporting
Optional HP ProLiant 100 G5 Lights Out 100c Remote Management
Card
Standard HP ProLiant ML115 G5 Easy Set-Up CD
Operating System:
Supports Windows, RHEL and SLES
Form Factor:
Micro ATX tower (4U) NOTE: Rack mounting available
via HP Tower to Rack Conversion Tray, Universal Kit. Please see
the options section in this QuickSpecs.
Warranty:
This product is covered by a global limited warranty and supported
by HP Services and a worldwide network of HP Authorized Channel
Partners. Hardware diagnostic support and repair is available for
one year from date of purchase. Support for software and initial
setup is available for 90 days from date of purchase. Enhancements
to warranty services are available through HP Care Pack services
or customized service agreements. Hard drives have either a one
year or three year warranty; refer to the specific hard drive QuickSpecs
for details. NOTE: Server Warranty includes
1 year Parts, 1 year Labor, 1-year on-site support with next business
day response. Warranty repairs may be accomplished through the use
of Customer Self Repair (CSR) parts. These parts fall into two categories:
1) Mandatory CSR parts are designed for easy replacement. A travel
and labor charge will result when customers decline to replace a
Mandatory CSR part; 2) Optional CSR parts are also designed for
easy replacement but may involve added complexity. Customers may
choose to have HP replace Optional CSR parts at no charge. Additional
information regarding worldwide limited warranty and technical support
is available at: http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html
AMD Opteron™ Processor
Model 1356 (2.3 GHz, 75W, 2MB) NOTE: Offered through Configure-To-Order
only. See Factory Integrated Models section for more details.
AMD Opteron™ Processor
Model 1354 (2.2 GHz, 75W, 2MB)
AMD Opteron™ Processor
Model 1352 (2.1 GHz, 75W, 2MB) NOTE: Offered through Configure-To-Order
only. See Factory Integrated Models section for more details.
Dual-Core Processors
AMD Athlon™ Processor
Model 4450B (2.3 GHz, 45W, 1MB) NOTE: Offered through Configure-To-Order
only. See Factory Integrated Models section for more details.
Single-Core Processors
AMD Athlon™ Processor
Model 1640B (2.7 GHz, 45W, 512KB) NOTE: Offered through Configure-To-Order
only. See Factory Integrated Models section for more details.
NOTE: Processor
wattage references reflect Average CPU Power (ACP). For more information
on ACP visit: http://www.amd.com/powernow.
Cache
Memory One of the following depending on Model
Embedded NC105i PCI Express
Gigabit Ethernet Server Adapter
Expansion Slots #
Technology
Bus Width***
Connector Width
Bus Number*
Device Number**
Form Factor
Notes
1
PCI
32-bit
N/A
1
8
Full height slot
33MHz/3.3V
2
PCI-e
X1
X1
4
0
Full height slot
3
PCI-e
X8
X8
2
0
Full length, full height slot
4
PCI-e
X16
X16
12
0
Full length, full height slot
* Default bus assignment (in decimal). Inserting cards with PCI bridges
may alter the actual bus assignment number.
** Slots are enumerated differently based on OS. MS OS's enumerate from
lowest to highest Device ID by bus (starting with the lowest bus).
*** Indicates the number of physical electrical lanes running to a PCI-e
connector. NOTE: PCI-X Interface (PCI 32bit/33MHz compatible)
HP ProLiant G5 Lights-Out 100c
Remote Management port (Optional)
Graphics
32MB shared supporting 1600x1200x16M
resolution
Form Factor
Micro ATX Tower (4U) NOTE: Rack mounting available via
HP Tower to Rack Conversion Tray, Universal Kit. Please see the options
section in this QuickSpecs.
Remote Management
Lights-Out 100c
Lights Out LO100c is a family
of Remote Management Card (RMC) for ProLiant 100 series servers that do
not have embedded LO100i. The LO100c has all the features of the LO100i
Advanced license and allows customers, or their service providers, to remotely
manage ProLiant servers over a LAN or the Internet from anywhere, anytime
regardless whether the server is located in the same building, across town,
or around the globe.
With LO100c, users can acquire complete remote control with Virtual KVM
(graphical hardware-based, remote console). Users can also access the
server's serial console, control system power, update system firmware
and software, as well as monitor system environmental conditions. The
LO100c remote management card can be accessed from a web browser or command
line interface. This virtual "at-the-server" functionality means
administrators stay in control of remote HP ProLiant 100 series servers.
The HP Lights-Out100c consists of a management processor and firmware
that provides cost-effective, entry-level lights-out functionality, basic
system board management functions, and diagnostics.
The HP ProLiant Easy Set-up CDs optimize single-server setup, providing
a simple way to deploy reliable and consistent server configurations.
The HP ProLiant 100 Series Easy Set-up CD ship standard with the ML115
G5.
This CD offers essential single-server deployment tools for HP ProLiant
100 series servers that simplify HP entry server setup, providing a repeatable
way to deploy reliable and consistent single-server configurations.
The HP ProLiant Easy Set-up CDs assist with the OS installation process
by preparing the system for installing "off-the-shelf" versions
of Windows operating system software and automatically integrating optimized
HP ProLiant server software drivers and utilities. Users enjoy the following
benefits:
An easy-to-use, intuitive graphical interface that prepares your system
for the OS installation process.
Integration of key server software drivers with assisted installation.
Dependency and validity checks to ensure that all supported ProLiant
software can be installed.
NOTE: For more information on HP's
Certified and Supported ProLiant Servers for OS and Virtualization Software
and latest listing of software drivers available for your server, please
visit our Support Matrix at: http://www.hp.com/go/supportos
and our driver download page http://www.hp.com/support/ML115G5
Factory Express Portfolio for Servers and Storage
HP Factory Express offers configuration, customization, integration and
deployment services for HP servers and/or storage products. Customers
can choose how their factory solutions are built, tested, integrated,
shipped and deployed.
Factory Express offers service packages for simple configuration, racking,
installation, complex configuration and design services as well as individual
factory services, such as image loading, asset tagging and custom packaging
HP products supported through Factory Express include a wide array of
servers and storage: HP Integrity, HP ProLiant, HP ProLiant Server Blades,
HP BladeSystem, HP 9000 servers, as well as, the MSAxxxx, VA7xxx, EVA,
XP, rackable tape libraries and configurable network switches.
For more information on Factory Express services for your specific server model please contact your sales representative or go to http://www.hp.com/go/factory-express.
HP Enterprise Configurator
The HP eConfigure Enterprise Configurator now provides factory default
racking for our HP hardware portfolio. This approach is aligned with our
strategic direction to meet the needs and expectations of our valued customers.
If you require "custom" rack configuration, please contact HP's
Customer Business Center or an Authorized Partner for assistance. http://www.hp.com/products/configurator.
Service and Support
HP Care Pack Services provide total care and support expertise with committed
response designed to meet your IT and business needs.
HP Care Pack Services include HP branded hardware options qualified for
the server, purchased at the same time or afterwards, internal to the
enclosure, as well as 22" and smaller external monitors and tower
UPS options up to 3kVA. HP Uninterruptible Power Systems will be covered
at the same service level and coverage period as the server. Coverage
of UPS Battery is not included and standard warranty terms & conditions
apply. For servers or storage systems installed within a rack, service
also covers all HP qualified rack options installed within the same rack.
To fully capitalize on your HP ProLiant servers' capabilities requires
a service partner who thoroughly understands your server technology and
systems environment. HP Services, an industry leader in provision of multi
vender support solutions provides a range of support services designed
to meet the varying needs of business. Whether an SMB or large global
corporation HP has a ProLiant server support offer to help you speedily
deploy and maximize system uptime. Recommended Service - Simplify
ProLiant solution implementation, maintenance and management.
Support Service -3 Year, 9x5 Next Business Day coverage, excluding HP holidays only
Deployment Service - Hardware Installation only
Enhanced Service - Optimize service level to increase IT performance and availability
Support Service - 3 Year 13x5 Same Business Day, 4-Hour response coverage
Deployment Service - Installation and Start-up only
Installation & Start-Up of a ProLiant server and Microsoft or Linux O/S per the Customer Description and/or Data Sheet. To be delivered on a scheduled basis 8am-5pm, M-F, excl. HP holidays.
The
ProLiant Smart Buy program offers a collection of promotional server and option
products that are configured with SMB in mind, offered at discounted prices, and
positioned for quick delivery. Smart Buy server offers are available for a limited
time only.
SATA
Models
HP S-Buy ML115G5 4450B NHP SATA 480567-005
Processor(s)
(1)
Dual-Core AMD Athlon™ Processor Model 4450B (2.3 GHz)
Cache
Memory
1MB Level 2 cache
Memory
1GB
(1 x 1 GB) PC2-6400
Network
Controller
Embedded NC105i PCIe
Gigabit
Storage Controller
Embedded
SATA RAID (RAID 0/1/5)
Hard
Drive
(1) 160GB SATA 7.2K 3.5"
Internal Storage
Maximum
3TB (4 x 750GB) SATA
Optical
Drive
DVD-ROM Drive
Form Factor
Micro
ATX Tower (4U)
HP S-Buy ML115G5 o1214 NHP SATA 480568-005
Processor(s)
(1)
Dual-Core AMD Opteron™ Processor Model 1214 (2.2 GHz)
Cache
Memory
2MB Level 2 cache
Memory
1GB
(1 x 1 GB) PC2-6400
Network
Controller
Embedded NC105i PCIe
Gigabit
Storage Controller
Embedded
SATA RAID (RAID 0/1/5)
Hard
Drive
(1) 160GB SATA 7.2K 3.5"
Internal Storage
Maximum
3TB (4 x 750GB) SATA
Optical
Drive
DVD-ROM Drive
Form Factor
Micro
ATX Tower (4U)
HP S-Buy ML115G5 o1214 SBS SATA SBS 480417-005
Processor(s)
(1)
Dual-Core AMD Opteron™ Processor Model 1214 (2.2 GHz)
Cache
Memory
2MB Level 2 cache
Memory
2GB
(2 x 1 GB) PC2-6400
Network
Controller
Embedded NC105i PCIe
Gigabit
Storage Controller
Embedded
SATA RAID (RAID 0/1/5)
Hard
Drive
(2) 160GB SATA 7.2K 3.5"
Internal Storage
Maximum
3TB (4 x 750GB) SATA
Operating
System
Microsoft Windows Small
Business Server 2003 R2 Standard Edition with 5 CALs
Optical
Drive
DVD-ROM Drive
Form Factor
Micro
ATX Tower (4U)
HP S-Buy ML115G5 o1352 SBS 480418-005
Processor(s)
(1)
Quad-Core AMD Opteron™ Processor Model 1352 (2.1 GHz)
Cache
Memory
2MB Level 2 cache
Memory
2GB
(2 x 1 GB) PC2-6400
Network
Controller
Embedded NC105i PCIe
Gigabit
Storage Controller
Embedded
SATA RAID (RAID 0/1/5)
Hard
Drive
(2) 250GB SATA 7.2K 3.5"
Internal Storage
Maximum
3TB (4 x 750GB) SATA
Optical
Drive
DVD-RW Drive
Form Factor
Micro
ATX Tower (4U)
HP S-Buy ML115G5 o1352 NHP SATA 480419-005
Processor(s)
(1)
Quad-Core AMD Opteron™ Processor Model 1352 (2.1 GHz)
NOTE:
This section lists some of the steps required to configure a Factory Integrated
Model. To ensure only valid configurations are ordered, HP recommends the
use of an HP approved configurator. Contact your local sales representative
for information on CTO product offerings and requirements. NOTE: Configure-to-order servers must start with a CTO Chassis. NOTE: FIO indicates that this option is a Factory Installable Option.
Step 1: Base Configuration
HP Models
HP ProLiant ML115 G5 NHP CTO Chassis
457767-B21
Factory Integrated Models ship
with:
Embedded NC105i PCI Express Gigabit
Ethernet Server Adapter
HP Embedded 4 Port SATA Controller
HP ProLiant ML115 G5 Easy Set-Up
CD
PCA
Power cord
Keyboard and Mouse
Micro ATX Tower (4U)
NOTE: HP SATA
Drive Models are limited to 4.0TB support.
NOTE: The components
of a storage subsystem (e.g. the drive, the HBA/controller, and the server
backplane) should operate at the same data transfer rate or the system bandwidth
will be negotiated down to an acceptable level for all components. NOTE: Hard drives have either a one year or three year warranty;
refer to the specific hard drive QuickSpecs for details. NOTE: Supports up to 4 hard drives.
SATA Non-Hot Plug LFF (3.5-inch)
Midline (MDL) Drives
HP 2TB 3G SATA 7.2K rpm LFF (3.5-inch)
Non-hot Plug Midline 1yr Warranty Hard Drive
Step 3: Choose Additional
Factory Integratable Options NOTE: Some options may not be factory
integratable. Please contact your local sales representative for additional
information.
HP Storage Controller
HP SC40Ge Host Bus Adapter, FIO NOTE: When using the SC40Ge with
SATA Hard Drives, 1.5G SATA Hard Drives are required. NOTE: Factory Integrated Only.
449176-B21
Step
4: Choose Additional Options for Factory Integration NOTE: For additional options, please
refer to the "Core Options and Additional Options" section below.
NOTE: The components
of a storage subsystem (e.g. the drive, the HBA/controller, and the server
backplane) should operate at the same data transfer rate or the system bandwidth
will be negotiated down to an acceptable level for all components. NOTE: Hard drives have either a one year or three year warranty;
refer to the specific hard drive QuickSpecs for details.
SATA Non-Hot Plug LFF (3.5-inch)
Midline (MDL) Drives
HP 2TB 3G SATA 7.2K rpm LFF (3.5-inch)
Non-hot Plug Midline 1yr Warranty Hard Drive
HP Internal SAS/SATA 4-Port Cable NOTE: The purchase of a SAS Storage
Controller requires the purchase of HP SAS/SATA 4-Port Cable (P/N 430479-B21)
430479-B21
SAS HBA
HP SC44Ge Host Bus Adapter NOTE: When using the SC44Ge with
SATA Hard Drives, 1.5G SATA Hard Drives are required. Transfer rate: 1.5
Gb/s SATA, 3 Gb/s SAS. NOTE: Supports RAID 0,1.
NOTE: For the
complete range of StorageWorks tape drives, autoloaders, libraries and media
see: http://www.hp.com/go/tape.
For hardware and software compatibility of HP StorageWorks tape backup products
see: http://www.hp.com/go/connect.
HP StorageWorks DAT 320 USB Internal
Tape Drive
AJ825A
HP StorageWorks DAT 320 SAS Internal Tape Drive NOTE: Connection using the HP SC44Ge
SAS Host Bus Adapter ( 416096-B21) recommended.
AJ830A
HP StorageWorks LTO-2 Ultrium
448 SAS Internal Tape Drive NOTE: Connection using the HP SC44Ge
SAS Host Bus Adapter ( 416096-B21) recommended.
DW085A
HP StorageWorks LTO-3 Ultrium
920 SAS Internal Tape Drive NOTE: Connection using the HP SC44Ge
SAS Host Bus Adapter ( 416096-B21) recommended.
EH847A
HP StorageWorks 1/8 G2 LTO-3 Ultrium
920 SAS Tape Autoloader NOTE: Requires HP 1U Tape Autoloader
Rack-Mount Kit (AH166A) for rack installation. Connection using the HP SC44Ge
SAS Host Bus Adapter ( 416096-B21) recommended.
AH558A
HP StorageWorks MSL2024 Tape Library
with one LTO-3 Ultrium 920 SAS Drive NOTE: Connection using the HP SC44Ge
SAS Host Bus Adapter ( 416096-B21) recommended.
AH559A
HP StorageWorks MSL2024 Tape Library
with one LTO-5 Ultrium 3000 SAS Drive NOTE: Connection using the HP SC44Ge
SAS Host Bus Adapter ( 416096-B21) recommended.
HP StorageWorks D2D Backup Systems
with Backup Data Deduplication
HP StorageWorks D2D2502i Backup
System NOTE: 1.5TB of usable network disk
backup capacity. Network connected appliance with connectivity using the
iSCSI protocol. If the server requires a hardware iSCSI initiator, the QLogic
QLA4050 Host Bus Adapter is recommended.
EJ001A
HP StorageWorks D2D2504i Backup
System NOTE: 3.0TB of usable network disk
backup capacity. Network connected appliance with connectivity using the
iSCSI protocol. If the server requires a hardware iSCSI initiator, the QLogic
QLA4050 Host Bus Adapter is recommended.
EJ002A
USB Removable Media RDX Disk Backup
Systems
HP StorageWorks RDX320 Internal
Removable Disk Backup System NOTE: 320GB of disk capacity per
data cartridge.
AJ767A
HP StorageWorks RDX500 Internal
Removable Disk Backup System NOTE: 500GB of disk capacity per
data cartridge.
AJ934A
HP StorageWorks RDX750 Internal
Removable Disk Backup System NOTE: 750GB of disk capacity per
data cartridge.
NOTE: For additional
information regarding KVM Switches, Serial Console servers, rack mount monitors,
keyboards and all related options please see the following URL: http://www.hp.com/go/kvm.
NOTE: When installing
a Windows OS Environment and configuring the embedded SATA RAID, AHCI, or
SAS controllers, installation of a driver from a diskette device is required.
NOTE: Memory configurations listed do not apply to "Factory Integrated Models".
Standard Memory
1 GB (1x1GB) of PC2-6400 DDR2
UDIMM running at 800MHz with memory kits installed
Standard Memory Plus Optional Memory
Up to 6 GB memory is available
with the optional installation of PC2-6400 un-buffered ECC DDR2 SDRAM DIMM
Memory kits.
Standard Memory Replaced with Optional Memory
Up to 8 GB of memory is available
with the removal of the standard 1GB of memory and the optional installation
of 4 x 2 GB PC2-6400 un-buffered ECC DDR2 SDRAM DIMM Memory kits.
NOTE: The below
chart does not represent all possible memory configurations. NOTE: For best performance, it is recommended that customers install
memory in identical pairs. Slots 1A and 2A are interleaving pair. Slots
3B and 4B are interleaving pair.
Memory
Slot
1A
2A
3B
4B
Standard
1 GB
1 GB
Empty
Empty
Empty
Optional
6 GB
1 GB
1 GB
2 GB
2 GB
Maximum
8 GB
2 GB
2 GB
2 GB
2 GB
Following are memory
options available from HP:
HP Memory
HP 2GB (1x2GB) Dual Rank PC2-6400
(DDR2-800) Unbuffered Memory Kit
NOTE:
The components of a storage subsystem (e.g. the drive, the HBA/controller,
and the server backplane) should operate at the same data transfer rate
or the system bandwidth will be negotiated down to an acceptable level for
all components. NOTE: Hard drives have either a one year or three year warranty;
refer to the specific hard drive QuickSpecs for details.
SATA Non-Hot Plug
LFF (3.5-inch) Midline (MDL) Drives
Quantity
Supported
Quantity
Supported
Controller
2TB 3G SATA 7.2K
1TB 3G SATA 7.2K
500GB 3G SATA 7.2K
Up to 4
3-6
4 Port SATA controller with Embedded
RAID on Motherboard (0,1,5)
SATA Non-Hot Plug
LFF (3.5-inch) Entry (ETY) Drives
Quantity
Supported
Quantity
Supported
Controller
250GB 3G SATA 7.2K
160GB 3G SATA 7.2K
Up to 4
3-6
4 Port SATA controller with Embedded
RAID on Motherboard (0,1,5)
Hard Drives (SAS Models
only)
SAS Non-Hot Plug LFF
(3.5-inch) Enterprise (ENT) Drives
Quantity
Supported
Position
Supported
Controller
450GB 3G SAS 15K
300GB 3G SAS 15K
146GB 3G SAS 15K
Up to 4
3-6
HP 8 Internal Port SAS HBA with
RAID (0,1)
Maximum
Storage Capacity
Internal
SATA
8.0TB (4 x 2TB)
SAS
1.8TB (4x 450GB)
Tape Drives and Disk-Based
Backup
NOTE:
For the complete range of StorageWorks tape drives, autoloaders, libraries
and media, including the internal fitting models, see: http://www.hp.com/go/tape.
For the complete range of StorageWorks D2D Backup Systems see: http://www.hp.com/go/d2d.
For the complete range of StorageWorks RDX drives and media see: http://www.hp.com/go/rdx.
For hardware and software compatibility of HP StorageWorks disk and tape
backup products see: http://www.hp.com/go/connect.
Position
Recommended Controller
Part Number
HP StorageWorks SCSI Tape Drives
LTO-1 Ultrium 232
LTO-2 Ultrium 448
LTO-3 Ultrium 960
LTO4 Ultrium 1760
LTO-4 Ultrium 1840
DAT 40
DAT 72
DAT 160
HP StorageWorks Fibre Channel
Tape Libraries
MSL2024
MSL4048
MSL8096
MSL6000
External
Please consult the
EBS connectivity matrix at: http://www.hp.com/go/ebs
for connectivity information and the supported Fibre Channel HBAs shown
in this QuickSpec.
HP StorageWorks USB RDX Removable Disk Backup System
RDX160
RDX320
RDX500
RDX750
External
USB 2.0 port
N/A
HP StorageWorks D2D Backup
Systems, iSCSI
D2D2500i
D2D4000i
External
Embedded Network
Controller. If the server requires a hardware iSCSI initiator, the QLogic
QLA4050 Host Bus Adapter is recommended.
HP StorageWorks D2D Backup
Systems, Fibre Channel
D2D4000fc
No component was damaged and input fuse shall not blow
N/A
N/A
No component was damaged and input fuse shall not blow
N/A
Maximum Inrush Current duration (mS)
N/A
N/A
N/A
N/A
N/A
N/A
To
review typical system power ratings use the Active Answers HP Power Advisor
which is available via the online tool located at URL: http://www.hp.com/go/hppoweradvisor
To drill down to calculators:
- Click on: "ProLiant Servers"
- Click on the Server of interest. Example: ML115 G5
- Click on: "Power Calculator" link. (You may need to scroll down
to see it)
System Leakage with all power supplies loaded (mA)
N/A
System Inrush Current with all power supplies loaded (A)
N/A
Power cord requirements
Nema 5-15P to IEC320-C13
IEC320-C13 to IEC320-C14
**Power shown is for a fully configured system consisting of (1) CPU, (4) double-sided DIMMs, (4) HDDs, (1) DVD-ROM, (4) PCI cards, and (1) power supply.
Maximum
(all hard drives, power supplies, and processors installed)
31.35 lb (14.22 kg)
Minimum
(one hard drive, power supply, and processor installed)
25.75 lb (11.68 kg)
Input
Requirements
(per power supply)
Rated Line Voltage
90 –- 132 VAC,
180 – 264 VAC
Rated Input Current
6 A (at 110 VAC),
3 A (at 200 VAC)
Rated Input Frequency
47 to 63 Hz
Rated Input Power
365 W (at 100 VAC),
365 W (at 200 VAC)
BTU Rating
Maximum
1885 BTU/hr (at 100 VAC),
U/hr (at 200 VAC)
Power Specifications
To review typical system power ratings use the Power Advisor which is
available via the online tool located at URL: http://www.hp.com/go/hppoweradvisor
Power
Supply Output
(per power supply)
Rated Steady-State Power
365 W (at 100 VAC),
365 W (at 200 VAC)
Maximum Peak Power
385 W (at 100 VAC),
385 W (at 200 VAC
System Inlet Temperature
Operating
10° to 35°C (50° to 95°F) at sea level with an altitude
derating of 1.0°C per every 305 m (1.8°F per every 1000 ft) above
sea level to a maximum of 3050 m (10,000 ft), no direct sustained sunlight.
Maximum rate of change is 10°C/hr (18°F/hr). The upper limit
may be limited by the type and number of options installed.
System performance may be reduced if operating with a fan fault or above
30°C (86°F).
Non-operating
10 to 90% relative humidity (Rh),
28°C
5 to 95% relative humidity (Rh), 38.7°C
Altitude
Operating
3050 m (10,000 ft). This value
may be limited by the type and number of options installed. Maximum allowable
altitude change rate is 457 m/min (1500 ft/min).
Non-operating
9144 m (30,000 ft). Maximum allowable
altitude change rate is 457 m/min (1500 ft/min).
Acoustic
Noise (Fully Loaded)
Idle
L WAd
4.74 BELS
L pAm
30.0 dBA
Operating
L WAd
4.99 BELS
L pAm
32.5 dBA
Emissions Classification
(EMC)
FCC Rating
Class B
Normative Standards
CISPR 22; EN55022; EN55024; FCC
CFR 47, Pt 15; ICES-003; CNS13438; GB9254; K22;K24; EN 61000-3-2; EN 61000-3-3;
EN 60950-1; IEC 60950-1
NOTE: Product conformance to cited product specifications is based
on sample (type) testing, evaluation, or assessment. This product or family
of products is eligible to bear the appropriate compliance logos and statements.
HP 160GB 3G SATA
7.2K rpm LFF (3.5-inch) Non-hot Plug Entry 1yr Warranty Hard Drive
Single lane (x1),
100MHz PCI Express Reference Clock
Controller
BCM5722
Network Transfer Rate
10Base-T (Half-Duplex)
10 Mb/s
10Base-T (Full-Duplex)
20 Mb/s
100Base-TX (Half-Duplex)
100 Mb/s
100Base-TX (Full-Duplex)
200 Mb/s
1000Base-TX (Half and Full-Duplex)
2000Mb/s
Connector
RJ-45 connector
Cable Support
10Base-T
Categories 3, 4 or 5 UTP; up to
328 ft (100 m)
10/100/1000Base-TX
Category 5 UTP; up to 328 ft (100
m)
Environment-friendly Products and Approach
End-of-life Management and Recycling
Hewlett-Packard offers end-of-life HP product return, trade-in, and recycling
programs in many geographic areas. For trade-in information, please go
to http://www.hp.com/go/green.
To recycle your product, please go to: http://www.hp.com/go/green
or contact your nearest HP sales office. Products returned to HP will
be recycled, recovered or disposed of in a responsible manner.
The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment
information for each product type for use by treatment facilities. This
information (product disassembly instructions) is posted on the Hewlett
Packard web site at: http://www.hp.com/go/green.
These instructions may be used by recyclers and other WEEE treatment facilities
as well as HP OEM customers who integrate and re-sell HP equipment.
DL QuickSpecs
US QuickSpecs
450260-B21
