   Proliant ML310 G4 QuickSpecs  US QuickSpecs
  ML310 G4 Hard Drives   ML310 G4 Processors   ML310 G4 Memory
  ML310 G4 Controllers   ML310 G4 Networking   ML310 G4 Power Supplies
  ML310 G4 Quickspecs   ML310 G4 Quickspecs-Options   ML310 G4 Options
contents
 Overview      Standard Features      Models      Configuration Information - Factory Integrated Models      ML310 G4 Options      ML310 G4 Memory      Storage      ML310 G4 QuickSpecs images/line.gif (50 bytes)

Proliant ML310 G4 Overview

HP ProLiant ML310 Generation 4 (G4)

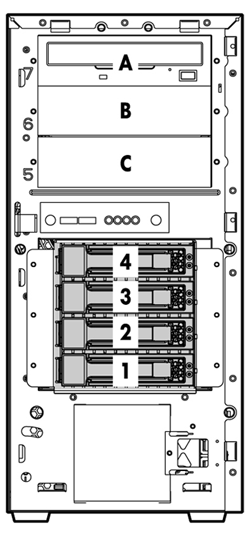

Proliant ML310 G4 Front View:Proliant ML310 G4 Rear View:
1.48x IDE (ATAPI) CD-ROM1.Power cord connections for Power Supply 1 & 2
2.Removable Media Bays2.Mouse connector
3.Four Hot-Plug Drive Bays3.Keyboard connector
4.Four Expansion Slots (Two PCI-X, Two PCI Express)4.Serial Port
5.Processor Socket (Intel® Xeon®, Pentium® D or
Celeron® D)
5.Video Port
6.USB 2.0 (qty 2)
6.Four DIMM Sockets for up to 8GB DDR2 memory7.Embedded NIC
7.System Fan8.Integrated Lights-Out 2 (iLo2) connector
8.410W Non-Hot Plug Non-Redundant Power Supply or 430W Hot Plug Redundant Power Supplies9.Printer PS1

What's New
  • Intel® Xeon® 3070 (2.66 GHz/1066 - 4MB L2) DC, Factory Installed Only

At A Glance

The HP ProLiant ML310 G4 is an affordable, single processor tower server designed to provide the solid network foundation essential to fuel thriving small offices. Dual-Core Intel Xeon, Dual-Core Pentium D or single-core Celeron D processing power combines with industry-leading management and essential data protection features for a secure, affordable platform that helps you run your business efficiently.

  • Processors:
    • Dual-Core Intel® Xeon® processor 3000 Sequence
    • Dual-Core Pentium® D 800 or 900 Series processor
    • Single-core Celeron D® 300 Sequence processor
    • 1066 MHz or 800 MHz Front Side Bus (FSB)
    • Intel® 3000 Chipset
  • Memory:
    • Up to 8GB of PC2-5300 667MHz unbuffered DDR2 SDRAM with ECC capabilities and optional interleaving
  • Storage Controller:
    • SAS Models: HP 8 Internal Port SAS HBA with RAID 0,1 in a PCI-X slot
    • SATA Models: Embedded SATA with integrated SATA RAID 0,1
  • Internal Drive Support:
    • Supports up to four hot plug SAS or SATA hard drives for up to 3TB internal storage
    • Models support SAS and SATA hard drives
  • Network Controller:
    • Embedded NC320i PCIe Gigabit Server Adapter
  • Expansion Slots:
    • 4 Total: (2) PCI-X 64-bit/100MHz; (2) PCI Express
  • USB 2.0 Ports:
    • 5 Total: (2) front; (2) rear; (1) internal; (1) dedicated internal
  • Management:
    • Integrated Lights-Out 2 featuring Integrated Remote Console
    • ROM Based Setup Utility (RBSU) and PXE support
  • Form Factor:
    • Tower
    • Optional Tower-to-Rack Enabling Kit available
  • Warranty:
    • This product is covered by a global limited warranty and supported by HP Services and a worldwide network of HP Authorized Channel Partners. Hardware diagnostic support and repair is available for one year from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Expanded support may be covered under the warranty or available for an additional fee. Enhancements to warranty services are available through HP Care Pack services or customized service agreements. SATA hard drives have a one-year warranty.
      NOTE: Server Warranty includes one year parts, one year labor, and one year on-site support with next business day response. Additional information regarding worldwide limited warranty and technical support is available at: http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html
contents
 Overview      Standard Features      Models      Configuration Information - Factory Integrated Models      ML310 G4 Options      ML310 G4 Memory      Storage      ML310 G4 QuickSpecs images/line.gif (50 bytes)

Standard Features

NOTE: For a brief, printer friendly data sheet that describes this product and informs you of the essential capabilities and specifications, please visit: http://h71028.www7.hp.com/erc/downloads/4aa0-8146enw.pdf.
NOTE: For the Standard Features shipped in the "Factory Integrated Models", please see the "Configuration Information - Factory Integrated Models" section.
Processor
One of the following depending on Model
Dual-Core Intel® Xeon® 3070 (2.66 GHz, 65 Watts, 1066 FSB, 4MB L2 Cache)
Dual-Core Intel® Xeon® 3060 (2.4 GHz, 65Watts, 1066 FSB, 4MB L2 Cache)
Dual-Core Intel® Xeon® 3040 (1.86 GHz, 65Watts, 1066 FSB, 2x1MB L2 Cache)
Dual-Core Intel® Pentium® D 820 (2.8 GHz, 95 Watts, 800 FSB, 2 x 1MB L2 Cache)
Dual-Core Intel® Pentium® D 925 (3.0 GHz, 95 Watts, 800 FSB, 2x2MB L2 Cache)
Intel® Celeron D® 352 (3.2 GHz, 86 Watts, 533 FSB, 512KB L2 Cache)
NOTE: The processors listed above available via Configure to Order only. Please see "Configuration Information - Factory Integrated Models" section of this QuickSpecs.
Dual-Core Intel® Xeon® 3050 (2.13 GHz, 65 Watts, 1066 FSB, 2MB L2 Cache)
Dual-Core Intel® Pentium® D 945 (3.4 GHz, 95 Watts, 800 FSB, 2 x 2MB L2 Cache)

Cache Memory
One of the following depending on Model
Integrated 4MB (3060 and 3070 Series) level 2 ECC cache (Intel® Xeon® processor 3000 Sequence)
Integrated 2MB (3040 and 3050 Series) level 2 ECC cache (Intel® Xeon® processor 3000 Sequence)
Integrated 2 x 2MB level 2 ECC cache (Pentium D 900 Series)
Integrated 2 x 1MB level 2 ECC cache (Pentium D 800 Series)
Integrated 512KB level 2 ECC cache (Celeron D 300 Series)

Memory Protection ECC

Memory
One of the following depending on Model
Type PC2-5300 unbuffered DDR2 SDRAM (667MHz)
Standard
(Model dependent)
512 MB (1 x 512 MB)
1 GB (1 x 1 GB)
Maximum 8 GB

Network Controller Embedded NC320i PCIe Gigabit Server Adapter

Expansion Slots
Slot Number
Bus Speed
Maximum Card Length
Hot Plug
Connector Type
4
PCI Express x4
12.3
No
x8
3
64-bit/100MHz PCI-X
12.3
No
3.3V
2
64-bit/100MHz PCI-X
12.3
No
3.3V
1
PCI Express x1
12.3
No
x8

Storage Controllers The HP ProLiant ML310 G4 supports Serial ATA (SATA) and Serial Attached SCSI (SAS) hard drives. Models described as SAS models include an 8 port HBA that supports both SATA and SAS hard drives in non-RAID, RAID 0, or RAID 1 configurations. Models described as SATA/SAS support SATA hard drives standard and require the installation of an HBA or controller to support SAS.
HP 8 Internal Port SAS HBA with RAID (in PCI-X slot) (SAS Models)
Embedded SATA with integrated SATA RAID 0,1 (SATA/SAS Models)
NOTE: Use of the embedded SATA RAID feature with a Linux operating system requires installation of a driver from a floppy drive. The supported floppy drive can be a USB drive key, USB floppy drive, half-height internal floppy drive, or virtual floppy via Integrated Lights-Out 2 (iLO 2).
NOTE: See the "Storage" section of these QuickSpecs for information on required to support SATA and SAS hard drive configurations

StorageOptical Drive48x IDE (ATAPI) CD-ROM Drive
Diskette DriveOptional 1.44 MB Diskette Drive
NOTE: Use of the embedded SATA RAID feature with a Linux operating system requires installation of a driver from a floppy drive. The supported floppy drive can be a USB drive key, USB floppy drive, half-height internal floppy drive, or virtual floppy via Integrated Lights-Out 2 (iLO 2).

Maximum Internal Storage Hot Plug SAS (3.5") 1.2TB 4 x 300GB SAS
Hot Plug SATA (3.5")
3.0TB
4 x 750GB SATA
NOTE: See the "Storage" section of these QuickSpecs for information on controllers required to support SATA and SAS hard drive configurations

InterfacesParallel1
Serial1 (Optional second serial port available)
Pointing Device (Mouse)1
Graphics1
Keyboard1
USB Ports5 (2 front; 2 rear; 1 internal)
NOTE: Please see the following URL for additional information regarding USB support:
http://h18004.www1.hp.com/products/servers/platforms/usb-support.html.
Dedicated USB Port 1 (available for USB tape connectivity)
Network RJ-45 (Ethernet)1
iLO 2 Remote Management port1

Graphics Integrated ATI ES1000 Video Controller with 16-MB SDRAM Video Memory

Form Factor Tower (5U)
Optional Tower-to-Rack Enabling Kit available (system & tray occupy 6U)

HP Insight Control Management Suites

HP Insight Control Environment delivers foundation management, including remote monitoring, hardware resource deployment, health monitoring, software version control, performance monitoring, vulnerability scanning and patch management, and power management.
HP Insight Control Environment installs and licenses the following components by default using a wizard-based integrated installer:

  • HP Systems Insight Manager
  • HP iLO Advanced Pack
  • HP Rapid Deployment Pack
  • HP Insight Power Manager
  • HP Performance Management Pack
  • HP Vulnerability and Patch Management Pack

Additional ProLiant Essentials software and management tools included on the Insight Control Management kit can be installed manually

  • HP Server Migration Pack - Universal Edition
  • HP Open Service Event Manager
  • HP Instant Support Enterprise Edition

NOTE: Server Migration Pack - Universal Edition can be installed from the SMP Universal CD included in the Insight Control Management media kit.
NOTE: For additional product and licensing information about HP Insight Control Environment, visit: http://www.hp.com/go/ice.

HP Insight Control management suites and most HP ProLiant Essentials include a one year of 24 x 7 HP Software Technical Support and Update Service ensuring rapid access to HP support staff and proactive delivery of software updates. For more information about this service, please visit: http://www.hp.com/services/insight.


Server Management Stand Alone Software Product - ProLiant EssentialsHP Systems Insight Manager HP Systems Insight Manager (HP SIM) provides a unified, secure and extensible standards-based environment to centrally manage servers, storage and other infrastructure devices, (both HP and non-HP) across multiple operating system platforms.
ProLiant Essentials Server Migration Pack - Universal Edition

Upgrading, replacing, or virtualizing your existing server? Effortlessly transition to new virtual or physical HP ProLiant servers or BladeSystem with automated, accurate and affordable migration of OS, application and data. SMP Universal automates the manual processes required for migrating servers between physical or virtual platforms, whether migrating to VMware or Microsoft virtual machines. SMP Universal allows all of the following migrations:

  • physical to ProLiant
  • physical to virtual
  • virtual to virtual
  • virtual to ProLiant

NOTE: For more information, visit: http://www.hp.com/go/migrate.

ProLiant Essentials Performance Management Pack Performance Management Pack (offered exclusively through the Insight Control suites) - a performance management solution that identifies and explains hardware performance bottlenecks on ProLiant servers and attached options enabling users to better utilize their valuable resources
Integrated Lights-Out Advanced Pack Upgrades the iLO 2 processor with comprehensive remote control including Virtual KVM remote graphical console, enhanced console sharing and replay, virtual media (floppy, CD/DVD, USB key), virtual folders, and enterprise security (directory services and two-factor authentication).
NOTE: Flexible and volume quantity license kits are available for ProLiant Essentials Value Packs. Refer to: http://www.hp.com/servers/proliantessentials or the various ProLiant Essentials Value Pack product QuickSpecs for more information.

Core Infrastructure ManagementSmartStartSmartStart is a tool that simplifies server setup, providing a rapid way to deploy reliable and consistent server configurations. For more information, please visit the SmartStart Web site at: http://www.hp.com/servers/smartstart.
SmartStart version supported (minimum): SmartStart 7.51.
Insight Management Agents

The Insight Management Agents should be installed on all HP servers to present system instrumentation, health and configuration information into HP Systems Insight Manager and the HP System Management Homepage. The HP System Management Homepage aggregates systems data from Insight Management Agents and other HP management tools, providing a consolidated browser-based interface for managing individual servers.

Insight Management Agents and The HP System Management Homepage are included on ProLiant Support Packs, and can also be installed using the server profiles provided with the ProLiant Essentials Rapid Deployment Pack.

For additional information about the Management Agents and the HP System Management Homepage please visit the management Web site at: http://www.hp.com/servers/manage.

Subscriber's ChoiceSubscriber's Choice Driver and Support Alerts/Notifications is a web-based email subscription service that provides software and driver change notifications for ProLiant products. Sign up at: http://www.hp.com/go/subscriberschoice
and customize your profile to receive various new alerts as they become available, on a weekly or monthly basis.
ProLiant Support Packs and ROMPaq, softwareThe latest software, drivers, and firmware fully optimized and tested for your ProLiant server and options, available through ProLiant Support Packs the ProLiant Essentials Rapid Deployment Pack, SmartStart or downloaded from software and drivers download pages website at: http://www.hp.com/go/support.

Industry Standard ComplianceACPI V1.0b and 2.0 Compliant
PCI 3.0 Compliant
PCI-X 3.0 Compliant
PCI-Express 3.0 Compliant
PXE Support
WOL Support
Microsoft Logo certifications
Novell Logo certifications
USB 2.0

Remote Management

Integrated Lights-Out (iLO 2) Management 2

  • Virtual Text Remote Console (pre-OS only)
  • Remote Serial Console
  • Virtual Power Button Control
  • Virtual Unit ID control
  • Integrated Remote Console (ActiveX Control client)
  • Embedded system health
  • Present power consumption
  • Browser, command line and scripted access
  • Automatic IP Configuration via DHCP/DNS/WINS
  • Industry Standard 128-bit Secure Sockets Layer (SSL) and Secure Shell security (SSH)
  • Advanced Encryption Standard (AES)/Triple Data Encryption Standard (3DES)
  • OS independent hardware health status
  • IML and iLO Event Logging
  • Support for 12 user accounts with customizable access privilege

Manageability HP Systems Insight Manager
Online ROM Flash Utility
Drive Parameter Tracking (with Smart Array Controller)
Dynamic Sector Repairing (with Smart Array Controller)
Pre-Failure Warranty (covers processors, memory and SAS hard drives)
BIOS Serial Console

Security Power-on password
Setup password
Diskette boot control
Power switch security

Server Power Cords All models ship with one 1.8m (6 foot) standard low-line, country specific power cord. Localized cables included with geographic specific models in other world regions.
NOTE: HP ProLiant ML310 a C13 to C14 2.8M jumper cord ships standard. If customers require a local power cord, they can check the power cord matrix for the appropriate country specific sku. Please see the following power cord matrix: http://www.hp.com/go/powercordmatrix.

Power Specifications
To review typical system power ratings use the Active Answers Power Calculator at: http://h30099.www3.hp.com/configurator/powercalcs.asp

Power Supply410 Watt PFC (Power Factor Correcting) non-hot plug non-redundant power supply or 430 Watt PFC hot plug redundant power supplies (ships with two power supplies)

UPS and PDU Power
Cord Matrix
Please see the UPS and PDU cable matrix that lists cable descriptions, requirements, and specifications for UPS and PDU units:
http://h18004.www1.hp.com/products/servers/proliantstorage/power-protection/index.html

System Fans 1 - Non-hot plug, Non-redundant system fan
NOTE: Does not include fans in CPU heatsink or power supply.

OS Support Microsoft Windows Server 2003
Microsoft Small Business Server 2003
Novell NetWare
Red Hat Enterprise Linux
SUSE Enterprise Linux Server
SCO OpenServer
NOTE: The ML310 Embedded SATA RAID feature is not available for use with Netware or SCO operating systems.
NOTE:
For a more complete and up-to-date listing of supported OSs and versions, please visit our OS Support Matrix at: http://www.hp.com/go/supportos
NOTE: For an up-to-date listing of the latest software and drivers available for your server, please select your server: http://h20000.www2.hp.com/bizsupport/TechSupport/Product.jsp?lang=en&cc
=us&taskId=135&prodTypeId=15351&prodCatId=241435
.
NOTE: For more Linux OS support & certification information, please visit our the ProLiant & BladeSystem Server Linux matrix http://h18004.www1.hp.com/products/servers/linux/hpLinuxcert.html
NOTE: For more complete and up-to-date information on how to buy server operating systems from HP please visit the OS product site at: http://h18004.www1.hp.com/products/servers/software/OEM.html

Factory Express Portfolio for Servers and StorageHP Factory Express offers configuration, customization, integration and deployment services for HP servers and storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped and deployed.

Factory Express offers service packages for simple configuration, racking, installation, complex configuration and design services as well as individual factory services, such as image loading, asset tagging, and custom packaging. HP products supported through Factory Express include a wide array of servers and storage: HP Integrity, HP ProLiant, HP ProLiant Server Blades, HP BladeSystem, HP 9000 servers as well as the MSA1000, VA7xxx, EVA, XP, rackable tape libraries and configurable network switches.

For more information on Factory Express services for your specific server model please contact your sales representative or go to http://www.hp.com/go/factory-express.


Rack and Rack Options

Rack Cabinets:

KVM Switches, Serial Console Servers, Rackmount Monitors, Keyboards:

  • For additional information regarding KVM switches, Serial Console servers, rack mount monitors, keyboards and all related options please see the following URL: http://www.hp.com/go/kvm.

HP Enterprise Configurator The HP eCo-Enterprise Configurator now provides factory default racking for our HP hardware portfolio. This approach is aligned with our strategic direction to meet the needs and expectations of our valued customers. If you require "custom" rack configuration, please contact HP's Customer Business Center or an Authorized Partner for assistance.
http://www.hp.com/products/configurator.

Service and Support

HP Care Pack Services provide total care and support expertise with committed response times designed to meet your IT and business needs.

HP Care Pack services include coverage for the HP branded hardware options qualified for the server that are purchased at the same time or afterward and internal to the enclosure. It also includes the 22-inch and smaller external monitors and tower UPS options up to 3kVA. These items will be covered at the same service level and for the same coverage period as the server. Coverage of UPS Battery is not included and standard warranty terms & conditions apply. For servers or storage systems installed within a rack, service also covers all HP qualified rack options installed within the same rack.

To fully capitalizing on your HP ProLiant servers' capabilities requires a service partner who thoroughly understands your server technology and systems environment. HP Services, an industry leader in provision of support solutions provides a range of support services designed to meet the varying needs of your business. Whether an SMB, or large global corporation, HP has ProLiant server support offers to help you speedily deploy and maximize system uptime.

Recommended Service - simplify ProLiant solution implementation, maintenance, and management.

  • Support - 3-Year 9x5 Next Business Day coverage, excluding HP holidays only
  • Deployment Service - HW Installation only

Enhanced Service - optimize service level to increase IT performance and availability.

  • Support - 3-Yyear 13x5 Same Business Day, 4-Hour response coverage only
  • Deployment Service - Installation and Start up only

Refer to the information on the Installation of a ProLiant on the ProLiant Data Sheet; to be delivered on a scheduled basis 8am-5pm, M-F, excluding HP holidays.

NOTE: For a complete listing of service offerings and information visit:
http://www.hp.com/services/proliantservices
http://www.hp.com/go/proliant/carepack

contents
 Overview      Standard Features      Models      Configuration Information - Factory Integrated Models      ML310 G4 Options      ML310 G4 Memory      Storage      ML310 G4 QuickSpecs images/line.gif (50 bytes)

Models

NOTE: For the Standard Features shipped in the "Factory Integrated Models", please see the "Configuration Information - Factory Integrated Models" section.
Models with SAS Support Standard

ML310T04 3050 HP SAS/SATA
418038-xx1
Processor(s) Dual-Core Intel® Xeon® 3050 (2.13 GHz, 65 Watts, 1066 FSB, 2MB L2 Cache)
Cache Memory 1 x 2MB L2
Memory 1 GB (1 x 1GB)
Network Controller Embedded NC320i PCIe Gigabit Server Adapter
Storage Controller HP 8 Internal Port SAS HBA with RAID 0, 1 in a PCI-X slot
Hard Drives None ship standard (up to 4 hot plug SAS or SATA 3.5" drives supported)
Internal Storage SAS: 584GB maximum; SATA: 3TB maximum
Optical Drive 48x IDE (ATAPI) CD-ROM Drive
Diskette Drive None ship standard (Optional 1.44 MB Diskette Drive available)
Power Supply 410W non-hot plug non-redundant power supplies
Form Factor Tower (5U) (Tower to Rack Enabling Kit available)

ML310T04 3050 HP SAS RPS
418039-xx1
Processor(s) Dual-Core Intel® Xeon® 3050 (2.13 GHz, 65 Watts, 1066 FSB, 2MB L2 Cache)
Cache Memory 1 x 2MB L2
Memory 1 GB (1 x 1GB)
Network Controller Embedded NC320i PCIe Gigabit Server Adapter
Storage Controller HP 8 Internal Port SAS HBA with RAID 0, 1 in a PCI-X slot
Hard Drives None ship standard (up to 4 hot plug SAS or SATA 3.5" drives supported)
Internal Storage SAS: 584GB maximum; SATA: 3TB maximum
Optical Drive 48x IDE (ATAPI) CD-ROM Drive
Diskette Drive None ship standard (Optional 1.44 MB Diskette Drive available)
Power Supply 430W hot plug redundant power supplies
Form Factor Tower (5U) (Tower to Rack Enabling Kit available)

Models with SATA Support Standard

ML310T04 3050 HP SATA
418040-xx1
Processor(s) Dual-Core Intel® Xeon® 3050 (2.13 GHz, 65 Watts, 1066 FSB, 2MB L2 Cache)
Cache Memory 1 x 2MB L2
Memory 512 MB (1 x 512 MB)
Network Controller Embedded NC320i PCIe Gigabit Server Adapter
Storage Controller Embedded SATA with integrated SATA RAID 0, 1
Hard Drives None ship standard (Up to 4 hot plug SATA 3.5" drives supported standard. SAS 3.5" drives supported with optional HBA or controller)
Internal Storage SATA: 3 TB maximum; SAS: 1.2TB maximum
Optical Drive 48x IDE (ATAPI) CD-ROM Drive
Diskette Drive None ship standard (Optional 1.44 MB Diskette Drive)
Power Supply 410W non-hot plug non-redundant power supplies
Form Factor Tower (5U) (Tower to Rack Enabling Kit available)

ML310T04 3050 HP SATA/SAS RPS
418041-xx1
Processor(s) Dual-Core Intel® Xeon® 3050 (2.13 GHz, 65 Watts, 1066 FSB, 2MB L2 Cache)
Cache Memory 1 x 2MB L2
Memory 512 MB (1 x 512 MB)
Network Controller Embedded NC320i PCIe Gigabit Server Adapter
Storage Controller Embedded SATA with integrated SATA RAID 0, 1
Hard Drives None ship standard (Up to 4 hot plug SATA 3.5" drives supported standard. SAS 3.5" drives supported with optional HBA or controller)
Internal Storage SATA: 3 TB maximum; SAS: 1.2TB maximum
Optical Drive 48x IDE (ATAPI) CD-ROM Drive
Diskette Drive None ship standard (Optional 1.44 MB Diskette Drive available)
Power Supply 430W hot plug redundant power supplies
Form Factor Tower (5U) (Tower to Rack Enabling Kit available)

ML310T04 p945 HP SATA/SAS
418042-xx1
Processor(s) Dual-Core Intel® Pentium® D 945 (3.4 GHz, 95 Watts, 800 FSB, 2 x 2MB L2 Cache)
Cache Memory 2 x 2MB L2
Memory 512 MB (1 x 512 MB)
Network Controller Embedded NC320i PCIe Gigabit Server Adapter
Storage Controller Embedded SATA with integrated SATA RAID 0, 1
Hard Drives None ship standard (Up to 4 hot plug SATA 3.5" drives supported standard. SAS 3.5" drives supported with optional HBA or controller)
Internal Storage SATA: 3 TB maximum; SAS: 1.2TB maximum
Optical Drive 48x IDE (ATAPI) CD-ROM Drive
Diskette Drive None ship standard (Optional 1.44 MB Diskette Drive available)
Power Supply 410W non-hot plug non-redundant power supplies
Form Factor Tower (5U) (Tower to Rack Enabling Kit available)

Country Code Key XX=00 NA
XX=01 Australia
XX=20 Brazil
XX=03 UK
XX=04 Germany
XX=05 France
XX=29 Japan
XX=37 AP
XX=42 EURO
XX=AA PRC
XX=AB Taiwan
XX=AD Korea
contents
 Overview      Standard Features      Models      Configuration Information - Factory Integrated Models      ML310 G4 Options      ML310 G4 Memory      Storage      ML310 G4 QuickSpecs images/line.gif (50 bytes)

Configuration Information - Factory Integrated Models

NOTE: This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are ordered, HP recommends the use of an HP approved configurator. Contact your local sales representative for information on CTO product offerings and requirements.
NOTE: HP does not allow factory integration of options into standard models listed above. Configure-to-order servers must start with a CTO Chassis.
NOTE: This product offering does not support HP Factory Express Server Configuration Level 1.
NOTE: FIO indicates that this option only available as a Factory Installable Option.
Step 1: Base Configuration
ModelsHP ProLiant ML310 G4 CTO Chassis
419278-B21
Factory Integrated Models ship with:
Embedded NC320i PCIe Gigabit Server Adapter
Integrated Four Channel SATA Controller (HP-SATA/SAS chassis only)
Keyboard and Mouse

Step 2: Choose Required Options (only one of the following from each list unless otherwise noted)
ProcessorsIntel® Celeron D 352 (3.2 GHz/533 - 512KB L2), FIO
431702-B21
Intel® Pentium D 820 (2.8 GHz/800 - 2 x 1MB L2) DC, FIO
432406-B21
Intel® Pentium D 945 (3.4 GHz/800 - 2 x 2MB L2) DC, FIO
433972-B21
Intel® Pentium D 925 (3.0 GHz/800 - 2x2MB L2) DC, FIO
433971-B21
Intel® Xeon® 3040 (1.86 GHz,/1066 - 2MB L2), DC, FIO
433376-B21
Intel® Xeon® 3050 (2.13 GHz/1066 - 2MB L2) DC, FIO
419275-B21
Intel® Xeon® 3060 (2.4 GHz/1066 - 4MB L2) DC, FIO
419276-B21
Intel® Xeon® 3070 (2.66 GHz/1066 - 4MB L2) DC, FIO
441621-B21
Base Memory2 GB Unbuffered PC2-5300 ECC DIMM (1 x 2 GB)
1 GB Unbuffered PC2-5300 ECC DIMM (1 x 1 GB)
512 MB Unbuffered PC2-5300 ECC DIMM (1 x 512 MB)
Optical Drive48x IDE (ATAPI) CD-ROM
398972-B21
CD-RW/DVD-ROM Combo Drive Option Kit
16X DVD-ROM Drive Option Kit (Carbon)
HP DVD+R/RW 16X Half Height
Power Supply410W Non-Redundant Power Supply, FIO
431653-B21
430W Hot-plug Redundant Power Supply, FIO
NOTE: Hot plug redundant power supply (PN 431652-B21) ships with two power supplies.
431652-B21

Step 3: Choose Additional Factory Integratable Options
ControllersNOTE: When SATA hard drives are installed, SATA LED functionality and full SATA hot-plug capability are not supported with the embedded controller. For full LED and hot-plug support, an optional SAS RAID controller must be installed.
NOTE:
When hot-plug SATA hard drives are installed, SATA LED functionality and full SATA hot-plug capability are not supported with the embedded controller. For full LED and hot-plug support, an optional SATA RAID or SAS controller must be installed. A SAS HBA or Controller is required if SAS hard drives are selected. SAS HBAs and Controllers support both SAS and SATA hard drives. Some SAS HBAs and Controllers also have SAS tape support. Please refer to the "Tape Drives, Tape Autoloader & Tape Libraries" table in the Storage section for a list of SAS HBAs and Controllers with tape support.

HP 8 Internal Port SAS HBA with RAID
NOTE: RAID 0, 1.
HP Smart Array E200/128 BBWC Controller
NOTE: RAID 0, 1, 1+0, 5.
HP Smart Array P400/256MB Controller
NOTE: RAID 0, 1, 1+0, 5.
HP Smart Array P400/512MB BBWC Controller
NOTE: RAID 0, 1, 1+0, 5, 6.

411064-B21 411064-B21

ModemsAgere 06 PCI Hi-Speed 56K SftMd
NOTE: This part number must be used for factory integration. For field integration (or as an additional "ship along" option) choose EK694AA.
440519-B21

Step 4: Choose Additional Options for Factory Integration
NOTE: For additional options, please refer to the "Options" section below.
contents
 Overview      Standard Features      Models      Configuration Information - Factory Integrated Models      ML310 G4 Options      ML310 G4 Memory      Storage      ML310 G4 QuickSpecs images/line.gif (50 bytes)

Options

HP Insight Control Management SuitesNOTE: Electronic licensing options are available for Insight Control suites software products. Please see the appropriate Insight Control QuickSpecs for additional information.
HP Insight Control Environment
HP Insight Control Environment, No Media 1-Server License including 1 year of 24x7 Technical Support and Updates 452148-B21
HP Insight Control Management Software Media Kit
NOTE: Insight Control Management DVD media without licenses. Contains Insight Manager and Essentials software products and components licensed by Insight Control Management suites. Uses an integrated installer to perform quick and accurate software installation and updates.
436222-B21
NOTE: For additional License Kits, please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/12631_div/12631_div.html

Server Management Stand Alone Software Product - ProLiant EssentialsNOTE: Electronic licensing options are available for select ProLiant Essentials software products. Please see the appropriate ProLiant Essentials QuickSpecs for additional information.
Deploy
HP Server Migration Pack - Universal Edition
HP Server Migration Pack - Universal Edition, No Media, Physical / Virtual to ProLiant Single Migration License, including 1 year of 24x7 Technical Support and Updates
NOTE: This license allows 1 physical to ProLiant or virtual to ProLiant migration. Customer will receive a printed license entitlement certificate and documentation via physical shipment. The license entitlement certificate must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HP Software Technical Support and Update Service.
460750-B21
HP Server Migration Pack - Universal Edition, No Media, Physical / Virtual to Virtual Single Migration License, including 1 year of 24x7 Technical Support and Updates
NOTE: This license allows 1 physical to virtual or virtual to virtual migration. Customer will receive a printed license entitlement certificate and documentation via physical shipment. The license entitlement certificate must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HP Software Technical Support and Update Service.
460753-B21
HP Server Migration Pack - Universal Edition, No Media, 1-Year Unlimited Migration License, including 1 year of 24x7 Technical Support
NOTE: This license allows unlimited migrations (physical to ProLiant, physical to virtual, virtual to virtual, and virtual to ProLiant) for one year. Customer will receive a printed license entitlement certificate and documentation via physical shipment. The license entitlement certificate must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HP Software Technical Support Service.
460756-B21
NOTE: For additional License Kits, please see the QuickSpecs at:
http://h18000.www1.hp.com/products/quickspecs/12855_div/12855_div.html

Control
Integrated Lights-Out Select Pack
ProLiant Essentials Integrated Lights-Out Select Pack, No Media, 1-Server License
NOTE: For additional License Kits, please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/12362_div/12362_div.html
452158-B21
Integrated Lights-Out Advanced Pack
Integrated Lights-Out Advanced Pack, No Media ,1 Server License
NOTE: For additional License Kits, please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/10861_div/10861_div.html
452141-B21
NOTE: Flexible and volume quantity license kits are available for ProLiant Essentials Value Packs. Refer to: http://www.hp.com/servers/proliantessentials or the various ProLiant Essentials QuickSpecs for more information.

Memory
(DIMMs)

2 GB Unbuffered PC2-5300 ECC DIMM (1 x 2 GB)
1 GB Unbuffered PC2-5300 ECC DIMM (1 x 1 GB)
512 MB Unbuffered PC2-5300 ECC DIMM (1 x 512 MB)

Optical Drives



16X DVD-ROM Drive Option Kit (Carbon) 217053-B21 217053-B21
CD-RW/DVD-ROM Combo Drive Option Kit
HP DVD+R/RW 16X Half Height

Diskette Drives 1.44MB Diskette Drive Option Kit
379257-B21

Serial Port Kit HP ProLiant Second Serial port option kit
390390-B21

ML310 G4 Hard DrivesSerial-Attached SCSI (SAS) Hot Plug Hard Drive
NOTE: SAS HBA or array controller is required.
HP 36GB 3G SAS 15K 3.5" SP HDD
HP 72GB 3G SAS 15K 3.5" SP HDD
HP 72GB 3G SAS 15K 3.5" DP HDD
HP 146GB 3G SAS 15K 3.5" SP HDD
HP 146GB 3G SAS 15K 3.5" DP HDD
HP 300GB 3G SAS 15K 3.5" SP HDD
HP 300GB 3G SAS 15K 3.5" DP HDD
Serial-ATA (SATA) Hot Plug Hard Drive
HP 80GB 1.5G SATA 7.2K 3.5" HDD
HP 160GB 1.5G SATA 7.2K 3.5" HDD
HP 250GB 1.5G SATA 7.2K 3.5" HDD
HP 500GB 1.5G SATA 7.2K 3.5" HDD
HP 750GB 1.5G SATA 7.2K 3.5" HDD
NOTE: Please see the Hard Drive QuickSpecs for Technical Specifications such as capacity, height, width, interface, transfer rate, seek time, physical configuration, and operating temperature:
http://h18000.www1.hp.com/products/quickspecs/11940_div/11940_div.html (Worldwide)


Storage Controllers

SAS Controllers



Smart Array E200 Controller



HP Smart Array E200/128 BBWC Controller

128-MB BBWC (Battery-Backed Write Cache) Enabler
NOTE: Supports the Smart Array E200 Controller.

Smart Array E500 Controller

HP Smart Array E500/256MB Controller
Smart Array P400 Controller

HP Smart Array P400/256MB Controller

HP Smart Array P400/512MB BBWC Controller

Battery-backed write cache upgrade
NOTE: For Smart Array P400 Controller only.
512MB Battery-backed cache upgrade
NOTE: For Smart Array P400 Controller only.
Smart Array P800 Controller
HP Smart Array P800/512 BBWC Controller
NOTE: Please see the following QuickSpecs for Technical Specifications and additional information:
http://h18000.www1.hp.com/products/quickspecs/12460_div/12460_div.html
(Smart Array E200 Controller)
http://h18000.www1.hp.com/products/quickspecs/12700_div/12700_div.html
(Smart Array E500 Controller)
http://h18000.www1.hp.com/products/quickspecs/12400_div/12400_div.html
(Smart Array P400 Controller)
http://h18000.www1.hp.com/products/quickspecs/12616_div/12616_div.html
(Smart Array P800 Controller)
SAS HBA
HP SC44Ge Host Bus Adapter
HP 8 Internal Port SAS HBA with RAID
NOTE: Please see the HBA QuickSpecs for additional information:
http://h18004.www1.hp.com/products/quickspecs/12617_div/12617_div.html (SC44Ge HBA)
http://h18004.www1.hp.com/products/quickspecs/12332_div/12332_div.html
(8 Internal Port SAS HBA)
SCSI Controllers for External Drive/Storage Support
64-Bit/133-MHz Single Channel Ultra320 SCSI HBA G2
NOTE: If a Non-Hot Plug SCSI Tape Drive is selected in any model, then customer must add either 374654-B21 374654-B21 or 412911-B21 412911-B21.
SCSI HBA
HP SC11Xe Host Bus Adapter
NOTE: If a Non-Hot Plug SCSI Tape Drive is selected in any model, then customer must add either 374654-B21 374654-B21 or 412911-B21 412911-B21.
NOTE: Please see the following QuickSpecs for additional information:
http://h18004.www1.hp.com/products/quickspecs/11943_div/11943_div.html
(SCSI HBA)
http://h18000.www1.hp.com/products/quickspecs/12566_div/12566_div.html
(SC11Xe HBA)


Communications HP NC110T PCI Express Gigabit Server Adapter
HP NC360T PCI Express Dual Port Gigabit Server Adapter
HP NC364T PCI Express Quad Port Gigabit Server Adapter
HP NC373F PCI Express Multifunction Gigabit Server Adapter
HP NC373T PCI Express Multifunction Gigabit Server Adapter
HP NC380T PCI Express Dual Port Multifunction Gigabit Server Adapter
2006 Agere PCI high-speed international soft modem
EK694AA

Tape Drives

NOTE: For the complete listing of Tape Drive offerings, please see:
http://www.hp.com/products1/storage/compatibility/tapebackup/ISS/index.html

For recommended tape drive offerings for this ProLiant server see the following:


USB Tape Drives
HP StorageWorks DAT 160 USB Internal Tape Drive
Q1580A
SAS Tape Drives
NOTE: : For the ML310 G4, HP recommends purchasing the HP SC44Ge HBA (416096-B21 416096-B21) for a dedicated SAS HBA for tape.
HP StorageWorks DAT 160 SAS Internal Tape Drive
Q1587A
HP StorageWorks LTO-2 Ultrium 448 SAS Internal Tape Drive
DW085A
HP StorageWorks LTO-3 Ultrium 920 SAS Internal Tape Drive
EH847A
NOTE: Please refer to the "Tape Drives, Tape Autoloaders & Tape Libraries" table in the Storage section of this document for a list of SAS controllers with tape support.
SCSI Tape Drives
NOTE: For the ML310 G4, HP recommends purchasing the HP SC11Xe HBA (412911-B21 412911-B21) for a dedicated SCSI HBA for tape.
HP StorageWorks LTO-1 Ultrium 232 Internal Tape Drive (Carbonite)
HP StorageWorks LTO-2 Ultrium 448 SCSI Internal Tape Drive (Carbonite)
DW016A
HP StorageWorks LTO-3 Ultrium 920 SCSI Internal Tape Drive
EH841A
NOTE: Please see the HP StorageWorks Ultrium Tape Drive QuickSpecs for additional options such as controllers, media, and other related items:
http://h18006.www1.hp.com/products/quickspecs/11739_div/11739_div.html
(Worldwide)
http://h18006.www1.hp.com/products/quickspecs/12128_div/12128_div.html
(Worldwide)
For an up-to-date listing of the latest O/S and software support details for HP Ultrium tape drives, please visit: http://www.hp.com/go/connect.

Rack-Mount Tape Drive Enclosures
HP StorageWorks 1U SCSI Rack-Mount kit
NOTE: The 1U Rack-Mount Kit can support up to (2) half-height tape drives and is compatible with multiple Single-Ended and LVD SCSI tape drives including the DAT 40, DAT 72, DAT 160, DLT VS160, LTO-1 Ultrium 232, LTO-2 Ultrium 448 and LTO-3 Ultrium 920 tape drives.
HP StorageWorks 1U USB Rack-Mount Kit
NOTE: The 1U USB Rack-Mount Kit can support up to (2) half-height tape drives and is compatible with the DAT 40 USB, DAT 72 USB and DAT 160 USB tape drives.
HP StorageWorks 1U SAS Rack-Mount Kit
NOTE: The 1U SAS Rack-Mount Kit can support up to (2) half-height tape drives and is compatible with the LTO-2 Ultrium 448 SAS and LTO-3 Ultrium 920 SAS tape drives.
AE459A
NOTE: Please see the Rack-Mount Tape Drive Kits QuickSpecs for additional information regarding these kits:
http://h18000.www1.hp.com/products/quickspecs/10854_div/10854_div.html (Worldwide)


HP D2D Backup SystemHP StorageWorks D2D110 Backup System
NOTE: 1TB of Disk Storage
EH880A
HP StorageWorks D2D110 Backup System with Data Protector Express Software Kit
NOTE: 1TB of Disk Storage
EH923A
HP StorageWorks D2D120 Backup System
NOTE: 2TB of Disk Storage
EH884A
HP StorageWorks D2D120 Backup System with Data Protector Express Software Kit
NOTE: 2TB of Disk Storage
EH924A
NOTE: Please see the HP D2D Backup Systems QuickSpecs for additional information:
http://h18000.www1.hp.com/products/quickspecs/12651_div/12651_div.html
(Worldwide)


Tape Autoloaders
HP StorageWorks DAT Autoloader
HP StorageWorks DAT 72x10 tape autoloaderAE313B
HP StorageWorks 1/8 Tape Autoloader
HP StorageWorks 1/8 LTO-3 Ultrium 920 G2 Tape AutoloaderAH165A
HP StorageWorks 1/8 G2 LTO-3 Ultrium 920 SAS AutoloaderAH558A
HP StorageWorks 1/8 LTO-2 Ultrium 448 G2 Tape Autoloader AH164A
HP StorageWorks 1/8 LTO-1 Ultrium 232 G2 Tape Autoloader AH163A
HP StorageWorks 1/8 G2 Tape Autoloader Rack Kit
NOTE: Required to install the 1/8 G2 Autoloaders in a standard 19-inch rack; includes rails and rackmount instructions.
AH166A
NOTE: Please reference the Tape Autoloader QuickSpecs at http://www.hp.com/go/automation for additional information needed to create a complete solution; reference current compatibility information at: http://www.hp.com/go/ebs.

Tape Libraries

HP StorageWorks MSL2024 Tape Library
HP StorageWorks MSL2024 1 LTO-4 Ultrium 1840 SCSI Drive Library
AJ033A
HP StorageWorks MSL2024 1 LTO-4 Ultrium 1840 4GB FC Library
AJ034A
HP StorageWorks MSL2024 1 LTO-3 Ultrium 960 SCSI Drive Library
HP StorageWorks MSL2024 1 LTO-3 Ultrium 960 4GB FC Library
AG326B
HP StorageWorks MSL2024 1 LTO-3 Ultrium 920 SAS Drive Library
AH559A
HP StorageWorks MSL2024 1 LTO-3 Ultrium 920 SCSI Drive Library
AH169A
HP StorageWorks MSL2024 1 LTO-2 Ultrium 448 SCSI Drive Library AG116A AG116A
HP StorageWorks MSL4048 Tape Library
HP StorageWorks MSL4048 1 LTO-4 Ultrium 1840 SCSI Drive Library
AJ035A
HP StorageWorks MSL4048 1 LTO-4 Ultrium 1840 4GB FC Library
AJ036A
HP StorageWorks MSL4048 1 LTO-3 Ultrium 960 SCSI Drive Library
AG322A
HP StorageWorks MSL4048 1 LTO-3 Ultrium 960 4GB FC Library
AG324B
HP StorageWorks MSL4048 1 LTO-3 Ultrium 920 SAS Drive Library
AH560A
HP StorageWorks MSL4048 1 LTO-3 Ultrium 920 SCSI Drive Library
AH171A
HP StorageWorks MSL4048 1 LTO-2 Ultrium 448 SCSI Drive LibraryAG320A
HP StorageWorks MSL8096 Tape Library
HP StorageWorks MSL8096 2 LTO-4 Ultrium 1840 SCSI Drive LibraryAJ039A
HP StorageWorks MSL8096 2 LTO-4 Ultrium 1840 4GB FC LibraryAJ040A
HP StorageWorks MSL8096 2 LTO-3 Ultrium 920 SAS Drive LibraryAH561A
HP StorageWorks MSL8096 2 LTO-3 Ultrium 960 4GB FC LibraryAH218A
HP StorageWorks MSL8096 2 LTO-3 Ultrium 960 SCSI Drive LibraryAH219A
HP StorageWorks MSL6000 Tape Library
LTO-4 Ultrium 1840 technology
HP StorageWorks MSL6030 1 LTO-4 Ultrium 1840 SCSI Drive Library
AJ029A
HP StorageWorks MSL6030 1 LTO-4 Ultrium 1840 4GB FC Library
AJ030A
HP StorageWorks MSL6060 2 LTO-4 Ultrium 1840 SCSI Drive Library
AJ031A
HP StorageWorks MSL6060 2 LTO-4 Ultrium 1840 4GB FC Library
AJ032A
Ultrium 960 technology
HP StorageWorks MSL6030 1 LTO-3 Ultrium 960 SCSI Drive LibraryAD606B
HP StorageWorks MSL6030 1 LTO-3 Ultrium 960 4GB FC LibraryAD608B
HP StorageWorks MSL6030 2 LTO-3 Ultrium 960 SCSI Drive LibraryAD607B
HP StorageWorks MSL6030 2 LTO-3 Ultrium 960 4GB FC Library AD609B
NOTE: Please reference the MSL2024, MSL4048 and MSL6000 Tape Library QuickSpecs at: http://www.hp.com/go/automation for additional information needed to create a complete solution; reference current compatibility information at: http://www.hp.com/go/ebs.

Uninterruptible Power Systems – Tower

HP T500 UPS 120 V (US)
361475-001
HP T750 UPS, Low Voltage (NA/JPN)
378439-D71
HP T750 UPS, High Voltage (INTL)
378439-B31
HP, T1000 UPS NA
AF403A
HP, T1000 UPS JPN
AF404A
HP, T1000 UPS INTL
AF405A
HP, T1500 UPS NA
AF406A
HP, T1500 UPS JPN
AF407A
HP, T1500 UPS INTL
AF408A
HP, R/T 2200 UPS NA
AF409A
HP, R/T 2200 UPS JPN
AF410A
HP, R/T 2200 UPS INTL
AF411A

Rack Kits

ProLiant Rack Enabling Kit (RoHS Compliant)
417705-B21
NOTE: The system and optional Tower-to-Rack tray occupy 6U.
NOTE: Support for racks with round or square mounting holes (including all Compaq and HP Rack System /E and HP Systems), with an adjustment range of 24" - 36".


USB Options HP USB-P/S2 Optical Mouse DC369A
USB 1.44-MB External Diskette Drive (Carbonite) DC141B
HP 1GB USB 2.0 Floppy Drive Key 442085-B21
HP 256MB USB 2.0 Floppy Drive Key 442084-B21
HP USB 04 Standard Keyboard
DT528A#ABA

Service and Support Offerings (HP Care Pack Services)
Hardware Services On-site Service
Next Business Day On-site Service, 5-Day x 9-Hour Coverage, 3 Years, Electronic
U4445E
4-Hour On-site Service, 5-Day x 13-Hour Coverage, 3 Years, Electronic
U4446E
4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic
U4447E
6-Hour Call to Repair, On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic
U4448E
Installation & Start-up Services
Hardware Installation, Electronic
U4456E
Installation & Start-Up of a ProLiant server and Microsoft or Linux O/S per the Customer Description and/or Data Sheet. To be delivered on a scheduled basis 8am-5pm, M-F, excl. HP holidays, Electronic
U4457E
Support Plus
Onsite HW support, 8am-9pm, M-F, 4hr response and Microsoft O/S SW Tech support offsite, onsite at HP's discretion, 8am-9pm, M-F 2hr response time excl. HP holidays, Electronic
U4458E
Support Plus 24
Onsite HW support 24x7, 4hr response and Microsoft O/S SW Tech support offsite, onsite at HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic
U4459E
Onsite HW support 24x7, 4hr response and SuSE Linux SW Tech support offsite, onsite at HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic

U6306E

Onsite HW support 24x7, 4hr response and Red Hat ES Linux SW Tech support offsite, onsite at HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic
U8328E
NOTE: For more information, customer/resellers can contact http://www.hp.com/services/carepack.
contents
 Overview      Standard Features      Models      Configuration Information - Factory Integrated Models      ML310 G4 Options      ML310 G4 Memory      Storage      ML310 G4 QuickSpecs images/line.gif (50 bytes)

Memory

NOTE: Memory configurations listed do not apply to "Factory Integrated Models".

HP ProLiant ML310 G4 Memory Configuration

Standard Memory
All HP ProLiant ML310 G4 models ship with unbuffered, ECC PC2-5300 DDR2 SDRAM running at 667MHz.
SATA/SAS models include a single 512 MB DIMM. SAS models include a single 1GB DIMM.
Factory Integrated Models include the memory capacity of your choice.

Standard Memory Replaced with Optional Memory
Up to 8 GB memory is available with the optional installation of four 2 GB PC2-5300 Unbuffered ECC DDR2 SDRAM DIMM kits.



DIMM upgrades do not need to be installed in pairs although installation of pairs (an equal size DIMM for each channel) provides the best performance. The BIOS will detect the DIMM population and initialize the system accordingly as follows:

  • Single-channel mode - DIMMs installed for one channel only
  • Dual-channel asymmetric mode - DIMMs installed for both channels but of unequal channel capacities.
  • Dual-channel interleaved mode (recommended) - DIMMs installed for both channels and offering equal channel capacities, providing the highest performance.

The first DIMM should be installed in Socket 1. A DIMM should not be installed in Socket 2 without a DIMM in Socket 1. Likewise a DIMM should not be installed in Socket 4 without a DIMM in Socket 3. A DIMM need not be installed in Socket 2 in order to install a DIMM in Socket 3.

Table 3-1 shows some of the suggested memory configurations for these systems.
NOTE: Table 3-1 does not list all possible configurations. Balanced-capacity, dual-channel loading yields best performance.

Channel A

Channel B

Total

Mode

Socket 1Socket 2

Socket 3

Socket 4

512 MB

none
none
none
512 MB
Single-channel
512 MB
none
512 MB
none
1 GB
Dual-channel interleaved
1 GB
none
none
none
1 GB
Single-channel
1 GB
none
1 GB
none
2 GB
Dual-channel interleaved
1 GB
1 GB
1 GB
none
3 GB
Dual-channel asymmetric
1 GB
1 GB
1 GB
1 GB
4 GB
Dual-channel interleaved
1 GB
2 GB
1 GB
2 GB
6 GB
Dual-channel interleaved
2 GB
2 GB
2 GB
2 GB
8 GB
Dual-channel interleaved
contents
 Overview      Standard Features      Models      Configuration Information - Factory Integrated Models      ML310 G4 Options      ML310 G4 Memory      Storage      ML310 G4 QuickSpecs images/line.gif (50 bytes)

Storage

B, C
Removable Media Bays (1.6" each)
A
48x IDE (ATAPI) CD-ROM
1 - 4
Four Hot Plug Hard Drive Bays



Drive Support




Quantity
Supported

Position
Supported


Controller

Removable Media


1.44-MB Diskette DriveUp to 1 A, B, or C Integrated
IDE (ATAPI) CD-ROM DriveUp to 2 A, B, or C Integrated IDE (ATAPI)
DVD-ROM Drive Option KitUp to 2 A, B, or C Integrated IDE (ATAPI)

Hard Drives

Hot Plug SAS


Quantity
Supported

Position
Supported


Controller

300GB 3G SAS 15K SP
300GB 3G SAS 15K DP
146GB 3G SAS 15K SP
146GB 3G SAS 15K DP
72GB 3G SAS 10K SP
72GB 3G SAS 15K DP
36GB 3G SAS 10K SP

Up to 4
1-4
HP 8 Internal Port SAS HBA with RAID
Smart Array E200/128 BBWC Controller
Smart Array E500/256MB Controller
Smart Array P400/256MB Controller
Smart Array P400/512MB BBWC Controller
NOTE: Use of SAS hard drives in SATA/SAS models requires installation of one of the controllers or HBAs listed above.

Hot Plug SATA


Quantity
Supported

Position
Supported


Controller

750GB 1.5G SATA 7.2K
500GB 1.5G SATA 7.2K
250GB 1.5G SATA 7.2K
160GB 1.5G SATA 7.2K
80GB 1.5G SATA 7.2K

Up to 4
1-4

Embedded SATA with integrated SATA RAID 0,1
HP 8 Internal Port SAS HBA with RAID
Smart Array E200/128 BBWC Controller
Smart Array E500/256MB Controller
Smart Array P400/256MB Controller
Smart Array P400/512MB BBWC Controller

NOTE: Hot plug capability and drive LED status support requires installation of one of the controllers or HBAs listed above.

Tape Drives, Tape Autoloaders, Tape Libraries & D2D Backup

NOTE: For an up-to-date listing of the latest O/S Support details for each of the Tape Drives listed below, please see the following:
http://h18000.www1.hp.com/products/quickspecs/division/10233.html (Worldwide)

NOTE: For an up-to-date listing of the latest O/S Support details for each of the Tape Autoloaders and Tape Libraries listed below, please see the following:
http://h18000.www1.hp.com/products/quickspecs/division/10809.html (Worldwide)

NOTE: For complete listing of tape drive offerings see http://www.hp.com/products1/storage/compatibility/tapebackup/ISS/index.html

NOTE: SAS Tape Drives: Connecting hard drive cage and SAS tape to the same SAS Controller using split cable (supplied with tape drive) deactivates 1 of the hard drive bays. Actual hard drive bay deactivated depends on where split cable plugs into SAS drive connector. Example: 3x SAS cable connector plugged into SAS drive connector (5-8) on the back of the hard drive cage would mean drive bay 8 is deactivated.


Position
Supported
Controller

Controller Part Number

Internal USB Tape Drives
DAT 40 USB
DAT 72 USB
DAT 160 USB
B or CUSB 2.0 PortN/A


USB Tape Drives, External
DAT 40 USB
DAT 72 USB
DAT 160 USB
1U Rack-Mount Kit
ExternalUSB 2.0 PortN/A

SCSI Tape Drives, Internal
LTO-1 Ultrium 232
LTO-2 Ultrium 448
LTO-3 Ultrium 920
DAT 40
DAT 72
DAT 160
DLT VS160
B or CHP SC11Xe Host Bus Adapter412911-B21 412911-B21

SCSI Tape Drives, Internal
LTO-3 Ultrium 960
LTO-4 Ultrium 1840
SDLT 600
Rackmount onlyHP SC11Xe Host Bus Adapter412911-B21 412911-B21

SCSI Tape Drives, External
LTO-1 Ultrium 232
LTO-2 Ultrium 448
LTO-2 Ultrium 460
LTO-3 Ultrium 960
LTO-3 Ultrium 920
LTO-4 Ultrium 1840
DAT 40
DAT 72
DAT 160
DLT VS160
SDLT 600
1U Rack-Mount Kit
3U Rack-Mount Kit
ExternalHP SC11Xe Host Bus Adapter412911-B21 412911-B21

SAS Tape Drives, Internal
DAT 160 SAS
LTO-2 Ultrium 448 SAS
LTO-3 Ultrium 920 SAS

B or CHP SC44Ge Host Bus Adapter
NOTE: Recommended.
416096-B21 416096-B21
HP 8 Internal Port SAS HBA with RAID347786-B21 347786-B21
HP Smart Array E500 Controller435129-B21 435129-B21
NOTE: The following SAS Smart Array controllers require ROM Flash version 2.04 or higher for SAS tape support:
HP Smart Array P400/256MB Controller405132-B21 405132-B21
HP Smart Array P400/512MB Controller411064-B21 411064-B21
NOTE: Please visit: http://www.hp.com/go/connect for details about minimum SAS controller firmware version and SAS cabling requirements.

SAS Tape Drives, Internal
LTO-4 Ultrium 1840 SAS

Rackmount onlyHP SC44Ge Host Bus Adapter
NOTE: Recommended.
416096-B21 416096-B21
HP 8 Internal Port SAS HBA with RAID347786-B21 347786-B21
HP Smart Array E500 Controller435129-B21 435129-B21
NOTE: The following SAS Smart Array controllers require ROM Flash version 2.04 or higher for SAS tape support:
HP Smart Array P400/256MB Controller405132-B21 405132-B21
HP Smart Array P400/512MB Controller411064-B21 411064-B21
NOTE: Please visit: http://www.hp.com/go/connect for details about minimum SAS controller firmware version and SAS cabling requirements.


SAS Tape Drives, External
DAT 160 SAS
LTO-2 Ultrium 448 SAS
LTO-3 Ultrium 920 SAS
LTO-4 Ultrium 1840 SAS
1U Rack-Mount Kit
3U Rack-Mount Kit
ExternalHP SC44Ge Host Bus Adapter
NOTE: Recommended.
416096-B21 416096-B21
HP Smart Array E500 Controller435129-B21 435129-B21

SCSI Tape Automation, External
DAT 72x10 Autoloader 1/8 G2 Autoloader
MSL2024
MSL4048
MSL8096
MSL6000
External
HP SC11Xe Host Bus Adapter
412911-B21 412911-B21
HP U320e SCSI Host Bus Adapter
NOTE: Only valid for MSL tape libraries.
AH627A AH627A

SAS Tape Automation, External
1/8 G2 Autoloader
MSL2024
MSL4048
MSL8096
External
HP SC44Ge Host Bus Adapter
416096-B21 416096-B21
NOTE: Please visit: http://www.hp.com/go/connect for details about minimum SAS controller firmware version and SAS cabling requirements.

Fibre Tape Automation, External
MSL2024
MSL4048
MSL8096
MSL6000
ExternalPlease consult the EBS connectivity matrix at: http://www.hp.com/go/ebs for detailed connectivity information. N/A

HP StorageWorks D2D Backup Systems
D2D110
D2D120
ExternalEmbedded Network ControllerN/A
contents
 Overview      Standard Features      Models      Configuration Information - Factory Integrated Models      ML310 G4 Options      ML310 G4 Memory      Storage      ML310 G4 QuickSpecs images/line.gif (50 bytes)

Quickspecs

System UnitDimensions (HxWxD)17.0 x 7-7/8 x 22 in (43.0 x 20.0 x 55.0 cm)
Weight
(no drives installed)
17.9 kg (39.5 lbs)
Ready steady state power3.3 V/ 5V 110W

12 V CPU 300W


Maximum peak power410W (non-redundant non-hot plug)

430W (redundant hot-plug)


Input Requirements
(per power supply)
Range Line Voltage 88-269VAC
Normal Line Voltage100 to 240 VAC
Line Frequency 47 to 66 Hz
Rated Input Current6.4A RMS max at 100VAC with maximum load;
3.2A RMS max at 230V with maximum load
BTU Rating1,560 BTU
Ultra 320 SCSI ConnectorsNone
NOTE: Support for either one internal or one external SCSI channel is available. To use the channel for external connection, order an internal-to-external SCSI cable option kit (PN 159547-B22 or 333370-B21).
Power Supply Output PowerRated Steady-State Power350W
Maximum Peak Power410W
Power Supply Output Power - RPS Rated Steady-State Power350W
Maximum Peak Power 430W
Temperature RangeOperating50° to 95° F (10° to 35° C)
Shipping-40° to 160° F (-40° to 71° C)
Relative Humidity
(non-condensing)
Operating20% to 80%
Non-operating5% to 95%
Acoustic Noise Idle
(Fixed Disk Drives Spinning)

L WAd (BELS)
5.4
L pAm (dBA)
34
Operating
(Random Seeks to Fixed Disks)

L WAd (BELS)
5.4
L pAm (dBA)
34
Acoustic Noise - RPSIdle
(Fixed Disk Drives Spinning)

L WAd (BELS)
5.2
L pAm (dBA)
37.8
Operating
(Random Seeks to Fixed Disks)

L WAd (BELS)
5.3
L pAm (dBA)
39.6

48X Max IDE (ATAPI)
CD-ROM Drive

Disk

Applicable Disk

CD-ROM, CD-XA, CD-DA (Mode 1, Mode 2, Form 1 and 2)
Photo CD (Single and Multi-session)
Mixed Mode (Audio and Data combined)
CD-R

Capacity

540 MB (Mode 1, 12 cm)
650 MB (Mode 2, 12 cm)

Block Size

Mode 1

2,048 bytes

Mode 2

2,340 bytes, 2,336 bytes

CD-DA

2,352 bytes
CD-XA2,328 bytes

Interface

IDE (ATAPI)



Access Times (typical)

Random

<100 ms

Full-Stroke

<150 ms

Data Transfer Rate

Sustained

3000 to 7200 KB/s (20X to 48X)
Burst150 KBps to 7,200 KBps

Bus Rate

16.7 MBps

Cache Buffer

128 KB



Start-up Time (typical)

< 7seconds


Stop Time< 4seconds

Laser Parameters

TypeSemiconductor Laser GaA1As

Wave Length

780 ± 25 nm

Operating Conditions

Temperature

41° to 113° F (5° to 45° C)

Humidity

10% to 80%

Dimensions

(HxWxD, maximum)

1.7 x 5.85 x 8.11 in (4.29 x 14.86 x 20.60 cm)

Weight

2.09 lb (0.95 kg)

HP 8 Internal Port SAS Host Bus Adapter with RAID

RAID SupportRAID 1 (Mirroring)
RAID 0 (Striping)
Logical Drives SupportedUp to 2 Logical Volumes
Up to 10 drives total in all RAID volumes
Up to 2 Drives per RAID 1
Up to 8 Drives per RAID 0
Maximum Capacity576GB (8 x 72GB)
Data Transfer Method64-bit wide, PCI-X 133 MHz (1 GB/s maximum bandwidth)
Port Transfer Rate12 Gb/s per x4 Wide SAS Port (4 x 3 Gb/s)
Simultaneous Drive Transfer Ports2 x4 Wide SAS Connectors

Protocols

3 Gbps SAS (Serial Attached SCSI)
1.5 Gbps SATA (Serial Advanced Technology Attachment)

External SAS Connectors

None

Internal SAS Connectors2 internal SFF8484 x4 SAS Connectors
Upgradeable Firmware4MB flashable ROM

Embedded NC320i PCIe Gigabit Server Adapter

Network Interface 10Base-T/100Base-TX/1000Base-TX
Compatibility IEEE 802.3 10Base-T
IEEE 802.3ab 1000Base-T
IEEE 802.3u 100Base-TX
Data Transfer Method Single lane (x1), 100MHz PCI Express Reference Clock
Network Transfer Rate 10Base-T (Half-Duplex) 10 Mb/s
10Base-T (Full-Duplex) 20 Mb/s
100Base-TX (Half-Duplex) 100 Mb/s
100Base-TX (Full-Duplex) 200 Mb/s
1000Base-TX (Half and Full-Duplex) 2000Mb/s
Connector RJ-45
Cable Support 10Base-T Categories 3, 4 or 5 UTP; up to 328 ft (100 m)
10/100/1000Base-TX Category 5 UTP; up to 328 ft (100 m)

Environment-friendly Products and Approach End-of-life Management and Recycling

Hewlett-Packard offers end-of-life HP product return, trade-in, and recycling programs in many geographic areas. For trade-in information, please go to http://www.hp.com/go/green. To recycle your product, please go to: http://www.hp.com/go/green or contact your nearest HP sales office. Products returned to HP will be recycled, recovered or disposed of in a responsible manner.

The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard web site at: http://www.hp.com/go/green. These instructions may be used by recyclers and other WEEE treatment facilities as well as HP OEM customers who integrate and re-sell HP equipment.


Toll Free: 866.252.9743            Ph: 613.599.1287            Fax: 613.599.8120
Servers | Blades | All Hard Drives | U320 Drives | SAS/SATA Drives | Memory | Controllers | Processors | Tape Drives | Power Supplies | Misc
Home | Shopping Cart | Delivery | Forgot Password | Order By Phone | Create an Account | Add to favorites

 Controllers                        LegalPrivacy | | Backup SiteContact us | Site Problem?  |  Controllers           Controllers           Controllers
Controllers Hard Drives SAS Hard Drives u320 Hard Drives u320 Hard Drives2 processors processors2 memory tape drives Misc ipphones servers blades power supplies
